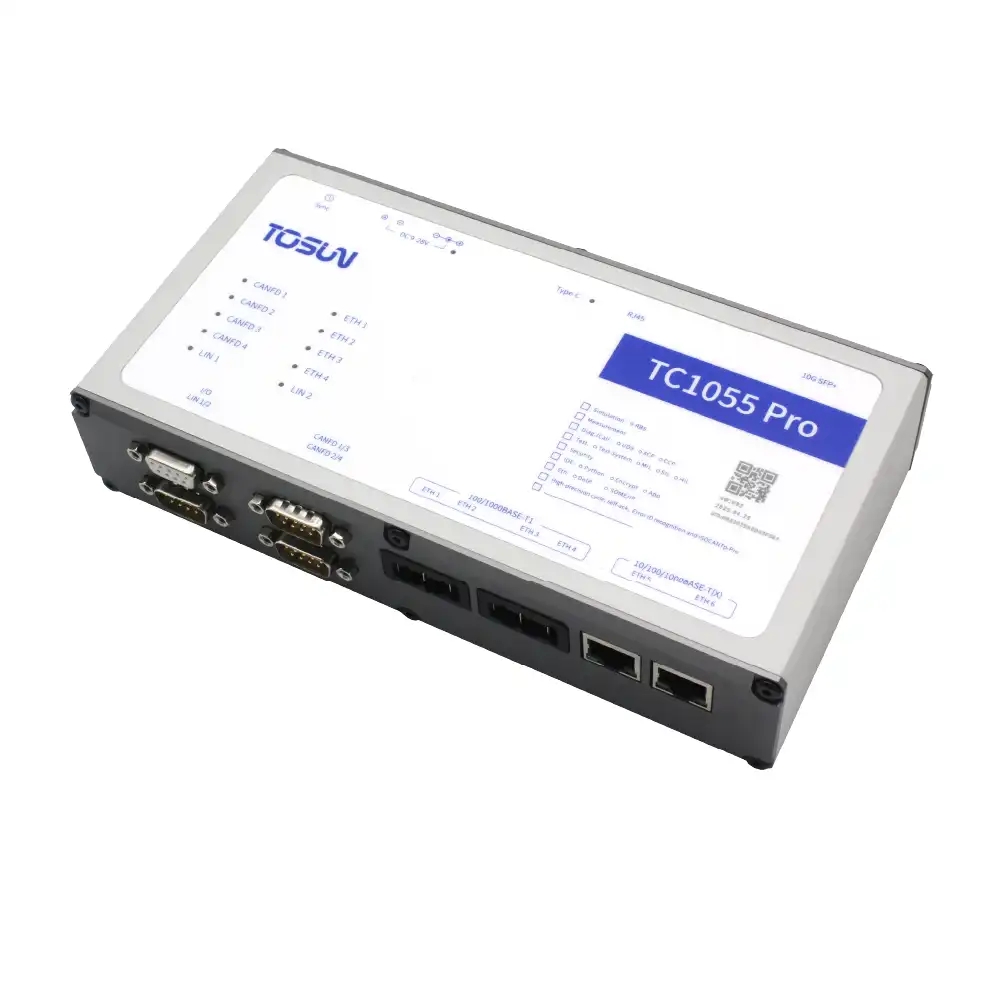

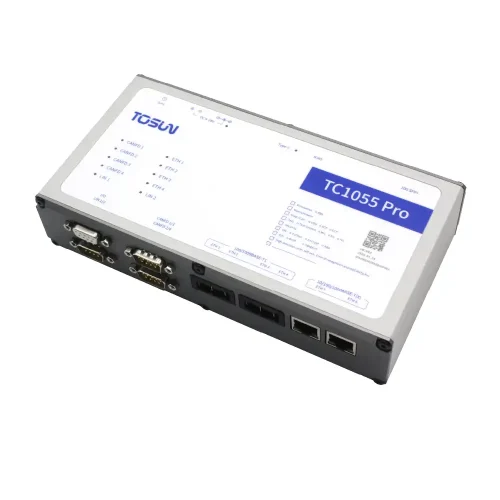

TC1055Pro – Automotive Ethernet / CAN FD / LIN Simulation Test Tool

It features four CAN channels with adjustable bit rates from 125 kbps to 1 Mbps under the classical CAN protocol, and up to 5 Mbps under CAN FD. Two LIN channels support both master and slave configurations via software and operate at bit rates ranging from 0 to 20 kbps. For Automotive Ethernet, it provides four T1 channels supporting 100/1000Base-T1, and two standard Ethernet channels supporting 100Base-TX/1000Base-T, with software-selectable modes. Bypass mode is also supported to ensure network continuity and reliability in specific test scenarios.

To guarantee high-speed and reliable data throughput, the TC1055 Pro connects to the PC via Gigabit Ethernet, 10 Gigabit Ethernet, or USB 3.0. These interfaces eliminate communication bottlenecks during high-volume bus traffic processing. The interface is driver-free for both Windows and Linux, offering broad system compatibility and ease of integration.

When paired with the powerful TSMaster software, the TC1055 Pro enables users to load and utilize database files in DBC, LDF, XML, and ARXML formats. It supports comprehensive monitoring, analysis, and simulation of bus traffic, and offers advanced functionalities such as UDS diagnostics, ECU flashing, CCP/ XCP calibration, DoIP, and SOME/IP communication.

• μs (microsecond) level hardware message timestamps to meet advanced requirements
• Driverless design for Windows and Linux systems
• Support for DIDO (Digital Input/Output) and AIAO (Analog Input/Output)
• Configurable CAN bit rate from 125 Kbps to 1 Mbps; CAN FD supports up to 5 Mbps
• LIN master/slave node configuration via software
• Ethernet link state indication for Automotive Ethernet channels
• Automotive-grade design, supports Ethernet frame parsing from ARXML files in TSMaster
• Software-configurable 120Ω termination resistors for CAN channels
• Supports BLF and ASC data recording formats, with online.offline playback functionality
• Supports DoIP and SOME/IP protocols
• Bypass mode for Automotive Ethernet
• Hardware time synchronization across multiple devices

• Data replication function – Supports mirroring of RX data traffic on ETH1–4 ports. After connecting to a PC, packet capture and analysis can be performed using Wireshark.
• High Speed and Scalability – Supports 10 Gbps transmission rates with greater scalability potential, enabling customized development according to customer requirements.
• Hot-swap design – Supports hot-swapping without affecting system stability or normal operation.
