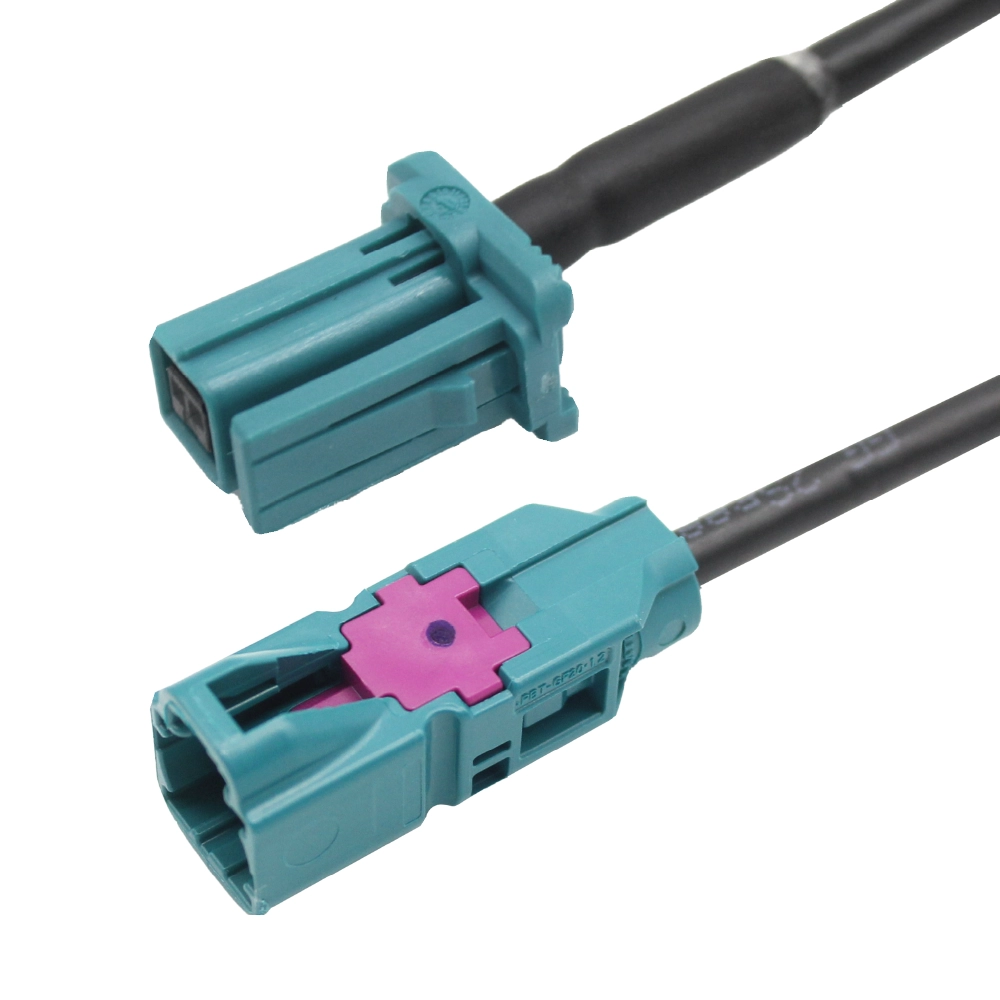

Ethernet Cable – Rosenberger MATEnet Female to H-MTD Female
Technical Requirements:

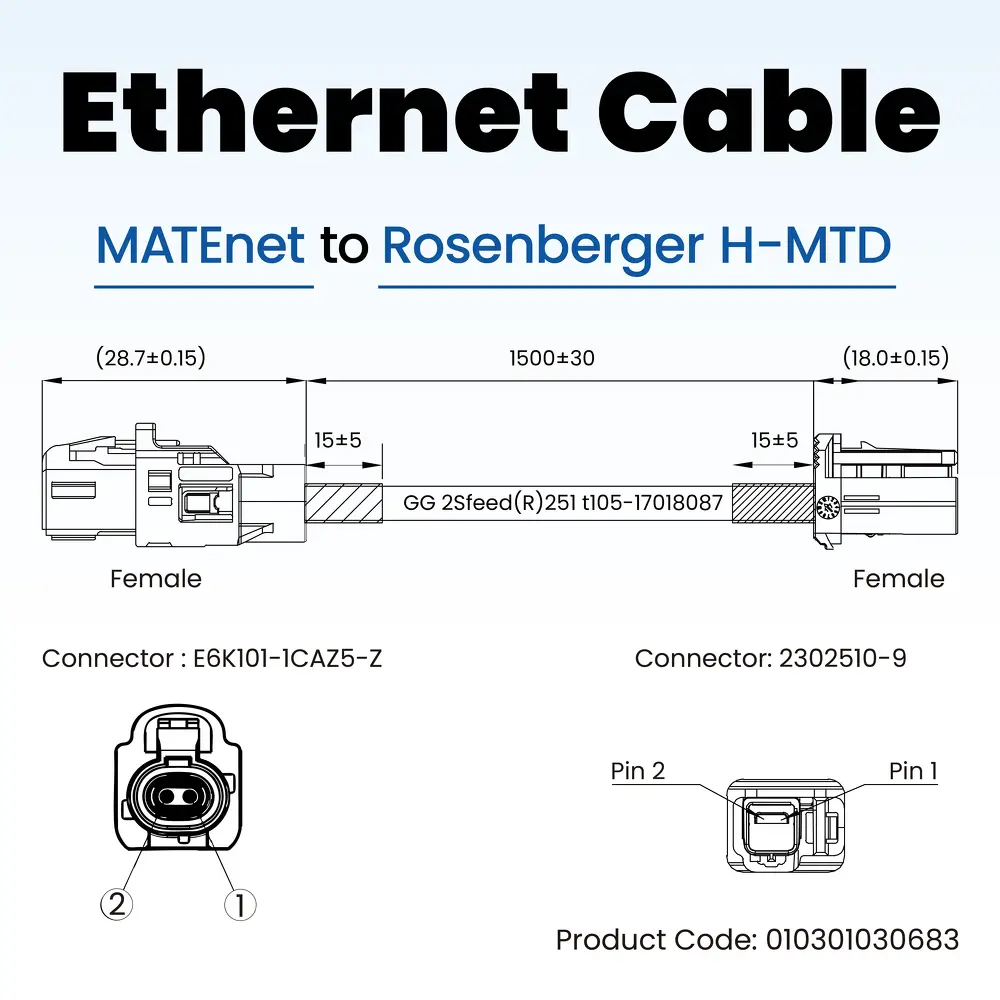

- Length: 1500±30mm
- MATEnet Female to H-MTD Female
Support:
Related Products
Ethernet Cable - MATEnet to H-MTD Functions and parameters
- Connector 1 Model: E6K101-1CAZ5-Z ,Z-clip, aqua blue
- Connector 2 Model: 2302510-9 ,Z-clip, aqua blue
Electrical Performance
| Insulation resistance | ≥10M Ω |
| Contact resistance | ≤2 Ω |
| Frequency range | DC 20 GHz |
| Withstanding voltage test | AC 500V min |
Mechanical Performance
| Axial pull-out force | ≥110 N |
| Operating temperature | -40°C ~ 105°C |
Typical applications
Specification
Caution! Avoid Short Circuits Before using the equipment, carefully review the pin information in the product user manual.
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
Caution! Damage from Electrostatic Discharge (ESD) Beware! Electrostatic discharge (ESD) can potentially damage or destroy components on the card. Take preventive measures to avoid ESD and protect the components.
