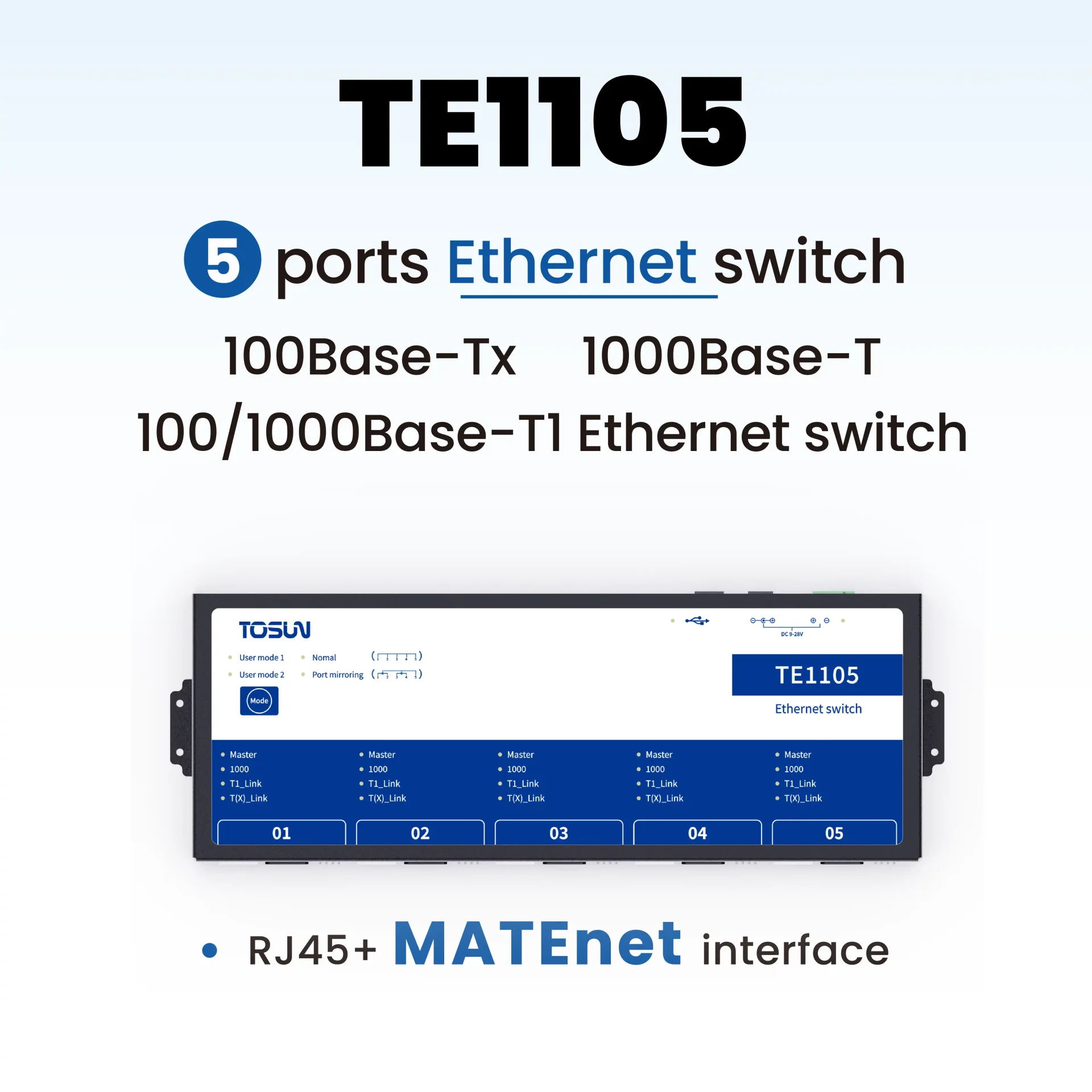

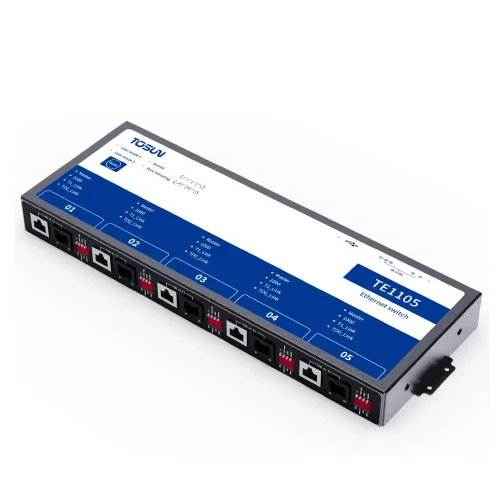

100/1000Base-Tx/T/T1 Ethernet switch – TE1105
SKU : TE1105
TE1105 is a 5-port Ethernet switch capable of enabling interaction and packet monitoring functions between selected ports of standard Ethernet 100Base-Tx/1000 Base-T or vehicle Ethernet 100/1000Base-T1 and the terminal network.
Datasheet
UserManual
Related Products
Related products
TE1105 Functions and parameters
It supports IEEE 802.1q (VLAN) mode, along with MAC filtering during mirroring, IEEE802.1Qav AVB traffic shaping, and IEEE802.1Qat time scheduling.
TE1105 Will be the ideal low-cost converter tool between the 100 / 1000Base-T1 Automotive Ethernet and PC systems. Suitable for R & D personnel, ECU production line, test engineers, after-sales engineers, etc.
- 5 ports 100Base-Tx/1000Base-T and 100/1000Base-T1, switchable via software at anytime
- Automotive ethernet interfaces: TE MATEnet and Rosenberger H-MTD
- Supports Ethernet packet forwarding and monitoring modes
- Supports 2 customizable configurations, allowing for VLAN definition, TSN time scheduling, AVB traffic shaping, port filtering rules, etc. (Customization to be discussed with the manufacturer)
- Mirror function: Allows packet mirroring between two channels of vehicle Ethernet
- Pass-through function: Directly transmits packets from vehicle Ethernet to PC via RJ45
- LED indicators displaying vehicle/standard Ethernet operational status
- LED indicators displaying system status, including rate, master/slave, and USB status
Typical applications
- Automotive ethernet message forwarding
- Automotive ethernet monitoring and analysis
- Automotive ethernet communication testing
- Various test benches
Specification
| Channel | 5 ports 100Base-Tx/1000Base-T and 100/1000Base-T1 Ethernet interface |
|---|---|
| Ethernet End | RJ45 with TE MATEnet or Rosenberger H-MTD |
| Isolation | Network transformer/capacitor isolation |
| Power supply | DC 9-32V |
| Dimensions | 300 x 120 x 30 mm |
| Operating Temperature | -40℃ to 80℃ |
| Enclosure Material | Aluminum |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
