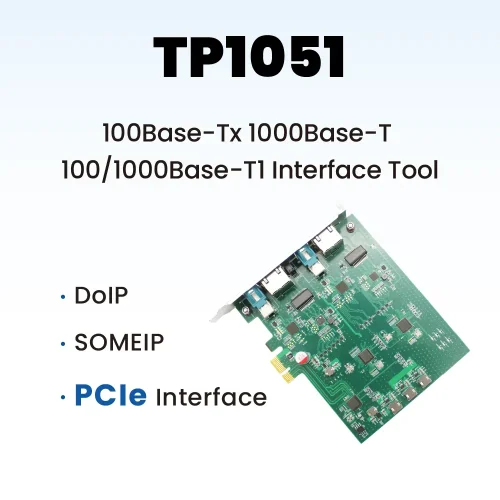

100/1000Base-Tx/T/T1 Interface Tool – TP1051
SKU : TP1051

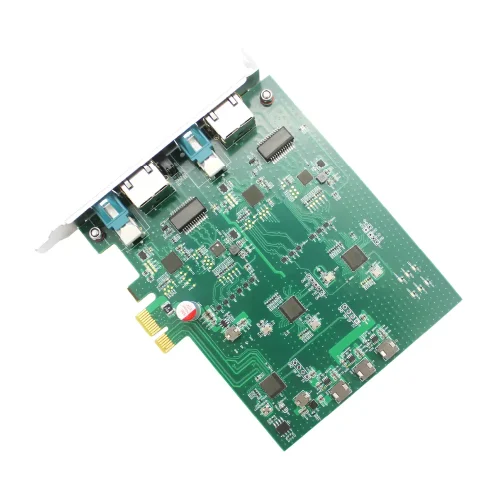

TP1051 is a tool that serves as a 2 channel Ethernet to PCIe interface. Additionally, it supports functionalities such as DoIP and SOMEIP.
Datasheet
UserManual
Related Products
Related products
TP1051 Functions and parameters
Users can transmit data in one of the modes, including standard Ethernet 100Base-Tx, 1000Base-T, or in-vehicle Ethernet 100/1000Base- T1, through the PCIe interface to a PC. This allows for the simulation, analysis, and testing of Ethernet data using TSMaster software. Additionally, TP1051 supports functionalities such as DoIP and SOMEIP.
TP1051 enables computers with PCIe slots to conveniently connect to in-vehicle Ethernet networks. It has a compact size and can be easily integrated into in-vehicle industrial computers, single – board computers (SBCs), portable industrial hosts, and industrial notebooks. The installation is convenient, and the usage is straightforward.
- 2 channels supporting 100Base-Tx, 1000Base-T, and 100/1000Base-T1, switchable at any time through software
- Automotive ethernet interface options: TE MATEnet or Rosenberger H-MTD
- Automotive-grade design, supports loading ARXML files in TSMaster for parsing in-vehicle Ethernet messages
- Supports DoIP and SOME/IP
- Comes with Windows secondary development API interface, supporting Ethernet message RAW format reception, transmission with timestamps, transmission completion events, CRC modification hardware MAC filtering, and sub-device software VLAN filtering

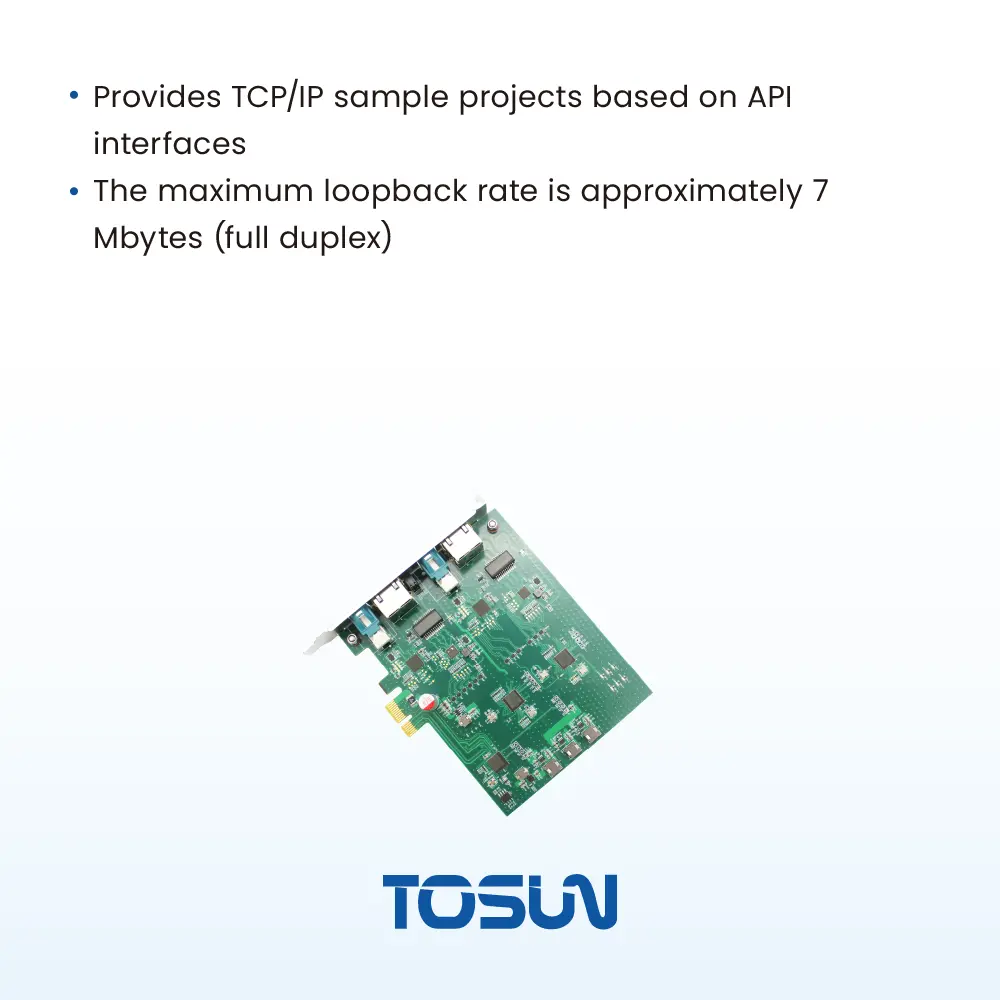

- Provides TCP/IP example projects based on API interface and lwIP protocol stack for easy secondary development
- Loopback maximum rate approximately 7 megabytes (full-duplex)
Typical applications
- Automotive ethernet remaining bus simulation
- Automotive ethernet data monitoring and analysis
- Automotive ethernet communication testing
- ECU flashing based on DoIP
Specification
| Channel | Standard Ethernet 100Base-Tx, 1000Base-T, or in-vehicle Ethernet 100/1000Base-T1 |
|---|---|
| PC End | Standard PCIe interface |
| Ethernet Interface | RJ452 and TE MATEnet2 or Rosenberger H-MTD2 |
| Driver | Plug-and-play design for Windows 7/10/11 systems |
| Timestamp | 1μs hardware message timestamp |
| Isolation | Network transformer/capacitor isolation |
| Power supply | Powered through PCIe port |
| Operating Temperature | -40℃ to 80℃ |
| Dimensions | 128 x 98 x 21.5mm |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
