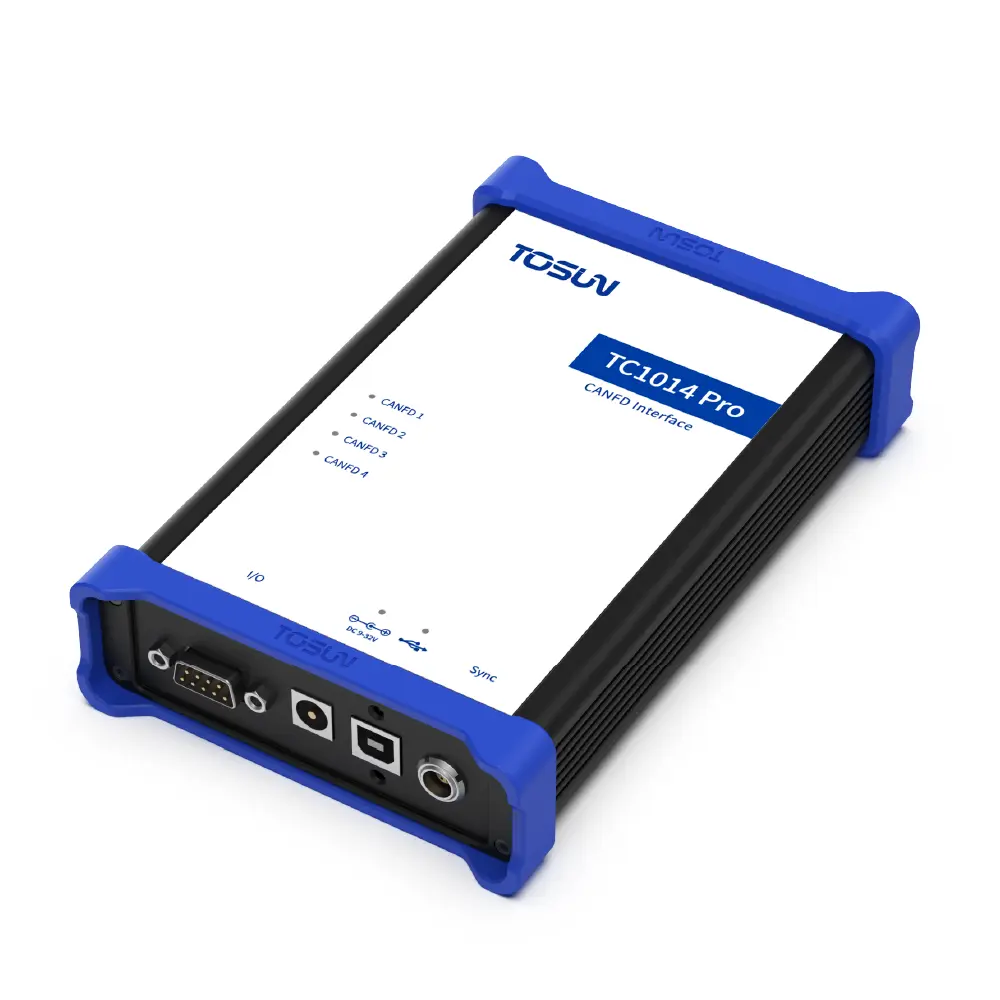

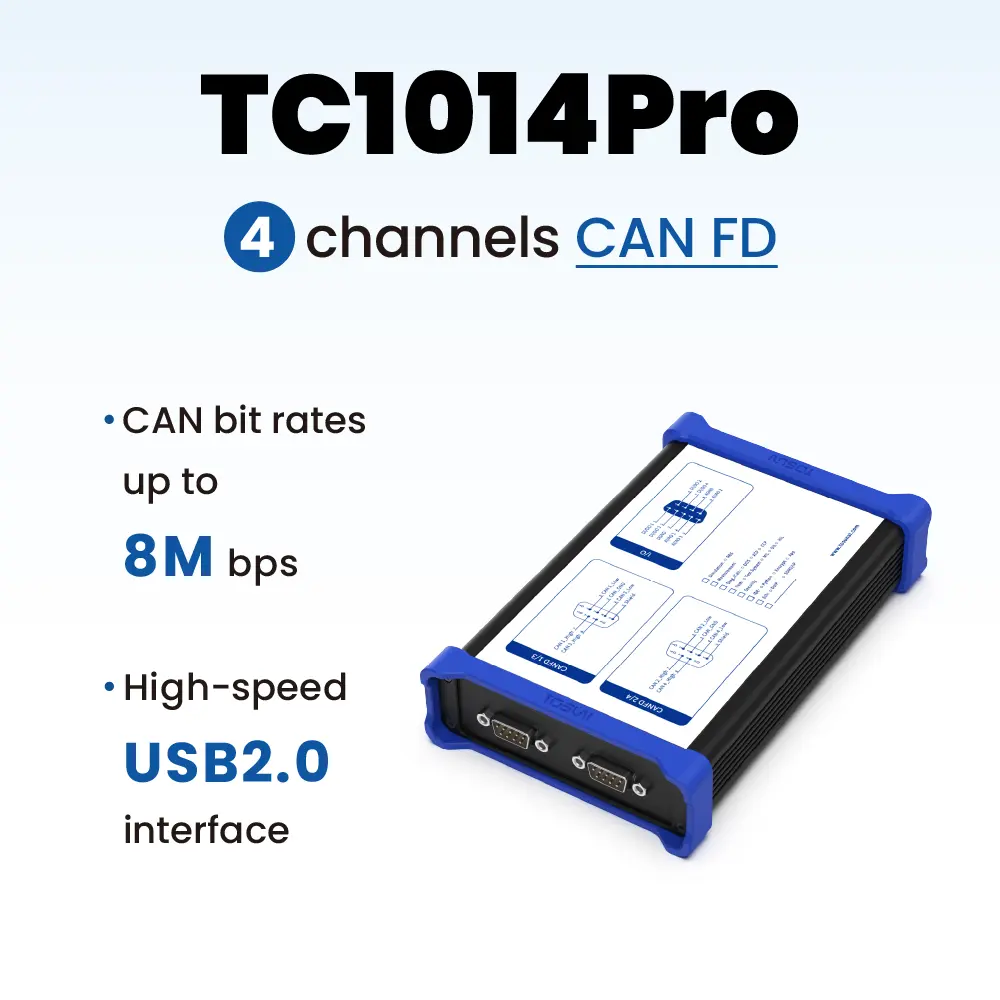

TC1014 Pro – 4 channel CAN FD bus and I/O interface device
The TC1014 Pro is a 4-channel CAN FD bus and I/O interface device with a maximum bus rate of up to 8 Mbps. It connects to a PC via USB 2.0 and features a driver-free design for Windows, ensuring excellent system compatibility.
- ARM64 Linux: tsdev
- HarmonyOS: tsdev
Related Products
Related products
TC1014Pro Functions and parameters
When paired with the powerful TSMaster software, the TC1014 Pro enables users to load and utilize database files in DBC and ARXML formats. It supports comprehensive monitoring, analysis, and simulation of CAN FD bus traffic, and offers advanced functionalities such as UDS diagnostics, ECU flashing, CCP/XCP calibration.
The TC1014 Pro supports secondary development through APIs available for both Windows and Linux platforms. It is compatible with various development environments such as C++, C#, LabVIEW, and Python, enabling seamless integration into a wide range of test systems with high efficiency and usability.
- μs (microsecond) level hardware message timestamps to meet advanced requirements
- CAN channel DC 2500 V isolation
- CAN channel baud rate adjustable from 125 Kbps to 1 Mbps, and CAN FD supports a maximum of 8 Mbps
- Built-in 120-ohm terminal resistor for CAN, with the resistance value configurable through software
- CAN supports Self-ACK self-acknowledgment configuration
- Supports blf and asc format data recording and offline/online playback
- Supports hardware time synchronization across multiple device
- Provides API-based sample projects for easy secondary development
CAN FD 1/3
- PIN 2 CAN FD 1_Low
- PIN 3 CAN FD_GND
- PIN 4 CAN FD 3_Low
- PIN 5 CAN FD_Shield
- PIN 7 CAN FD 1_High
- PIN 8 CAN FD 3_High
CAN FD 2/4
- PIN 2 CAN FD 2_Low
- PIN 3 CAN FD_GND
- PIN 4 CAN FD 4_Low
- PIN 5 CAN FD_Shield
- PIN 7 CAN FD 2_High
- PIN 8 CAN FD 4_High
I/O
- PIN 1 DIDO_1
- PIN 2 DIDO_3
- PIN 3 DGND
- PIN 4 AIAO_1
- PIN 5 AIAO_3
- PIN 6 DIDO_2
- PIN 7 DIDO_4
- PIN 8 AGND
- PIN 9 AIAO_2
Typical applications
- Whole vehicle multi-channel CAN/CAN FD bus data acquisition
- Domain controller testing
- Various automated testing systems
Specification
| channel | 4 x CAN FD/ 4 x DIDO / 3 x AIAO |
|---|---|
| PC Interface | USB 2.0 |
| CAN Interface | DB9 |
| Driver | Driver-free design for Windows and Linux systems, ensuring system compatibility |
| Buffer | Each channel supports a transmit buffer of up to 700 CAN frames |
| CAN | Supports CAN 2.0A, B protocols, compliant with ISO11898-1 standard, with baud rate 125Kbps-1Mbps |
| CAN FD | Supports CAN FD that complies with both ISO and non-ISO standards, with baud rates from 125Kbps to 8Mbps |
| DIDO | DI: 0 ~ 40 V, Vref: 0 ~ 3.3 V, Threshold range: VAH = (330+499*Vref)/1098; Val = 0.455*Vref DO: Low level 0 V, high level 5 V / 12 V (use with load unsupported) |
| AIAO | AI: 0 ~ 39 V, AO: 0 ~ 30 V |
| Timestamp Accuracy | 1μs hardware message timestamp |
| Terminal Resistor | Built in 120 ohm terminal resistor, software configurable |
| * | Single channel at 1 Mbps with a 0-byte data field |
| Isolation | CAN channel DC 2500V isolation, with an electrostatic discharge level of ±8 KV for contact discharge and ±15 KV for air discharge |
| Power Supply | 9~32 V DC power supply |
| Power Consumption | 4 W / 10 W (DO full-channel push-pull mode PWM output) |
| Case Material | Metal |
| Dimensions | Approx. 178 x 113 x 38 mm |
| Weight | Approx. 435 g (without packaging)/Approx. 1333 g (with packaging) |
| Operating Temperature | -40℃～80℃ |
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Environment | Keep away from corrosive gases |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
