TP1013 – 2 CAN FD to PCle Interface
TP1013 is a device featuring a 2 channel CAN FD bus to PCIe interface, capable of handling tasks such as CAN FD/CAN network development, simulation, and testing effortlessly.
- ARM64 Linux: tsdev
- HarmonyOS: tsdev
Related Products
Related products
TP1013 Functions and parameters

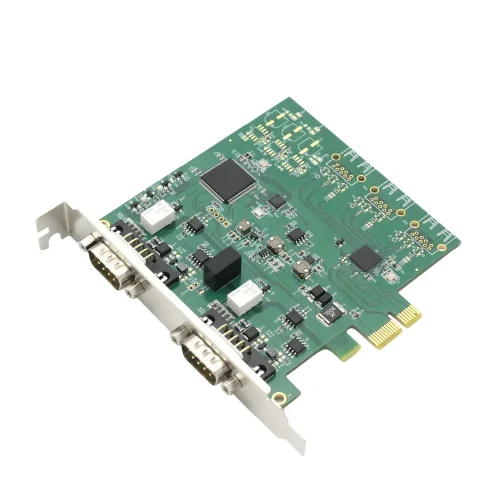

The TP1013 interface card allows computers equipped with PCIe slots to easily connect to CAN/CAN FD bus networks, enabling real-time monitoring of multiple bus networks. Its compact size facilitates embedding into various systems like in-vehicle industrial control computers, single-board computers (SBC), portable industrial host machines, and industrial notebooks. Installation is convenient, and usage is straightforward.
When coupled with the robust TSMaster software, it offers convenient monitoring, analysis, and simulation of CAN FD bus data. Additionally, it supports functionalities such as UDS diagnostics, ECU flashing, CCP/XCP calibration, etc.
With its secondary development API, it can accommodate various development environments such as C++, C#, LabView, Python, among others, making it easy to integrate into diverse testing
- Microsecond-level hardware message timestamps, meeting high-level requirements
- Supports secondary development interfaces for Windows and Linux systems
- Standard PCIe x1 interface
- Number of channels: Dual-channel isolated CAN FD interface, provided via the interface board with standard DB-9 connectors
- CAN channel DC2500V isolation
- Automotive-grade design, supporting DBC, A2L, BLF, ASC, ARXML files
- Support for BLF and ASC data recording in offline/online playback
- Supports UDS diagnostics and CCP/XCP calibration
- Support for UDS-based Flash Bootloader
- Comes with Windows and Linux system secondary development API interfaces
- Capable of loading all paid licenses of the TSMaster software
- PIN2 CAN FD _ Low
- PIN3 CAN FD _ GND
- PIN7 CAN FD _High
Typical applications
- Data Collection for Autonomous Driving
- In Various Automated Testing Systems
Specification

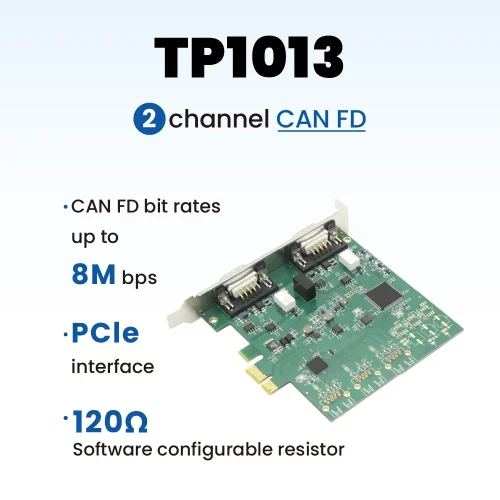

| channel | 2 x CAN FD |
|---|---|
| PC End | Standard PCIe interface |
| Driver | Driver-free design for Windows and Linux systems, ensuring system compatibility |
| Buffer | Each channel supports a transmit buffer of up to 1000 CAN frames |
| CAN | Supports CAN 2.0A, B protocols, compliant with ISO11898-1 standard, with baud rate 125Kbps-1Mbps |
| CAN FD | Supports CAN FD that complies with both ISO and non-ISO standards, with baud rates from 100Kbps to 8Mbps |
| Timestamp | 1μs hardware message timestamp |
| terminal resistor | Built-in 120-ohm terminal resistor configurable via software |
| Isolation | CAN channels isolated at DC2500V, electrostatic discharge level ±8KV |
| Power supply | Via PCIe interface |
| Dimension | 100.5 x 121 x 21.59 mm |
| Operating Temperature | -40℃ to 85℃ |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
