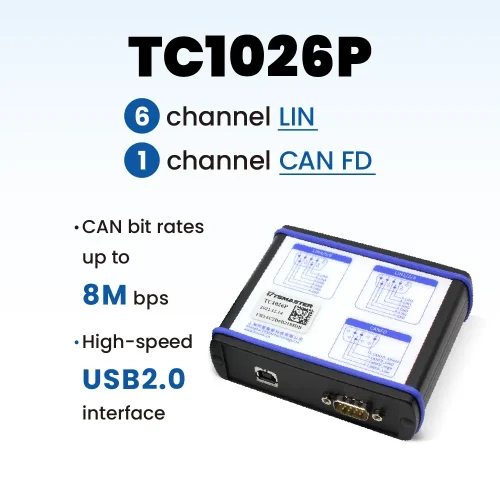

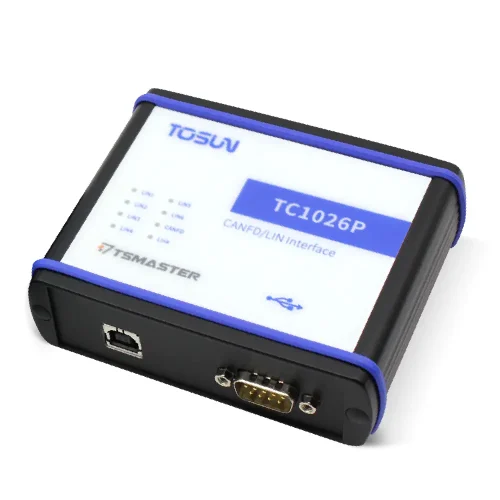

TC1026P – 1 CAN FD, 6 LIN to USB
TC1026P is a multi channel CAN FD and LIN bus interface device launched by TOSUN. It supports CAN FD bus speeds up to 8 Mbps and LIN speeds from 0 to 20 kbps.
- ARM64 Linux: tsdev
- HarmonyOS: tsdev
Related Products
Related products
TC1026P Functions and parameters
The product connects to the PC via a USB 2.0 interface and features a driver-free design for Windows systems, ensuring excellent system compatibility.
With the powerful TSMaster software, the device supports loading DBC and ARXML database files, making it easy to monitor, analyze, and simulate CAN FD/LIN bus data. It also supports UDS diagnostics, ECU programming, and CCP/XCP calibration.
The device provides secondary development APIs for Windows and Linux, supporting various development environments such as C++, C#, LabView, and Python, making it convenient to integrate into various testing systems, offering high efficiency and ease of use.

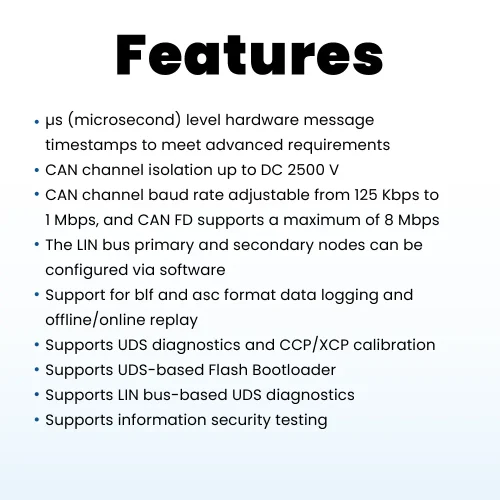

- Automotive-grade design, supports LDF, dbc files, a2l files, blf files, asc files, and arxml files
- Adjustable CAN channel baud rate from 125Kbps to 1Mbps, CAN FD supports up to 8Mbps
- The power supply for this product offers two options: internal power supply and external power supply.
If internal power supply is selected, the maximum output voltage provided by the product is 12V.
If external power supply is selected, it can accept a voltage of up to 36V. - Supports data logging and offline/online playback in blf and asc formats
- Supports UDS diagnostics and CCP/XCP calibration
- Supports UDS-based Flash Bootloader
- Supports UDS diagnostics over LIN bus
- Supports information security testing
- Supports secondary development interfaces for Windows and Linux systems
- Supports all paid licenses for TSMaster software
LIN 4/5/6
- PIN1 GND
- PIN2 GND
- PIN3 GND
- PIN4 LIN6
- PIN6 LIN5
- PIN8 LIN4
LIN 1/2/3
- PIN1 GND
- PIN2 GND
- PIN3 GND
- PIN4 LIN3
- PIN6 LIN2
- PIN8 LIN1
CAN FD
- PIN2 CANFD _ Low
- PIN3 CANFD _ GND
- PIN5 CANFD _ Shield
- PIN7 CANFD_High
Typical applications
- Whole vehicle multi channel CAN FD/CAN bus data acquisition
- Domain controller testing
- Various automated testing systems
Specification
| channel | 6 x LIN， 1 x CAN FD |
|---|---|
| PC End | USB 2.0 |
| CAN / LIN End | DB9 interface |
| driver | Driver-free design for Windows and Linux systems, ensuring system compatibility |
| Buffer | Each channel supports a transmit buffer of up to 1000 CAN frames |
| CAN | Supports CAN 2.0A, B protocols, compliant with ISO11898-1 standard, with baud rate 125Kbps-1Mbps |
| CAN FD | Supports CAN FD that complies with both ISO and non-ISO standards, with baud rates from 125Kbps to 8Mbps |
| LIN | Supports LIN 1.3 and LIN 2.x, baud rate 0-20Kbps |
| Schedule Table | Supports LDF files and can run schedule tables; also allows custom schedule table configuration |
| Timestamp | 1μs hardware message timestamp |
| Termination Resistor | Built-in 120-ohm termination resistor, software configurable |
| * | Single channel at 1 Mbps with a 0-byte data field |
| Isolation | CAN channel isolated at DC 2500V, with ESD protection of ±4KV (contact discharge) and ±8KV (air discharge) |
| Power Supply | USB powered; external power required for LIN communication |
| Power Consumption | 2.5W |
| Casing Material | Metal |
| Dimensions | 108 x 91 x 35mm |
| Weight | Approximately 252g (without packaging) / approximately 699g (with packaging) |
| Operating Temperature | -40℃～80℃ |
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Environment | keep away from corrosive gases |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
