TP1034 – 2 FlexRay, 2 CAN FD to PCIe interface

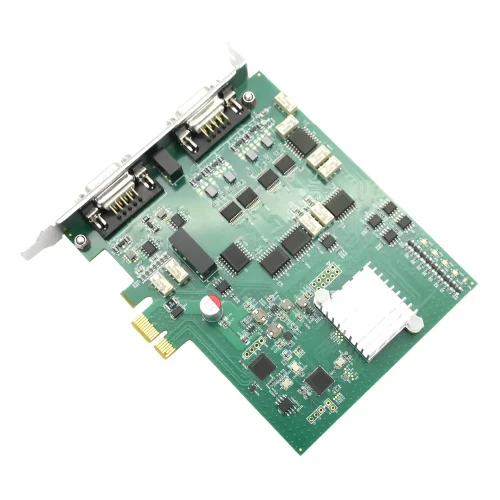

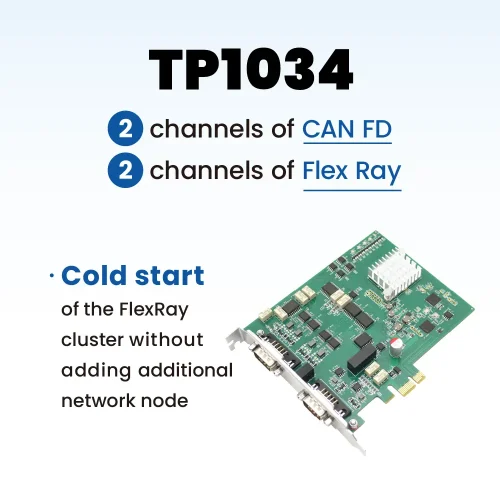

TP1034 offers a 2 channel FlexRay and 2 channel CAN FD bus, designed with a PCIe interface for seamless integration. It excels in tasks such as FlexRay network development, simulation,and testing.
- ARM64 Linux: tsdev
- HarmonyOS: tsdev
Related Products
Related products
TP1034 Functions and parameters
Controlled by the TSMaster software, TP1034 facilitates the parallel application of multiple units or collaborative work with other TOSUN products. When used alongside TOSUN’s CAN, LIN, and Automotive Ethernet tools, TP1034 empowers a single PC with high-performance multi-bus analysis and simulation capabilities. It is well-suited for use by testers, ECU production lines, and test engineers.
- 2 FlexRay channels (each channel includes A and B, supports internal bridging for using as one channel, can be individually cold-started)
- The FlexRay channel internally supports 700KB of transmit buffer space, concurrently storing 240 transmit configurations
- Equipped with an auxiliary communication controller, no need to add additional nodes during cold start
- Perfectly compatible with FlexRay, CAN/CAN FD bus applications based on TSMaster
- Compact design, especially suitable for mobile applications
- Supports secondary development interfaces for Windows systems
Typical applications
- Flexible analysis of FlexRay bus
- Precise time analysis of bus communication data
- ECU testing, analysis, and gateway applications
- Various types of automated test benches
Specification
| channel | 2 x FlexRay / 2 x CAN FD |
|---|---|
| PC End | Standard PCIe interface |
| Drivers | Driver-free design for Windows and Linux systems, ensuring system compatibility |
| FlexRay | FlexRay channels (A and B) |
| Cold start | Supported |
| CAN | Supports CAN 2.0A, B protocols, compliant with ISO11898-1 standard, with baud rate 125Kbps-1Mbps |
| CAN FD | Supports CAN FD that complies with both ISO and non-ISO standards, with baud rates from 125Kbps to 8Mbps |
| Timestamp | 1μs hardware message timestamp |
| Isolation | FlexRay/CAN channels DC 2500V isolation, electrostatic discharge contact discharge ±8KV |
| CAN Trminal Resistor | Built-in 120-ohm terminal resistor, configurable via software |
| FlexRay Terminal Resistor | Built-in 100-ohm terminal resistor, configurable via software |
| Power supply | PCIe interface |
| Operating temperature | -40°C to 85°C |
| Product dimensions | 128 x 98 x 21.5mm |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
