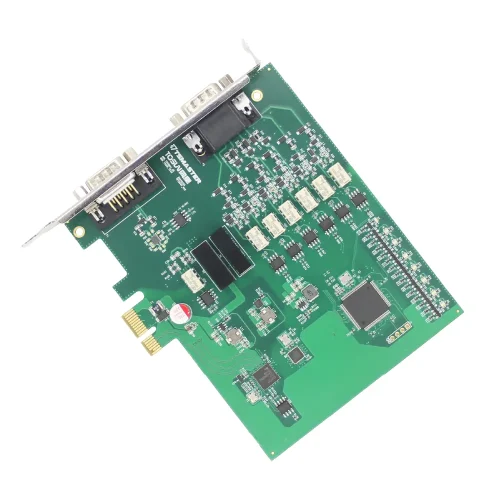

TP1026P – 1 CAN FD, 6 LIN to PCIe interface

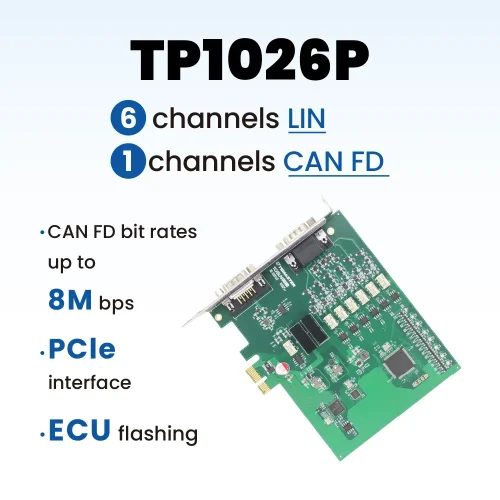

The TP1026P offer 1 channel for CAN FD and 6 channels for LIN, specifically designed for seamless integration with PCIe interfaces.
- ARM64 Linux: tsdev
- HarmonyOS: tsdev
Related Products
Related products
TP1026P Functions and parameters
This interface card empowers computers equipped with PCIe slots to effortlessly connect to LIN/CAN/CAN FD bus networks, enabling real-time monitoring of multiple bus networks.
With its compact size, the TP1026P can be easily integrated into on-board industrial computers, single-board computers (SBCs), portable industrial mainframes, and industrial laptops. Installation is straightforward, and operation is simple, making it a user-friendly solution.
- Microsecond-level hardware message timestamps, meeting advanced requirements
- Plug-and-play design for Windows/Linux systems, ensuring system compatibility
- Standard PCIe x1 interface
- Number of channels: 6 LIN interfaces, 1 CAN/CAN FD interface
- CAN channel DC 2500V isolation
- Supports LDF, DBC, ARXML, and other databases through TSMaster software
- Supports BLF and ASC format data recording and offline/online playback

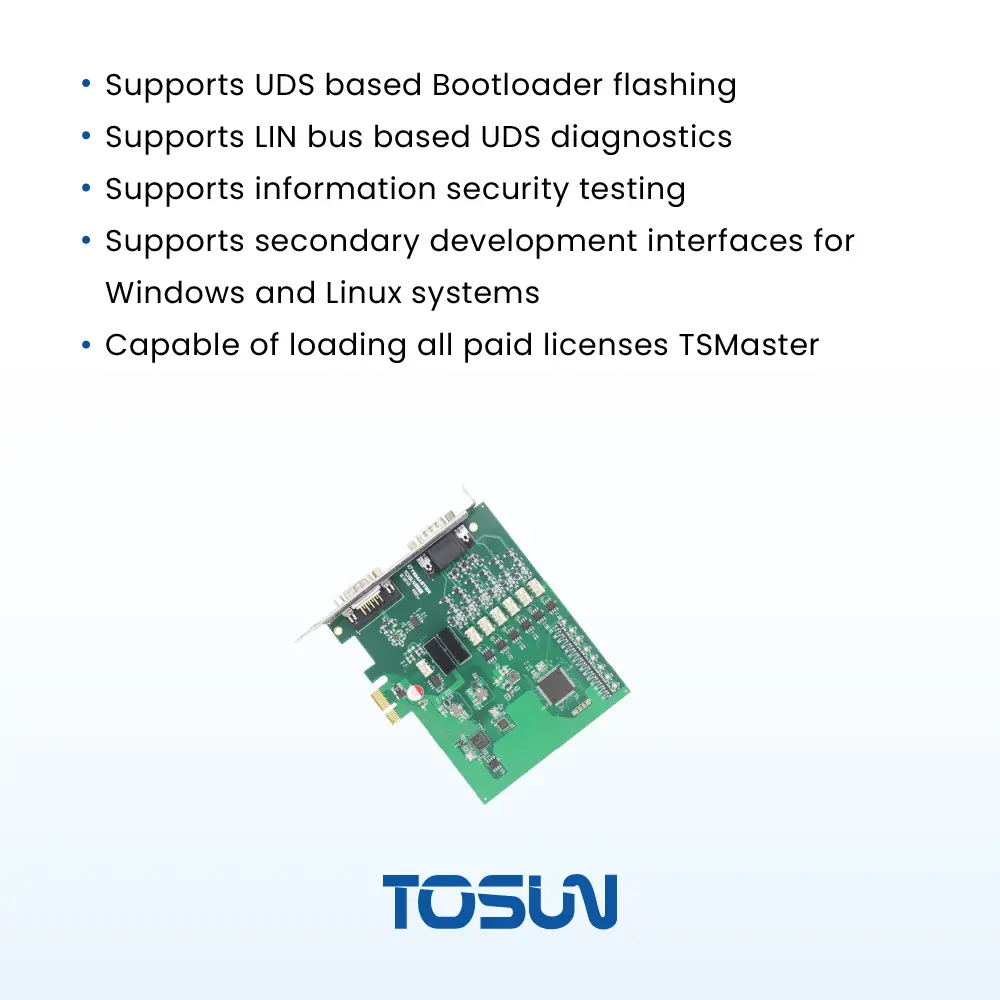

- Capable of supporting LIN’s UDS diagnostics and Flash Bootloader
- Comes with secondary development API interfaces for Windows and Linux systems
- Can load all paid licenses for TSMaster software
Typical applications
- LIN bus simulation and testing
- In various automated testing systems
Specification
| channel | 6 x LIN / 1 x CAN FD |
|---|---|
| PC End | Standard PCIe interface |
| CAN/LIN End | D-Sub9/D-Sub15 |
| Drivers | Driver-free design for Windows and Linux systems, ensuring system compatibility |
| Buffer | Each channel supports a transmit buffer of up to 1000 CAN frames |
| CAN | Supports CAN 2.0A, B Protocols, Complies with ISO 11898-1 Standard, Baud Rates: 5Kbps—1Mbps |
| CAN FD | Supports CAN FD that complies with both ISO and non-ISO standards, with baud rates from 100Kbps to 8Mbps |
| LIN | Supports LIN 1.3 and 2.0, Baud Rate: 0—20Kbps |
| Timestamp | 1μs hardware timestamp accuracy |
| Terminal Resistance | CAN end 120-ohm Configurable via Software |
| Isolation | CAN Channel DC 2500V Isolation |
| Power supply | PCIe Powered |
| Dimensions | 141 x 125 x 21.5mm |
| Operating temperature | -40°C to 70°C |
| * | Single : channel, 1Mbps, 0-byte data field scenario |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
