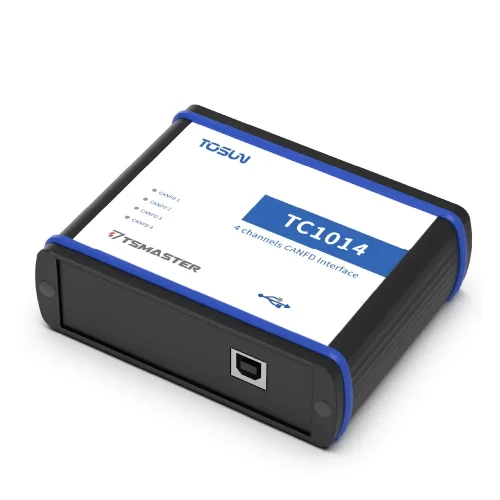

TC1014 – 4 CAN FD to USB interface

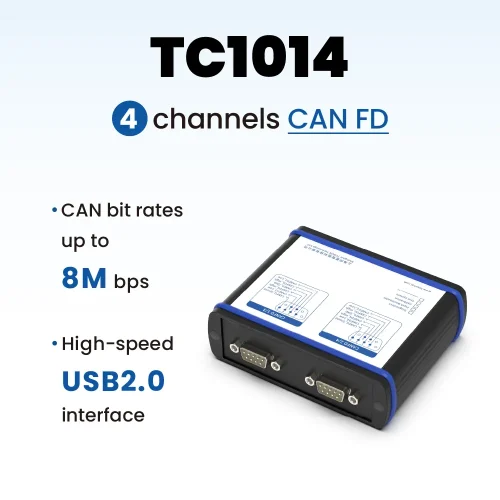

TC1014 features a 4 channel CAN FD bus to USB interface with a maximum speed of 8 Mbps. It connects to a PC through a high-speed USB 2.0 interface and is designed with driverless compatibility for Windows systems, ensuring system compatibility.
- ARM64 Linux: tsdev
- HarmonyOS: tsdev
Related Products
Related products
TC1014 Functions and parameters
Paired with the powerful TSMaster software, it supports loading DBC and ARXML database files, facilitating convenient monitoring, analysis, and simulation of CAN FD bus data. Additionally, it supports functional capabilities such as UDS diagnostics, ECU flashing, CCP/XCP calibration, among others.
This device provides secondary development APIs for Windows and Linux systems, supporting various development environments such as C++, C#, LabView, Python, etc. This flexibility allows for easy integration into diverse testing systems, ensuring efficiency and user-friendliness.
- Microsecond (μs) level hardware message timestamping, meeting high-level requirements
- High-speed USB 2.0 interface with driverless design for Windows and Linux systems, ensuring system compatibility
- CAN channel isolation up to DC2500V
- Automotive-grade design, supporting dbc, a2l, blf, asc, and arxml files
- Adjustable CAN baud rate from 125Kbps to 8Mbps
- Supports recording data in BLF and ASC formats for both offline and online playback
- Supports UDS-based Flash Bootloader
- Supports information security testing
- Supports secondary development interfaces for Windows and Linux systems
- Built-in 120-ohm terminal resistor,software-configurable
- Capable of loading all paid licenses for TSMaster
CAN FD 1/3
- PIN2 CANFD1 _ Low
- PIN3 CANFD _ GND
- PIN4 CANFD3 _ Low
- PIN5 CANFD _ Shield
- PIN7 CANFD1_High
- PIN8 CANFD3_High
CAN FD 2/4
- PIN2 CANFD2 _ Low
- PIN3 CANFD _ GND
- PIN4 CANFD4 _ Low
- PIN5 CANFD _ Shield
- PIN7 CANFD2_High
- PIN8 CANFD4_High
Typical applications
- Whole vehicle multi-channel CAN/CAN FD bus data acquisition
- Domain controller testing
- Various automated testing systems
Specification
| channel | 4 x CAN FD |
|---|---|
| PC End | High-speed USB 2.0 interface |
| CAN End | 2 x DB9 interface |
| Driver | Driver-free for Windows and Linux systems, ensuring system compatibility |
| Buffer | Each channel supports a transmit buffer of up to 1000 CAN/CAN FD frames |
| CAN | Supports CAN 2.0A, B protocols, compliant with ISO11898-1 standard, baud rate from 125Kbps to 1Mbps |
| CAN FD | Supports ISO and non-ISO standard CAN FD, baud rate from 125Kbps to 8Mbps |
| Timestamp | 1μs hardware message timestamp |
| Terminal Resistor | Built-in 120-ohm terminal resistor, software configurable |
| * | Single channel at 1 Mbps with a 0-byte data field |
| Isolation | CAN channel isolation up to DC2500V, electrostatic discharge level ±8KV |
| Power Supply | USB-powered |
| Casing Material | Aluminum |
| Dimensions | 100 x 80 x 30mm |
| Operating Temperature | -40℃～80℃ |
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Environment | Keep away from corrosive gases |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
