TE1021-R – 100/1000Base-T1 Media Converter
The TE1021 is a media conversion tool that translates 100/1000Base-T1 automotive Ethernet to 100/1000Base-TX standard Ethernet. It allows mode selection between master and slave through a button, enabling lossless data conversion between automotive Ethernet and 100/1000Base-TX Ethernet. Data transfer is full-duplex in both directions, and mode configuration is easily handled through DIP switch.
Support:
Related Products
Related products
TE1021-R Functions and parameters
The TE1021 is an ideal, cost-effective conversion tool for interfacing 100/1000Base-T1 automotive Ethernet with PC systems.
It is suitable for R&D professionals, ECU production lines, test engineers, and after-sales engineers.
It is suitable for R&D professionals, ECU production lines, test engineers, and after-sales engineers.
- 100/1000Base-T1 100/1000Mbit/s full-duplex over 2 pairs of UTP (unshielded twisted pair)
- Lossless data conversion between automotive Ethernet and standard Ethernet

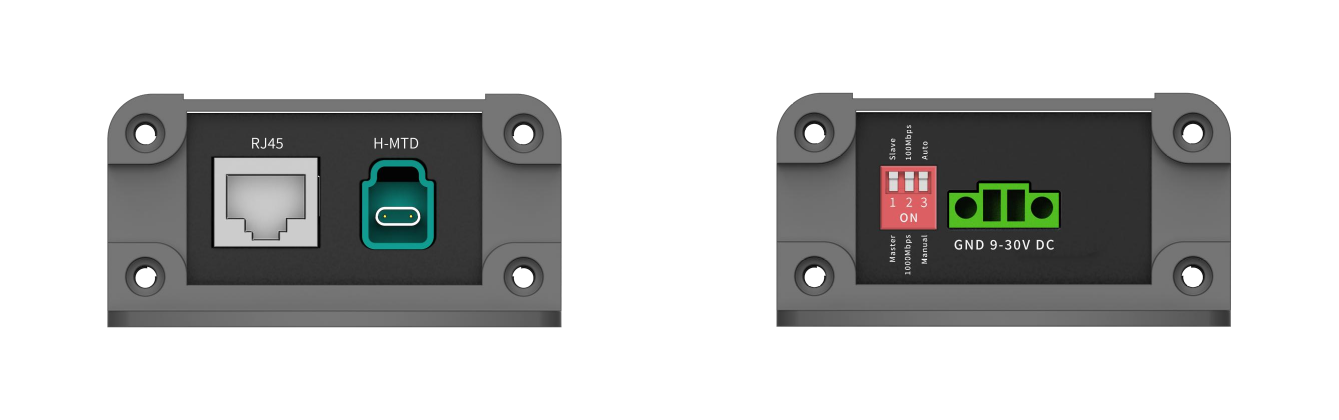

- Two automotive Ethernet interface options: TE MATEnet or Rosenberger H-MTD
- RJ45 interface with LED indicators for standard Ethernet
- LED indicators for Ethernet data communication status
- Master/slave mode, 100/1000Mbps configurable via button, with LED status display
- DIP switch for easy configuration
- Power supply: DC 9~30V (phoenix terminal)
- Message forwarding delay (for reference only):
Gigabit T1 to Tx: 640ns
Gigabit Tx to T1: 4.84μs
100 Mbps T1 to Tx: 840ns
100 Mbps Tx to T1: 1.74μs
Technical Data
| Item | Description |
| Channel | Standard/In-vehicle Ethernet 100/1000Base-T1 |
| PC Interface | RJ45+TE MATENet or Rosenberger H-MTD |
| Galvanic Isolation | Network transformer/capacitor isolation |
| Power Supply | DC9-30V (phoenix terminal power supply) |
| Power Consumption | 1.5W |
| Case Material | Metal |
| Dimension | Approx. 110*70*36mm |
| Weight | Approx. 140g (without packaging) / Approx. 322g (with packaging) |
| Operating Temperature | -40℃ ~ 80℃ |
| Operating Humidity | 10% ~ 90% (non-condensing) |
| Operating Environment | Keep away from corrosive gases |
Typical applications
- Vehicle Ethernet Communication Development
- Vehicle Ethernet Communication Testing
Specification
Caution! Avoid Short Circuits Before using the equipment, carefully review the pin information in the product user manual.
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
Caution! Damage from Electrostatic Discharge (ESD) Beware! Electrostatic discharge (ESD) can potentially damage or destroy components on the card. Take preventive measures to avoid ESD and protect the components.
