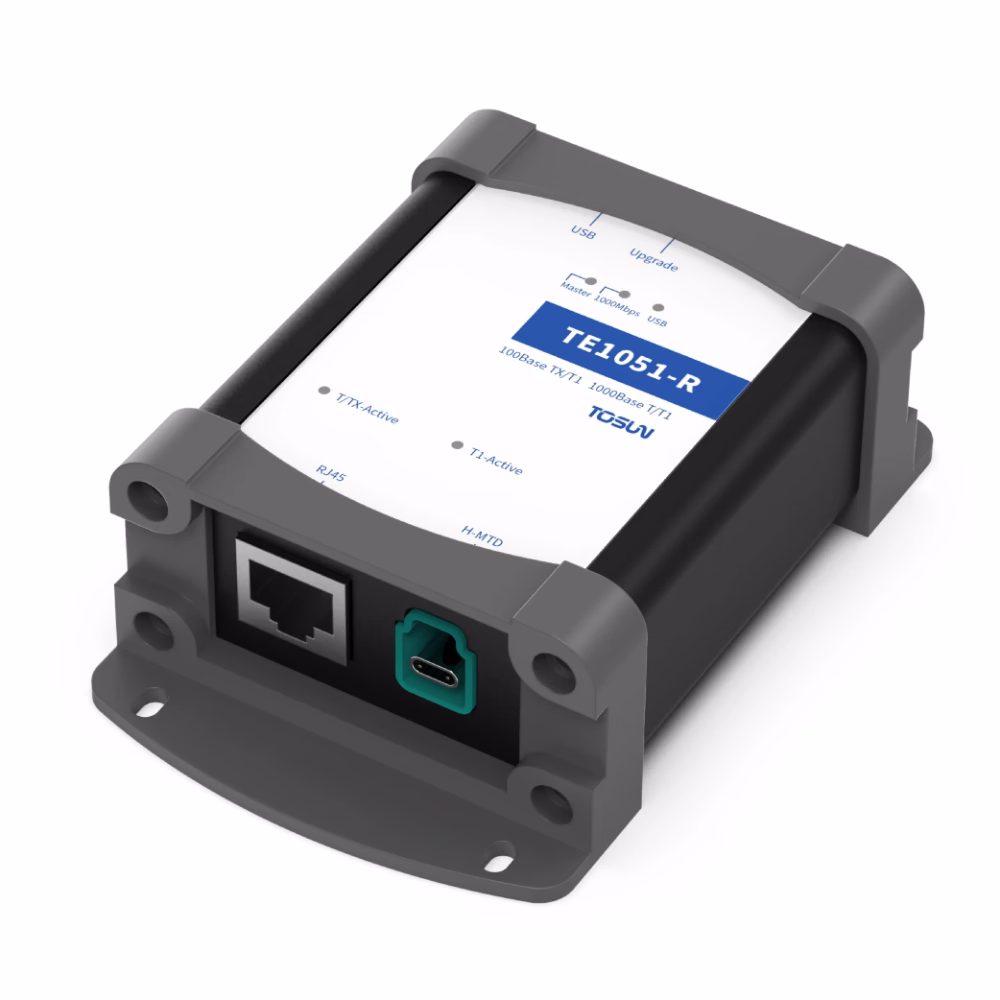

TE1051-R – 100/1000Base-Tx/T/T1 Interface Tool
TE1051 is a tool with a 1 channel Ethernet to USB interface. Users can transfer data from a standard Ethernetmode (100Base-Tx, 1000Base-T), or Automotive ethernetmode (100/1000Base-T1), via the USB interface to a PC.
Related Products
Related products
TE1051-R Functions and parameters
Through the TSMaster software, Ethernet data emulation, analysis, and testing can be performed. It also enables functionalities like DoIP, SOMEIP, and more.
TE1051 is compact, robust in design, requires no external power supply, and is user-friendly.
- Automotive Ethernet interfaces: TE MATEnet and Rosenberger H-MTD
- 1 channel support for 100Base-Tx, 1000Base-T,100/1000Base-T1, switchable via software at any time
- LED indicators displaying vehicle/standard Ethernet operational status
- LED indicators showing system status, including rate,master/slave, and USB status
- Automotive-grade design, ARXML file support for parsing automotive Ethernet messages in TSMaster
- Supports DoIP and SOME/IP
- Supplementary Windows API interface for secondary development, supporting Ethernet packet RAW format reception, transmission with timestamps, transmission completion events, and CRC modification
- Provides TCP/IP example projects based on API inter-faces and lwIP protocol stack, facilitating secondary development
- Loopback maximum rate approximately 7 Mbyte (full-duplex)
Hardware Interface
- RJ45 interface
- In-vehicle Ethernet interface (Rosenberger)
- USB 2.0 interface
Typical applications
- Vehicle Ethernet Remaining Bus Simulation
- Vehicle Ethernet Data Monitoring and Analysis
- Vehicle Ethernet Communication Testing
Specification
| Channel | Standard Ethernet 100Base-Tx, 1000Base-T, or vehicle Ethernet 100/1000Base-T1 |
|---|---|
| PC End | USB 2.0 |
| Ethernet End | RJ45 with TE MATEnet or Rosenberger H-MTD |
| Driver | Driver-free design for Windows and Linux systems, ensuring system compatibility |
| Timestamp | 1μs hardware message timestamp |
| Isolation | Network transformer/capacitor isolation |
| Power Supply | USB-powered |
| Operating Temperature | -40°C to 80°C |
| Casing Material | Aluminum |
| Dimensions | 110 x 70 x 36mm |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
