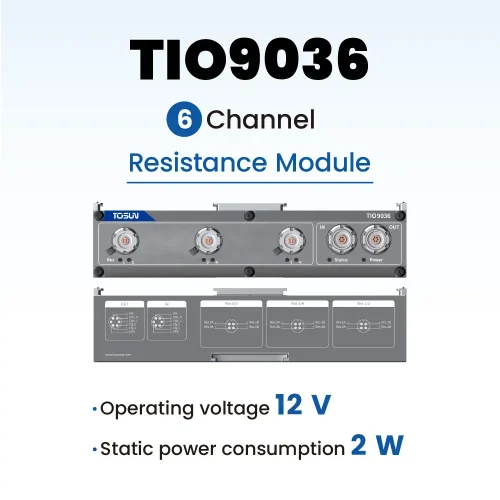

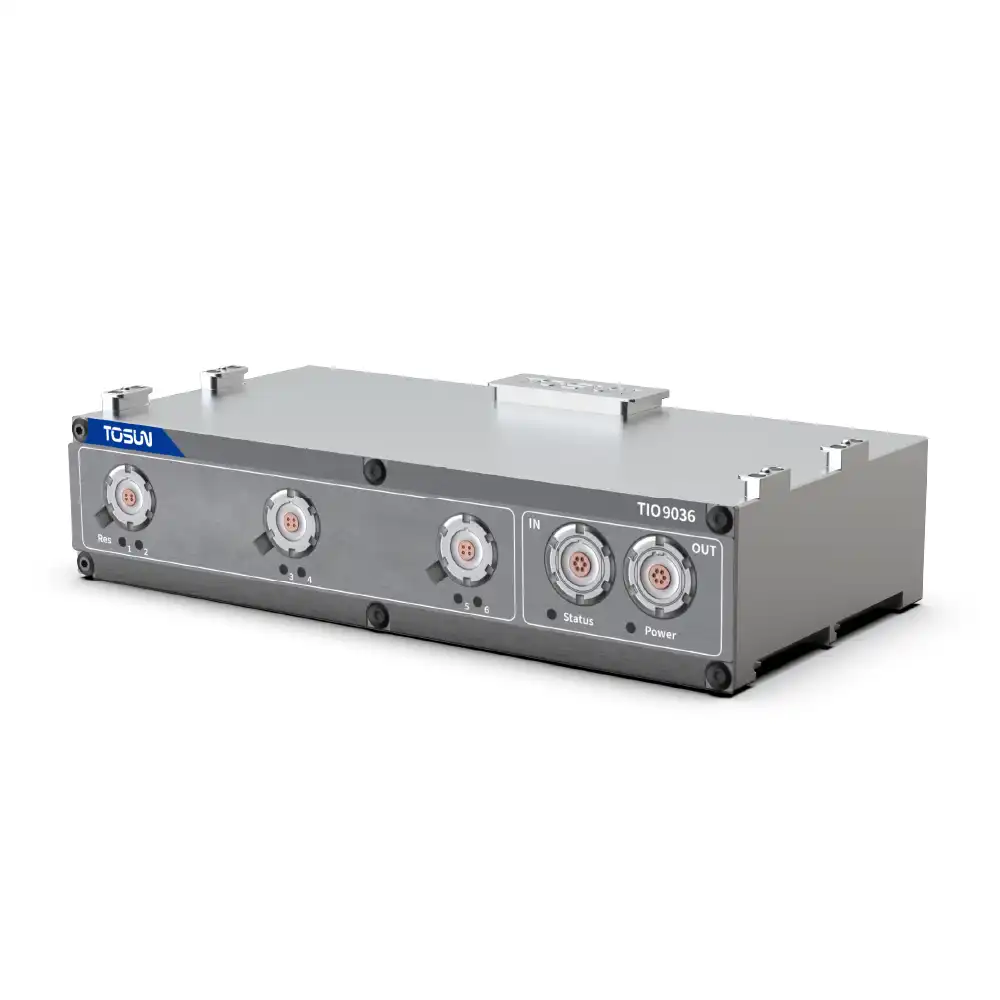

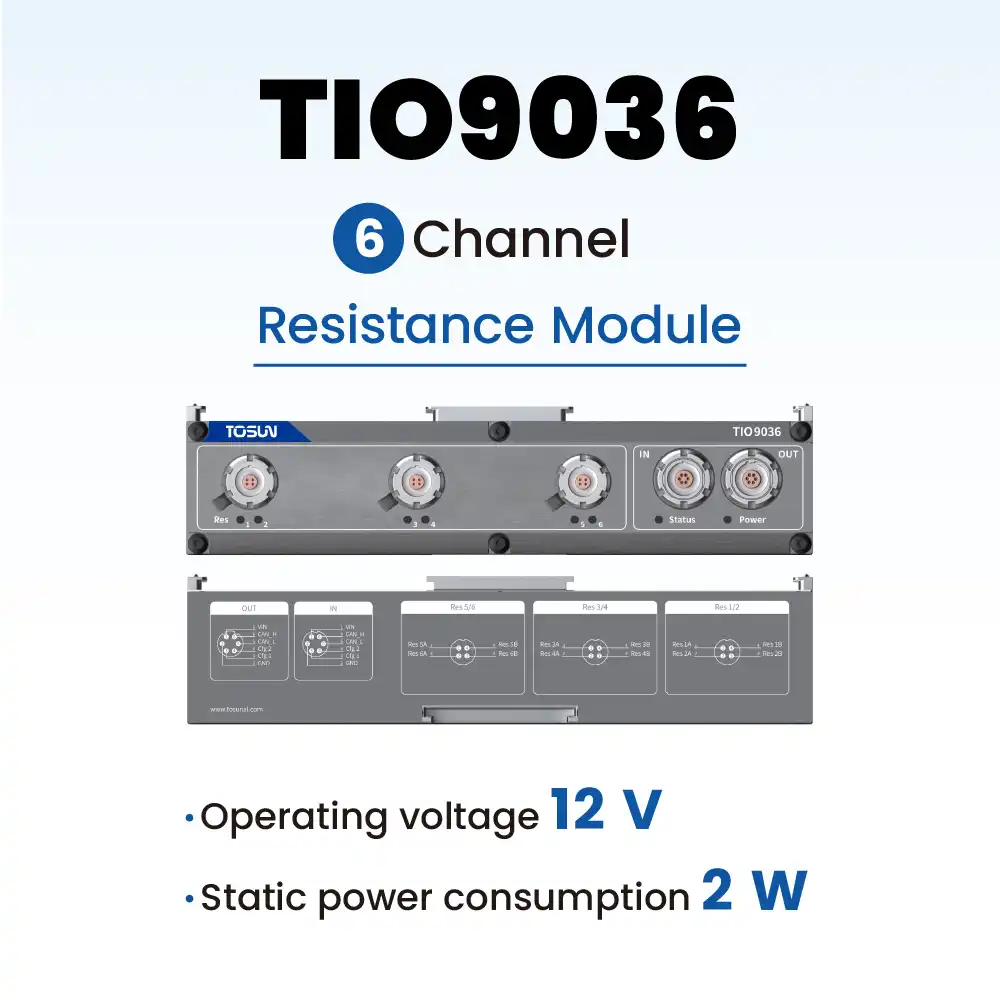

TIO9036 – Resistance module

In cases where the resolution or range is insufficient, the channels can also be used in parallel or series. The resistance module can be utilized in various signal systems and can simulate functions such as thermistors or resistive sensors.

What Is the TIO Series Product Family ?

The TIO series products are general purpose testing modules designed for automotive electronic systems. They can be used in scenarios such as hardware in the loop (HIL) testing. These modules provide an efficient and flexible way to simulate and test various electronic control units (ECUs) in vehicles, helping engineers ensure system reliability and performance while accelerating development cycles and reducing costs. They are indispensable tools in the development of automotive electronic systems.

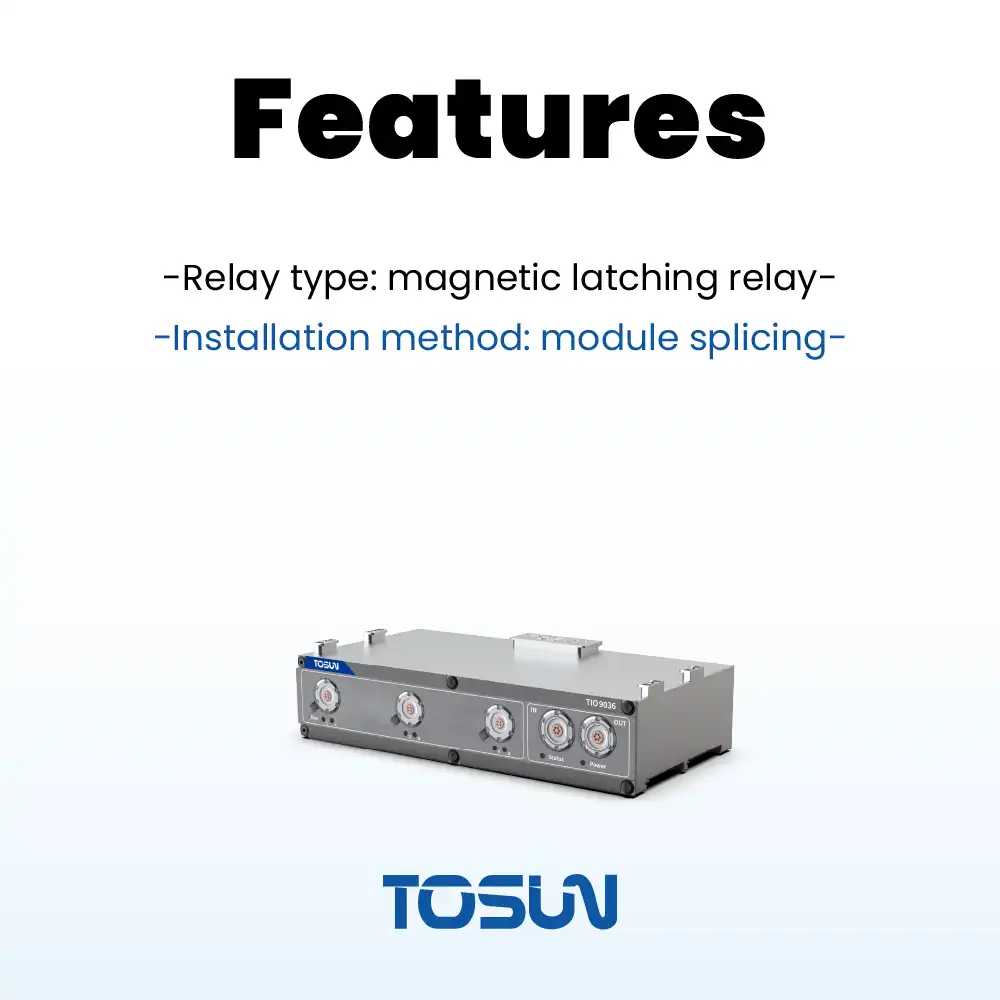

What Are Their Features ?

• Modular Design: The TIO series devices feature a highly modular design, allowing users to quickly configure and expand the testing system by selecting the appropriate functional modules based on testing requirements.
• Multifunctional Integration: TIO series devices integrate functions such as relay control, resistance simulation, digital input/output, and analog input/output.
• High Precision Output/Acquisition: TIO series devices provide high precision signal processing, such as resistance simulation, voltage/current output and acquisition, and PWM signal output and acquisition.
• Seamless Software Compatibility: TIO series boards are highly compatible with TOSUN’s TSMaster software, enabling seamless integration into some of TSMaster’s automated test cases, simplifying the configuration process and lowering the learning curve.
