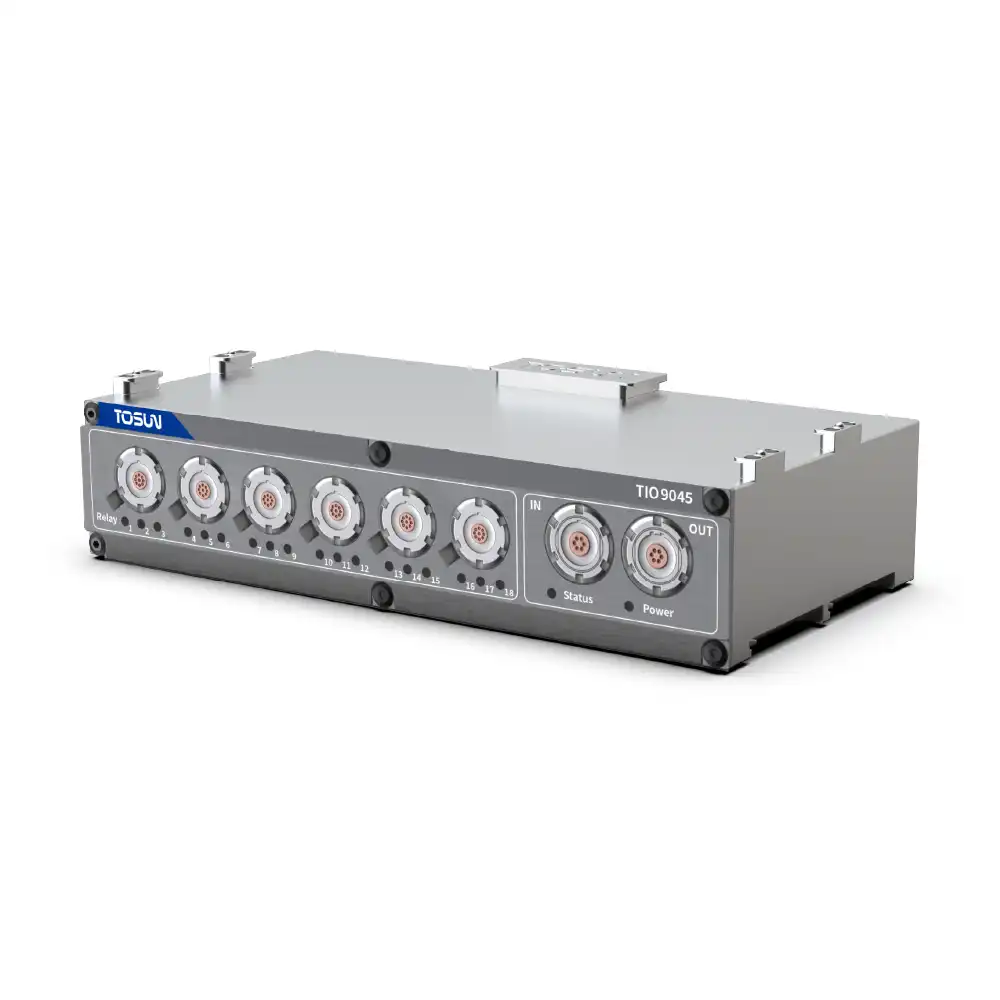

TIO9045 – General Purpose Relay Module
TIO9045 is a general purpose relay module with 18 channels. Each channel is controlled by one relay, and each relay has three terminals (CH/NO/NC).
Related Products
Related products
TIO9045 Functions and parameters
What Is the TIO Series Product Family ?
The TIO series products are general purpose testing modules designed for automotive electronic systems. They can be used in scenarios such as hardware in the loop (HIL) testing. These modules provide an efficient and flexible way to simulate and test various electronic control units (ECUs) in vehicles, helping engineers ensure system reliability and performance while accelerating development cycles and reducing costs. They are indispensable tools in the development of automotive electronic systems.
What Are Their Features ?
- Modular Design: The TIO series devices feature a highly modular design, allowing users to quickly configure and expand the testing system by selecting the appropriate functional modules based on testing requirements.
- Multifunctional Integration: TIO series devices integrate functions such as relay control, resistance simulation, digital input/output, and analog input/output.
- High Precision Output/Acquisition: TIO series devices provide high precision signal processing, such as resistance simulation, voltage/current output and acquisition, and PWM signal output and acquisition.
- Seamless Software Compatibility: TIO series boards are highly compatible with TOSUN’s TSMaster software, enabling seamless integration into some of TSMaster’s automated test cases, simplifying the configuration process and lowering the learning curve.
Typical applications

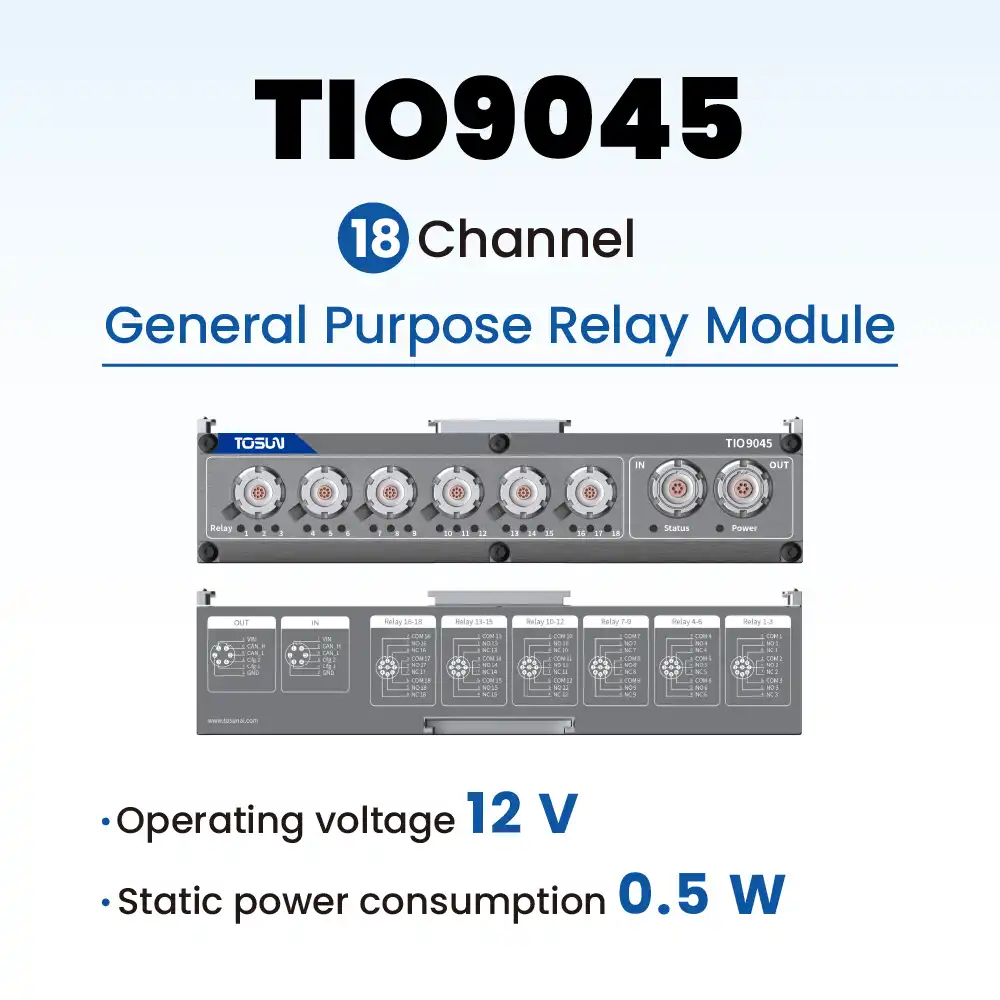

Specification
| Number of channels | 18 |
|---|---|
| Operating voltage | 12 V |
| Static power consumption | 0.5 W |
| Relay type | Power relay |
| Installation method | Module splicing |
Caution! Avoid Short Circuits Before using the equipment, carefully review the pin information in the product user manual.
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
Caution! Damage from Electrostatic Discharge (ESD) Beware! Electrostatic discharge (ESD) can potentially damage or destroy components on the card. Take preventive measures to avoid ESD and protect the components.
