TC1011 – 1 CAN FD to USB interface

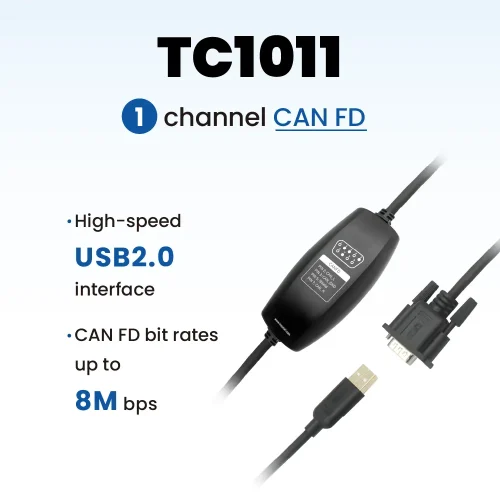

TC1011 is a portable, easy-to-install 1 channel CAN FD to USB interface device launched by TOSUN, with a maximum speed of 8 Mbps. The product uses a high-speed USB 2.0 interface to connect to the PC, and its driver-free design for Windows systems ensures system compatibility.
- ARM64 Linux: tsdev
- HarmonyOS: tsdev
Related Products
Related products
TC1011 Functions and parameters
Paired with the powerful TSMaster software, it supports loading DBC and ARXML database files, allowing for easy monitoring, analysis, and simulation of CAN FD bus data. It also supports UDS diagnostics, ECU flashing, CCP/XCP calibration, and other functions.
The device offers secondary development APIs for Windows and Linux, supporting various development environments such as C++, C#, LabView, Python, etc., making it easy to integrate into various test systems, efficient and user-friendly.
- Hardware message time stamp at microsecond (μs) level, meeting advanced requirements
- Portable design with uniquely designed installation holes,easy to integrate into various devices or instrument panels
- High-speed USB 2.0 interface, with driverless design for Windows and Linux systems, ensuring system compatibility
- CAN channel isolated at DC 2500V
- Automotive-grade design, supporting dbc, a2l, blf, and asc file formats
- Adjustable CAN channel baud rate from 125 Kbps to 8Mbps
- Supports data logging and offline/online playback in blf and asc formats
- Supports UDS diagnostics and CCP/XCP calibration
- Supports secondary development interfaces for Windows and Linux systems
- Built-in 120-ohm termination resistor configurable via software
- Supports Flash Bootloader based on UDS
- Supports all paid licenses for TSMaster software
- PIN2 CANFD _ Low
- PIN3 CANFD _ GND
- PIN5 CANFD _ Shield
- PIN7 CANFD_High
Typical applications
- ECU data collection
- Various test benches
- ECU flashing
Specification
| Channel | 1 x CAN FD |
|---|---|
| PC End | High-speed USB 2.0 interface |
| CAN End | DB9 interface |
| Driver | Driver-free design for Windows systems, ensuring system compatibility |
| Buffer | Each channel supports a transmit buffer of up to 1000 CAN frames |
| CAN | Supports CAN 2.0A, 2.0B protocols, compliant with ISO11898-1 standard, with baud rates ranging from 5Kbps to 1Mbps |
| CAN FD | Supports both ISO and non-ISO standard CAN FD with baud rates from 125Kbps to 8Mbps |
| Terminal Resistance | Built-in 120-ohm terminal resistors, software configurable |
| Timestamp | 1μs hardware message timestamp |
| * | Single channel at 1Mbps with a 0-byte data field |
| Isolation | CAN channel DC2500V isolation, ESD level contact discharge ±8KV |
| Power Supply | USB-powered |
| Casing Material | Plastic |
| Operating Temperature | -40℃～85℃ |
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Environment | Keep away from corrosive gases |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
