2 CAN FD to USB interface – TC1013

SKU : TC1013

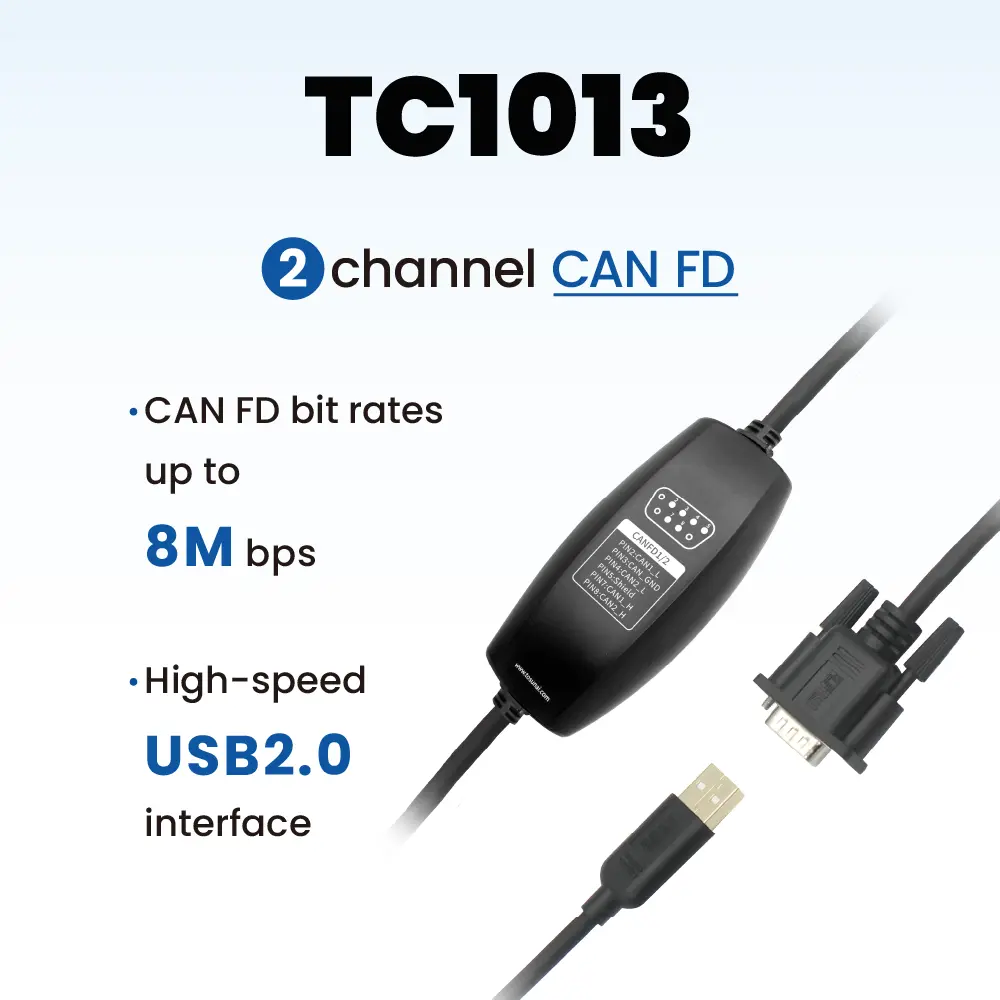

TC1013 is a portable and easy-to-install device launched by TOSUN, providing a 2 channel CAN FD bus to USB interface. With a maximum speed of 8 Mbps, it connects to a PC via a high-speed USB 2.0 interface, designed with driverless compatibility for Windows and Linux systems.

TC1013 Functions and parameters

Paired with the robust TSMaster software, it supports loading DBC and ARXML database files, enabling convenient monitoring, analysis, and simulation of CAN FD bus data. Additionally, it facilitates functionalities such as UDS diagnostics, ECU flashing, CCP/XCP calibration, among others.

This device offers secondary development APIs for Windows and Linux, supporting various development environments like C++, C#, LabView, Python, etc. This flexibility allows for seamless integration into diverse testing systems, ensuring efficiency and user-friendliness.



  • Hardware message timestamping at the microsecond (μs) level, meeting advanced requirements
  • Portable design with uniquely designed mounting holes,facilitating integration into various devices or instrument panels
  • High-speed USB 2.0 interface with driverless compatibility for Windows and Linux systems, ensuring system compatibility
  • CAN channel isolation up to DC2500V
  • Automotive-grade design supporting dbc, a2l, blf, and asc file formats
  • Adjustable CAN bus baud rates from 125Kbps to 8Mbps
  • Support for recording data in blf and asc formats, enabling offline/online playback
  • Supports UDS diagnostics and CCP/XCP calibration
  • Support for UDS-based Flash Bootloader
  • Secondary development interfaces for Windows and Linux systems
  • Built-in 120-ohm terminal resistor,software configurable
  • Ability to load all paid licenses for TSMaster
TC1013 TC1014 TC1016/TC1016P TC1034 TLog1002 Tlog1004
  • PIN2 CANFD1 _ Low
  • PIN3 CANFD _ GND
  • PIN4 CANFD2 _ Low
  • PIN5 CANFD _ Shield
  • PIN7 CANFD1_High
  • PIN8 CANFD2_High
  • ECU data acquisition
  • Various test benches
  • ECU flashing
  • ECU calibration
channel

2 x CAN FD

PC End

High-speed USB 2.0 interface

CAN End

DB9 interface

Driver

Driver-free for Windows and Linux systems, ensuring system compatibility

Buffer

Each channel supports a transmit buffer of up to 1000 CAN frames

CAN

Supports CAN 2.0A, 2.0B protocols, compliant with ISO11898-1 standard, with baud rates ranging from 5Kbps to 1Mbps

CAN FD

Supports both ISO and non-ISO standard CAN FD with baud rates from 125Kbps to 8Mbps

Timestamp

1μs hardware message timestamp

Terminal resistance

Built-in 120-ohm terminal resistors, configurable via software

Messages Sent per Second*

Maximum of 20,000 frames/second

Messages Received per Second*

Maximum of 20,000 frames/second

*

Single channel at 1 Mbps with a 0-byte data field

Isolation

CAN channel DC2500V isolation, ESD level contact discharge ±8KV

Power Supply

USB-powered

Casing Material

Plastic

Operating Temperature

-40℃ to 85℃

Operating Humidity

10% to 90% (non-condensing)

Operating Evironment

Keep away from corrosive gases
