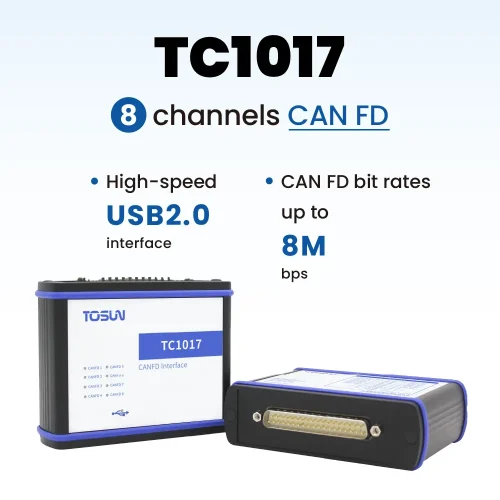

TC1017 – 8 CAN FD to USB interface
TC1017 is a device featuring an 8 channel CAN FD bus to USB interface, adeptly handling tasks related to CAN FD/CAN network development, simulation,and testing.
- ARM64 Linux: tsdev
- HarmonyOS: tsdev
Related Products
Related products

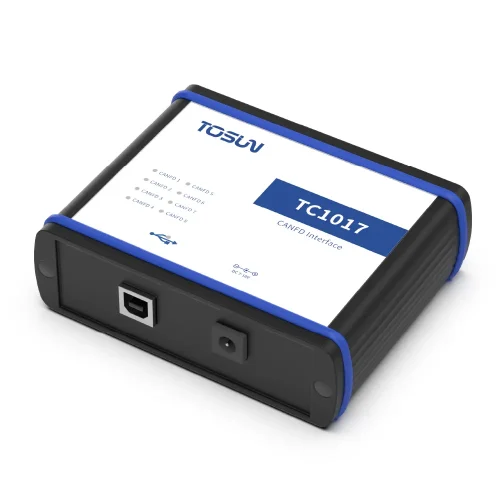

TC1017 Functions and parameters
Paired with the robust TSMaster software, it supports the loading of DBC and ARXML data base files, facilitating convenient monitoring, analysis, and simulation of CAN FD bus data. Additionally, it supports functionalities such as UDS diagnostics, ECU flashing, CCP/XCP calibration, among others.
This device provides secondary development APIs for Windows and Linux systems, supporting various development environments like C++, C#, LabView, Python, etc. This versatility allows for easy integration into diverse testing systems, ensuring efficiency and
user-friendliness.

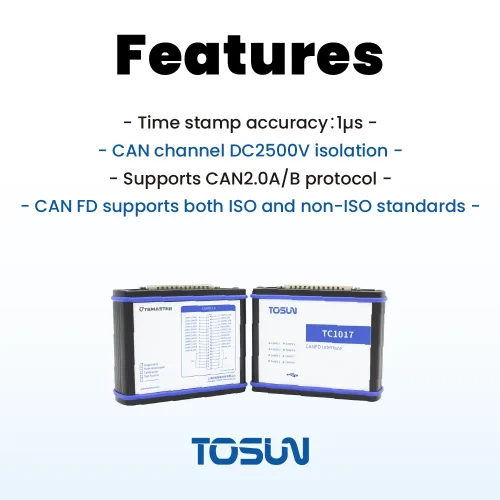

- Microsecond-level hardware message timestamping to meet high-level requirements
- Driver-free design for Windows and Linux systems with USB 2.0 interface, offering excellent system compatibility
- CAN channel isolation with DC 2500V
- Automotive-grade design, supporting dbc, a2l, blf, asc, and arxml file formats
- Adjustable CAN channel baud rate from 125 Kbps to 1 Mbps, with CAN FD supporting up to 8 Mbps
- Supports blf and asc format data logging and offline/online playback
- Supports UDS diagnostics and CCP/XCP calibration
- Supports UDS-based Flash Bootloader
- Supports information security testing
- Provides secondary development interfaces for Windows and Linux systems
- Built-in 120-ohm termination resistor, software-configurable
- Supports all paid licenses of TSMaster

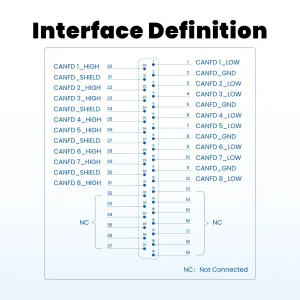

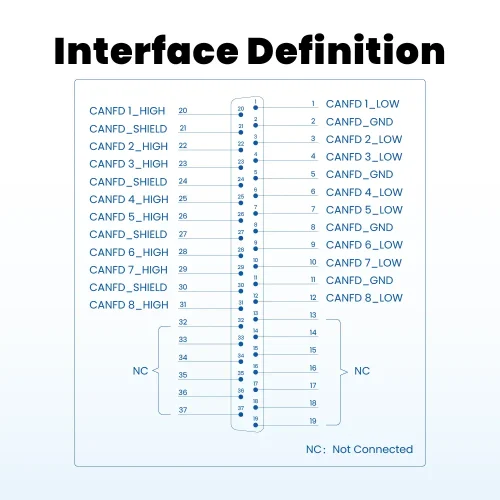

- PIN1 CANFD 1_LOW
- PIN2 CANFD_GND
- PIN3 CANFD 2_LOW
- PIN4 CANFD 3_LOW
- PIN5 CANFD_GND
- PIN6 CANFD 4_LOW
- PIN7 CANFD 5_LOW
- PIN8 CANFD_GND
- PIN9 CANFD 6_LOW
- PIN10 CANFD 7_LOW
- PIN11 CANFD_GND
- PIN12 CANFD 8_LOW
- PIN13 NC
- PIN14 NC
- PIN15 NC
- PIN16 NC
- PIN17 NC
- PIN18 NC
- PIN19 NC
- PIN20 CANFD 1_HIGH
- PIN21 CANFD_SHIELD
- PIN22 CANFD 2_HIGH
- PIN23 CANFD 3_HIGH
- PIN24 CANFD_SHIELD
- PIN25 CANFD 4_HIGH
- PIN26 CANFD 5_HIGH
- PIN27 CANFD_SHIELD
- PIN28 CANFD 6_HIGH
- PIN29 CANFD 7_HIGH
- PIN29 CANFD_SHIELD
- PIN31 CANFD_SHIELD
- PIN32 NC
- PIN33 NC
- PIN34 NC
- PIN35 NC
- PIN36 NC
- PIN37 NC
Typical applications
- Whole vehicle multi-channel CAN FD/CAN/LIN bus data acquisition
- Domain controller testing
- Various automated testing systems
Specification
| channel | 8 x CAN FD |
|---|---|
| PC End | USB 2.0 |
| CAN End | DB37, with a cable that converts DB37 to 8 DB9 interfaces |
| driver | Driver-free design for Windows and Linux systems, ensuring system compatibility |
| Buffer | Each channel supports a transmit buffer of up to 700 CAN FD@64 bytes |
| CAN | Supports CAN 2.0A, B protocols, compliant with ISO11898-1 standard, with baud rate 125Kbps-1Mbps |
| CAN FD | Supports CAN FD that complies with both ISO and non-ISO standards, with baud rates from 125Kbps to 8Mbps |
| Timestamp | 1μs hardware message timestamp |
| Termination Resistor | Built-in 120-ohm termination resistor, software configurable |
| Isolation | CAN channel isolated at DC 2500V, with ESD protection of ±4KV (contact discharge) and ±8KV (air discharge) |
| Power Supply | DC 7-18V |
| Operating Temperature | 40°C to 85°C |
| Casing Material | Aluminum |
| Dimensions | 106 x 84 x 32mm |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
