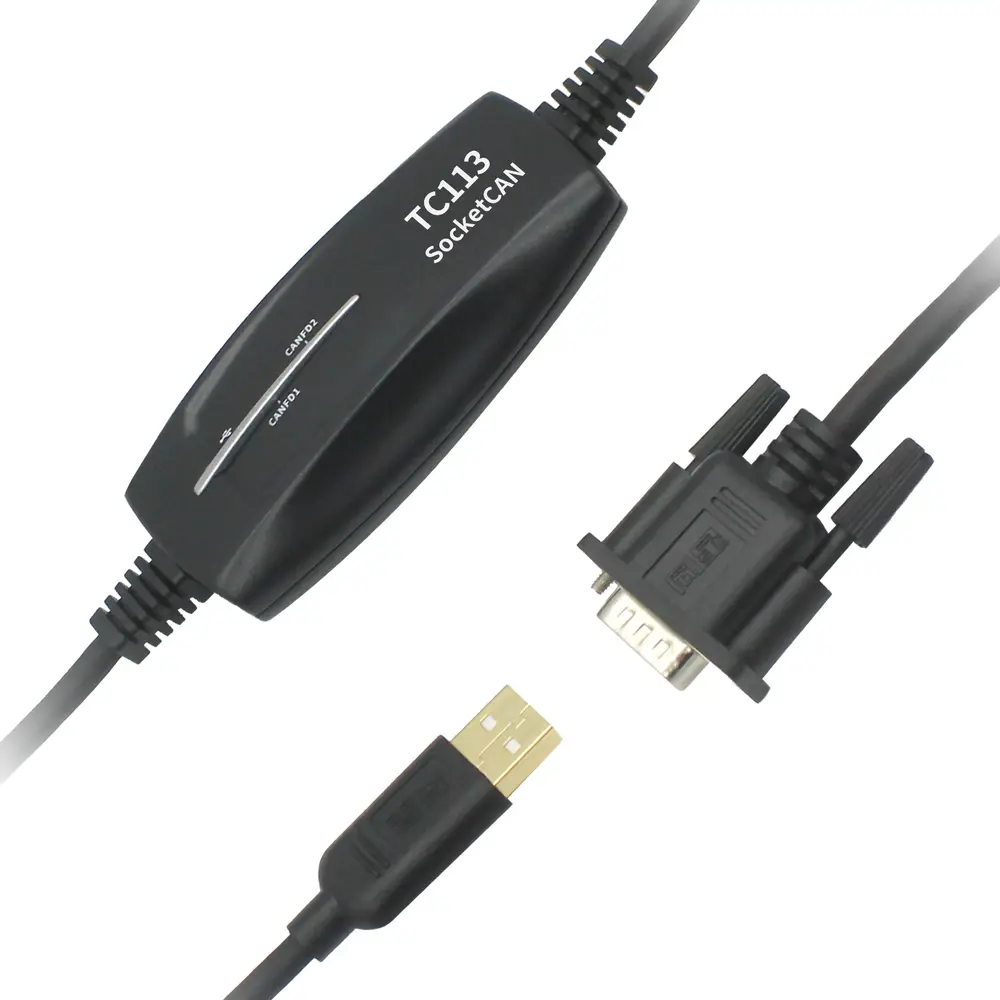

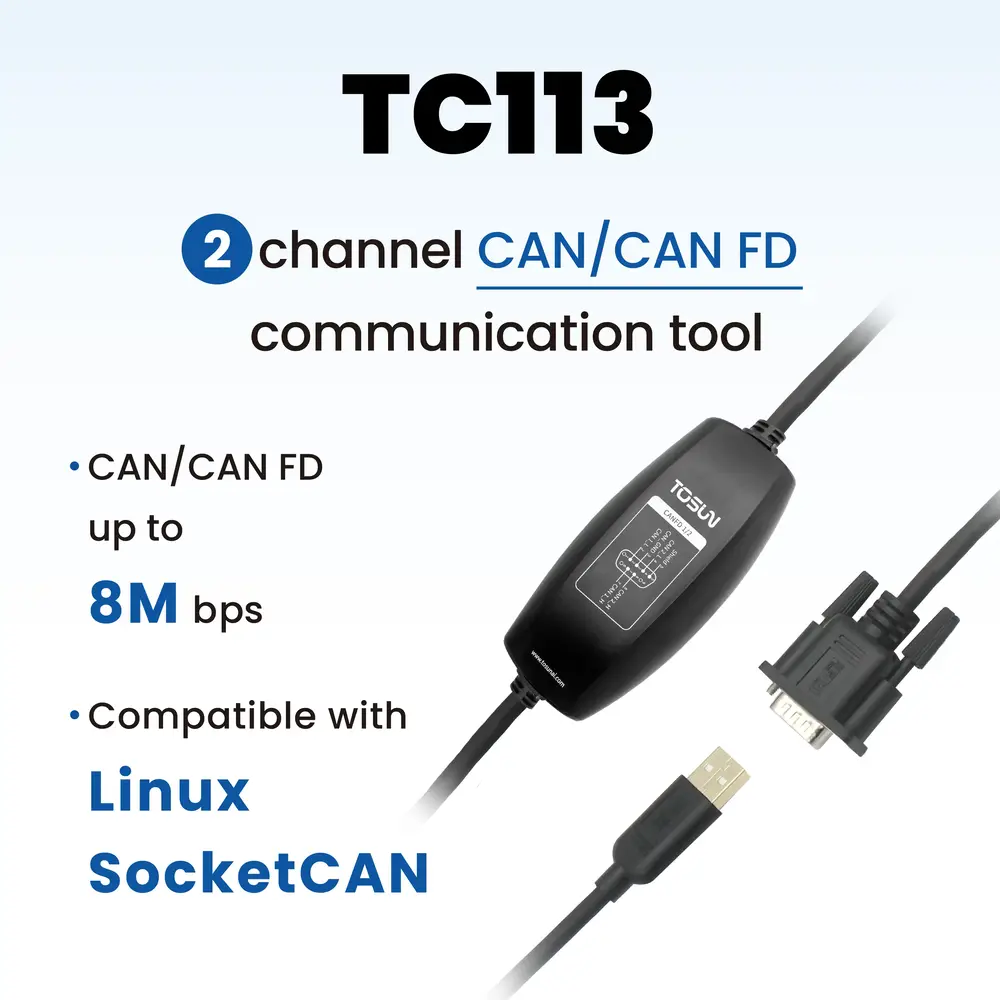

TC113 – 2 CAN/CAN FD communication tool
The TC113 is a dual-channel CAN/CAN FD communication tool based on SocketCAN. It is designed to make CAN communication as simple and efficient as network programming.
The TC113 supports CAN FD bus speeds up to 5Mbps (optionally up to 8Mbps) and connects to the host via USB. It is fully compatible with SocketCAN and comes with a complete Linux driver for excellent system compatibility.
- Linux SocketCAN
Related Products
Related products
TC113 Functions and parameters
Powered by a China-made main control chip, TC113 supports a fully domestic hardware configuration, making it suitable for a wide range of embedded and industrial communication applications.
CAN/CAN FD Specifications
| Parameter | Description |
| Supported Protocols | CAN 2.0 A/B (ISO 11898-1), CAN FD (ISO and non-ISO) |
| CAN Baud Rate | 125Kbps ~ 1Mbps |
| CAN Frame Data Length | Up to 8 bytes |
| CAN FD Baud Rate | 125Kbps ~ 5Mbps (8Mbps optional) |
| CAN FD Frame Data Length | Up to 64 bytes; supports BRS frames |
| Channel Count | 2 x CAN/CAN FD |
| Buffer | Each channel supports a transmit buffer of up to 1000 CAN frames |
- Pin 2 CAN FD 1_Low
- Pin 3 CAN FD 1_GND
- Pin 4 CAN FD 2_Low
- Pin 5 CAN FD 1_Shield
- Pin 7 CAN FD 1_High
- Pin 8 CAN FD 2_High
Typical applications
- Automotive electronics testing
- Industrial automation communication
- Embedded system integration
- Support SocketCAN
Specification
| PC Interface | USB2.0 (HS) |
|---|---|
| Driver | Linux driver support |
| Buffer | Each channel supports a transmit buffer of up to 1000 CAN frames |
| Connector | Standard D-Sub, 9-pin |
| CAN | Supports CAN 2.0 A/B protocols (ISO 11898-1 compliant); baud rate 125 Kbps ~ 1 Mbps |
| CAN FD | Supports both ISO and non-ISO CAN FD standards; baud rate 125 Kbps ~ 5 Mbps (8 Mbps optional) |
| Power Supply | Powered via USB |
| Power Consumption | 1.5 W |
| ESD Protection | ±8 KV contact discharge, ±8 KV air charge |
| Sample Point Range | Adjustable from 70% ~ 90% |
| Dimension | Approx. 93.7 x 47.4 mm |
| Weight | Approx. 106.2 g |
| Operating Humidity | 10% ~ 90% (non-condensing) |
| Operating Environment | Keep away from corrosive gases |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
