TL1011 – 1 CH fast LIN bus to USB interface

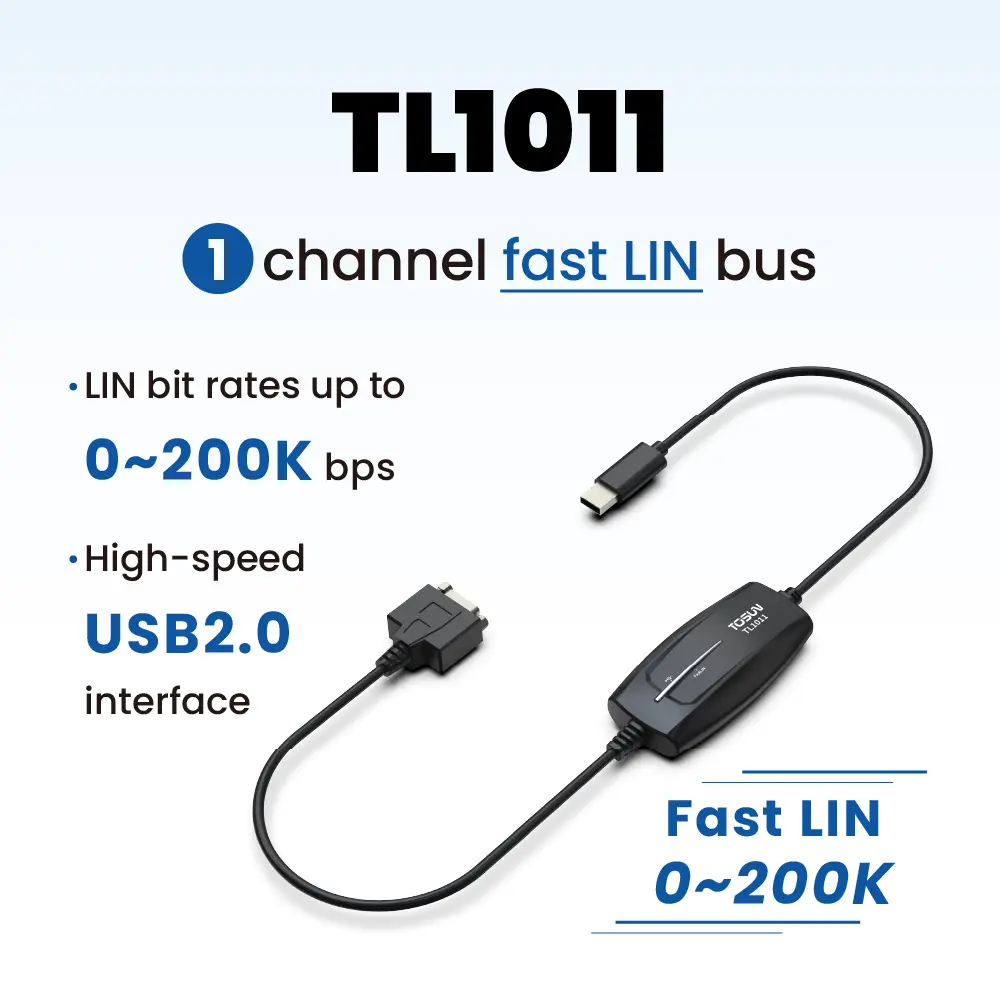

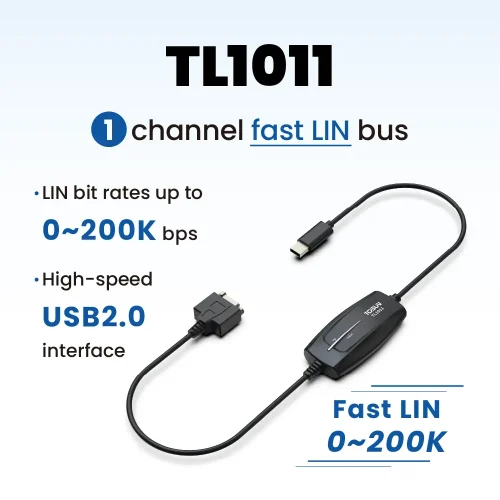

The TL1011, launched by TOSUN, is a portable single channel fast LIN bus to USB interface device. The LIN bus port supports rates from 0 to 200 Kbps. The product connects to a PC via a USB 2.0 interface and supports external DC power. It features a driverless design for Windows and Linux systems, providing excellent system compatibility.
- ARM64 Linux: tsdev
- HarmonyOS: tsdev
Related Products
Related products
TL1011 Functions and parameters
With the powerful TSMaster software, it supports loading DBC, LDF, etc. database files, making it very convenient to monitor, analyze, and simulate LIN bus data. It also supports functions such as UDS diagnostics, ECU flashing and so on.
The secondary development APIs for Windows and Linux can support various development environments such as C++, C#, LabView, Python, etc., making it highly efficient and easy to use, and is convenient to integrate into various testing systems.
- Portable design, facilitating integration into various devices or instrument panels
- The unique free transmission mode can reduce the barriers to developing and debugging the LIN bus systems
- Automotive grade design, supporting DBC files, LDF files, XML files, etc
- Supports UDS diagnostics based on LIN bus
- Supports UDS based Bootloader flashing
- The power supply for this product offers two options:
internal power supply and external power supply. If internal power supply is selected, the maximum output voltage provided by the product is 12V. If external power supply is selected, it can accept a voltage of up to 36V - Supports blf and asc format data recording and offline/online playback

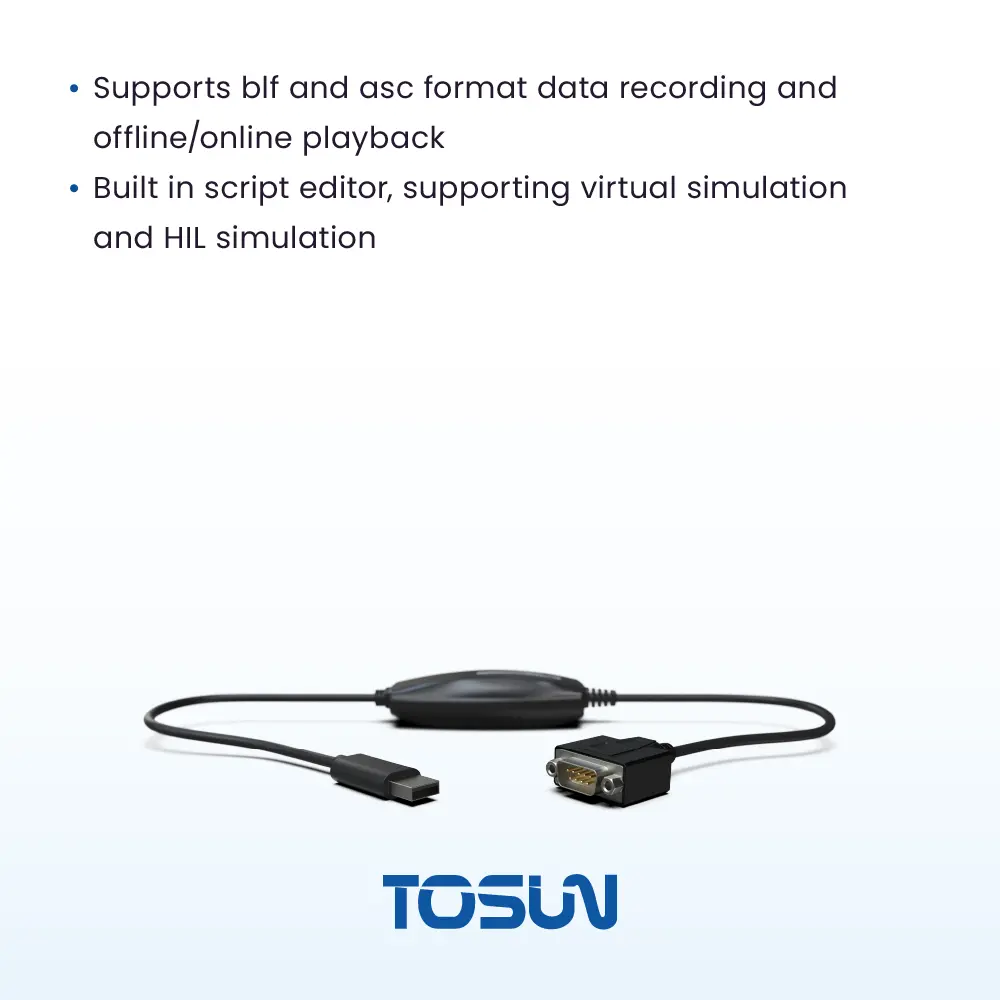

- Built in script editor, supporting virtual simulation and HIL simulation

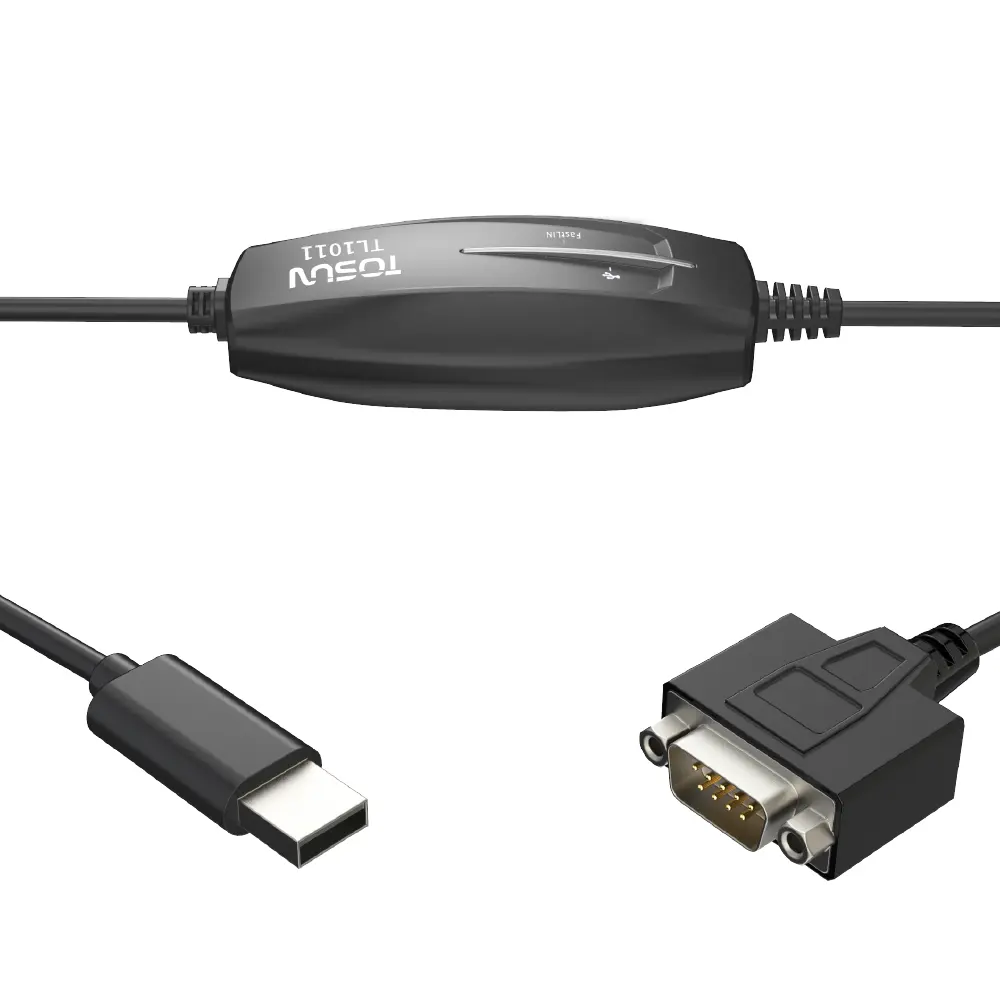

- PIN3 GND
- PIN8 LIN
- PIN9 VBAT_LIN
Typical applications
- ECU Data Acquisition
- Various test benches
- ECU Programming
- Support fast LIN
Specification
| Channel | 1 x Fast LIN |
|---|---|
| PC Interface | USB 2.0 |
| LIN Interface | DB9 |
| Driver | Driver-free design for Windows and Linux systems, ensuring system compatibility |
| LIN | Supports LIN protocol 1.3/2.0/2.1/J2602, with baud rates from 0 to 200Kbps |
| Timestamp Accuracy | 1 μs, hardware message timestamp |
| Schedule Table | Supports LDF files and running schedule tables, and also allows for self configuration of schedule tables |
| Relay Type | Signal relay (not magnetic latching) |
| Power Supply | USB power supply, supports external DC power supply (9-36V) |
| Power Consumption | 1W (typical) |
| Casing Material | Plastic |
| Dimension | Approx. 94 x 48 x 24mm |
| Weight | Approx: 108g (without packaging)/Approx: 303g (with packaging and wiring) |
| Operating Temperature | 80℃ |
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Environment | Keep away from corrosive gases |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
