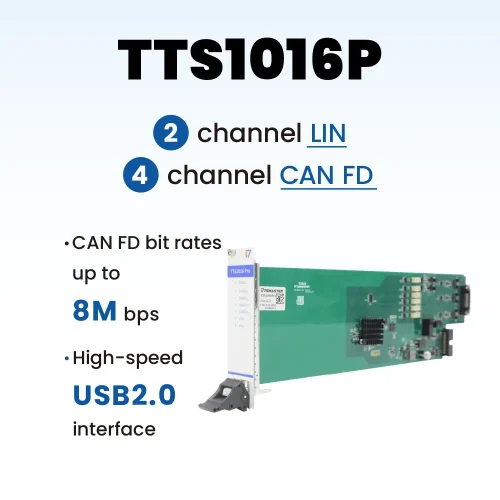

TTS1016P – 4/2 channel CAN FD/LIN bus device

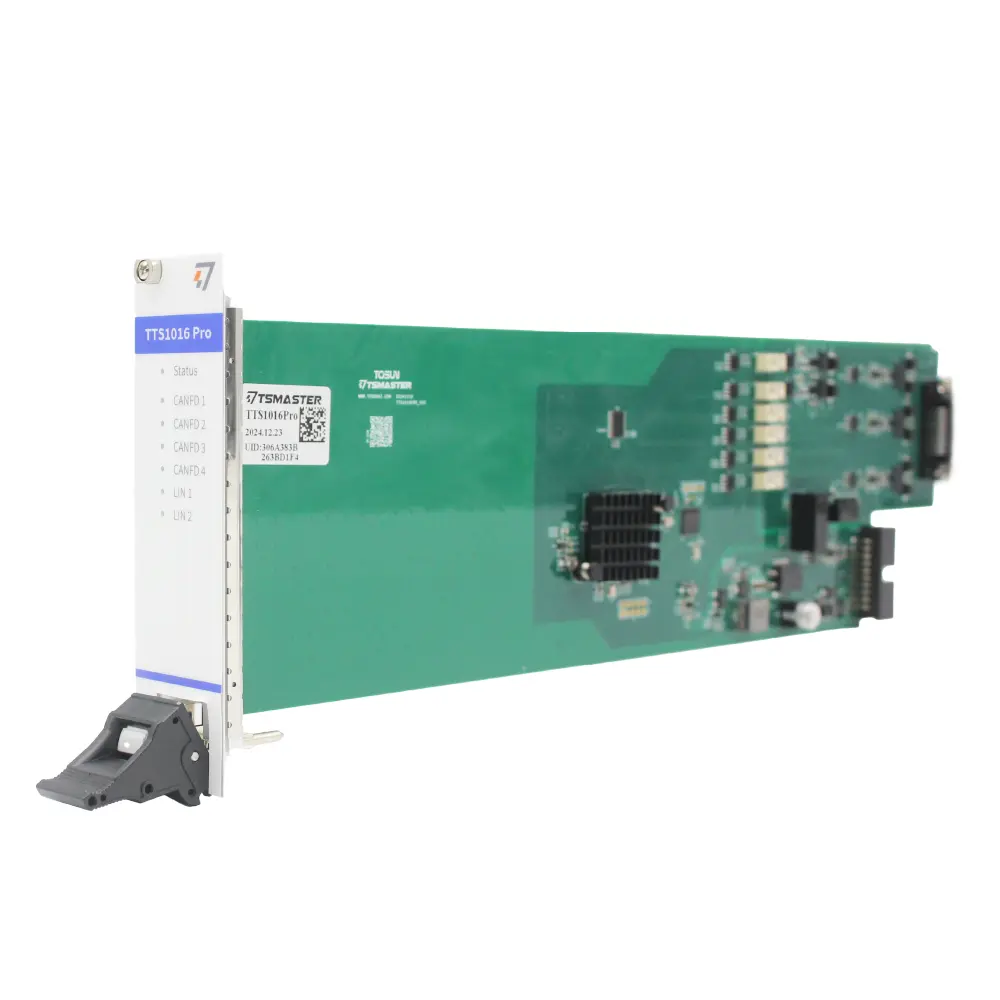

TTS1016 Pro, launched by TOSUN, is a device featuring 4 CAN FD channels and 2 LIN channels. It adopts a chassis slide rail installation method, making it easy to integrate into the TOSUN TTS system.
- ARM64 Linux: tsdev
- HarmonyOS: tsdev
Related Products
Related products
TTS1016P Functions and parameters
The 4 CAN FD channels support a maximum bus rate of 8 Mbps, while the 2 LIN channels support speeds ranging from 0 to 20 kbps.
With the powerful TSMaster software, it supports loading DBC, LDF, ARXML, etc. database files, making it very convenient to monitor, analyze, and simulate CAN FD/LIN bus data, and it also supports functions such as UDS diagnostics, ECU flashing, CCP/XCP calibration, etc.
- μs (microsecond) level hardware message timestamps to meet advanced requirements
- CAN channel DC 2500V isolation
- CAN channel baud rate adjustable from 125 Kbps to 1 Mbps, and CAN FD supports a maximum of 8 Mbps
- Supports blf and asc format data recording and offline/online playback
- Supports UDS diagnostics and CCP/XCP calibration
- Supports UDS based Bootloader flashing
- Supports UDS diagnostics based on the LIN bus
- Supports secondary development interfaces for Windows and Linux systems
- Capable of loading all paid licenses for TSMaster
Hardware Interface
- Pin 1 CAN_Shield
- Pin 2 GND
- Pin 3 CAN 1_Low
- Pin 4 CAN 1_High
- Pin 5 CAN 2_Low
- Pin 6 CAN 2_High
- Pin 7 CAN_Shield
- Pin 8 GND
- Pin 9 CAN 3_Low
- Pin 10 CAN 3_High
- Pin 11 CAN 4_Low
- Pin 12 CAN 4_High
- Pin 13 CAN_Shield
- Pin 14 GND
- Pin 15 LIN 1
- Pin 16 GND
- Pin 17 LIN 2
- Pin 18 GND
- Pin 19 VCC
- Pin 20 GND
Typical applications
Specification
| Channel | 2 x LIN / 4 x CAN FD |
|---|---|
| PC Interface | Converted to USB 2.0 via backplane slot |
| Communication Port Interface | SCSI 26 Pin Interface |
| Driver | Driver-free design for Windows and Linux systems, ensuring system compatibility |
| Buffer | Each channel supports a transmit buffer of up to 1000 CAN frames |
| CAN | Supports CAN 2.0A, B protocols, compliant with ISO11898-1 standard, with baud rate 125 Kbps to 1 Mbps |
| CAN FD | Supports CAN FD that complies with both ISO and non-ISO standards, with baud rates from 125 Kbps to 8 Mbps |
| LIN | Supports LIN 1.3/2.0/2.1/J2602, baud rate 0 to 20 Kbps |
| Schedule Table | Supports LDF files and running schedule tables, and also allows for self configuration of schedule tables |
| Timestamp Accuracy | 1 μs hardware message timestamp |
| Relay Type | Magnetic latching relay |
| * | Single channel at 1 Mbps with a 0 byte data field |
| Isolation | CCAN channel DC 2500 V isolation |
| Power Supply | USB power supply + DC power supply |
| Power Consumption | 5 W |
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Environment | keep away from corrosive gases |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
