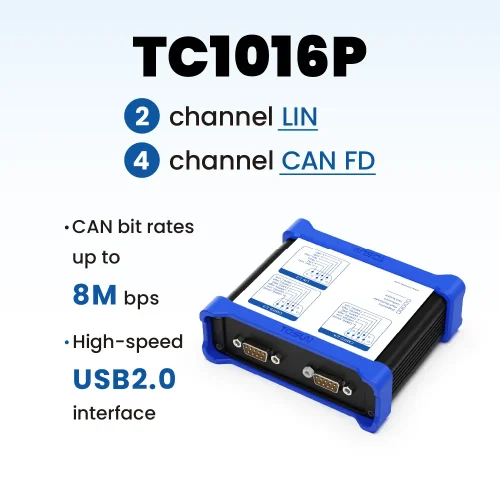

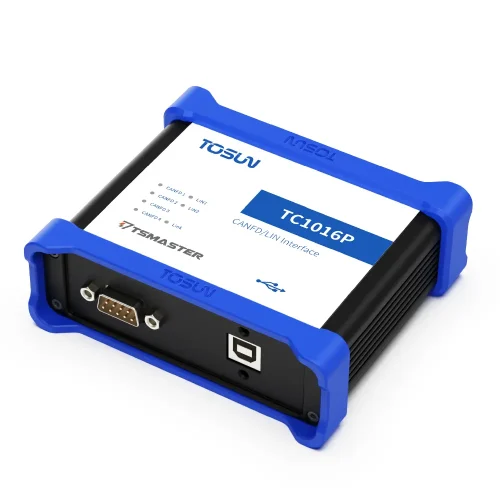

TC1016P – 4 CAN FD, 2 LIN to USB interface
TC1016P is a multi channel CANFD and LIN bus interface device introduced by TOSUN. It supports a maximum CAN FD bus rate of 8 Mbps and LIN bus rates ranging from 0 to 20 Kbps.
- ARM64 Linux: tsdev
- HarmonyOS: tsdev
Related Products
Related products
TC1016P Functions and parameters
The product utilizes a high-speed USB 2.0interface for connection to a PC, and it’ s driver-free design is compatible with both Windows and Linux systems.
With the powerful TSMaster software, the device supports loading DBC, LDF, ARXML database files,enabling convenient monitoring, analysis, and simulation of CAN FD/LIN bus data.It also supports functions such as UDS diagnostics, ECU flashing, CCP/XCP calibration, among others.
The device is suitable for secondary development APIs on Windows and Linux, supporting various development environments such as C++, C#, LabView, Python, making it easy to integrate into various testing systems for efficient and user friendly operation.
- Hardware message timestamping at the microsecond (μs) level, meeting advanced requirements
- High-speed USB 2.0 interface with driver-free design for Windows and Linux systems, ensuring system compatibility
- CAN channel isolation up to DC2500V
- Automotive-grade design, supporting LDF, dbc, a2l, blf, asc, and arxml file formats
- CAN channel baud rate adjustable from 125Kbps to 8Mbps
- The power supply for this product offers two options:
internal power supply and external power supply. If internal power supply is selected, the maximum output voltage provided by the product is 12V. If external power supply is selected, it can accept a voltage of up to 36V. - Support for blf and asc format data logging and offline/online replay
- Supports UDS diagnostics and CCP/XCP calibration
- Supports UDS-based Flash Bootloader
- Supports LIN bus-based UDS diagnostics
- Supports information security testing

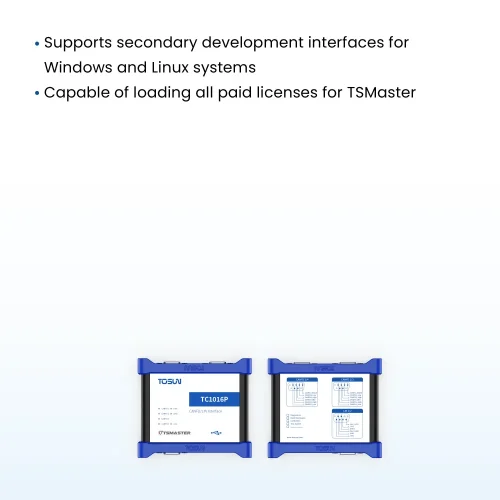

- Secondary development interfaces available for Windows and Linux systems
- Built-in 120-ohm terminal resistor configurable through software
- Supports all paid licenses for TSMaster software
CAN FD 1/3
- PIN2 CANFD1 _ Low
- PIN3 CANFD _ GND
- PIN4 CANFD3 _ Low
- PIN5 CANFD _ Shield
- PIN7 CANFD1_High
- PIN8 CANFD3_High
CAN FD 2/4
- PIN2 CANFD2 _ Low
- PIN3 CANFD _ GND
- PIN4 CANFD4 _ Low
- PIN5 CANFD _ Shield
- PIN7 CANFD2_High
- PIN8 CANFD4_High
LIN 1/2
- PIN2 GND
- PIN3 GND
- PIN6 LIN2
- PIN8 LIN1
Typical applications
- Whole vehicle multi channel CAN FD/CAN/LIN bus data acquisition
- Domain controller testing
- Various automated testing systems
- ECU flashing
Specification
| channel | 4 x CAN FD 2 x LIN |
|---|---|
| PC End | High-speed USB 2.0 interface |
| CAN/LIN End | DB9 interface |
| Driver | Driver-free design for Windows and Linux systems, ensuring system compatibility |
| Buffer | Each channel supports a transmit buffer of up to 1000 CAN frames |
| CAN | Supports CAN 2.0A, B protocols, compliant with ISO11898-1 standard, with baud rate 125Kbps-1Mbps |
| CAN FD | Supports CAN FD that complies with both ISO and non-ISO standards, with baud rates from 125Kbps to 8Mbps |
| LIN | Supports LIN 1.3 and 2.0, baud rate from 0 to 20Kbps |
| Schedule Table | Supports LDF files and running scheduling tables, or configuring scheduling tables independently |
| Timestamp | 1μs hardware message timestamp |
| Terminal Resistor | Built-in 120-ohm terminal resistor, software configurable |
| * | Single channel at 1 Mbps with a 0-byte data field |
| Isolation | CAN channel isolation up to DC2500V, electrostatic discharge level ±8KV |
| Power Supply | USB-powered |
| Casing Material | Aluminum |
| Dimensions | 100 x 80 x 30mm |
| Operating Temperature | -40℃～80℃ |
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Environment | Keep away from corrosive gases |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
