TTS0001 – Rack slot/chassis

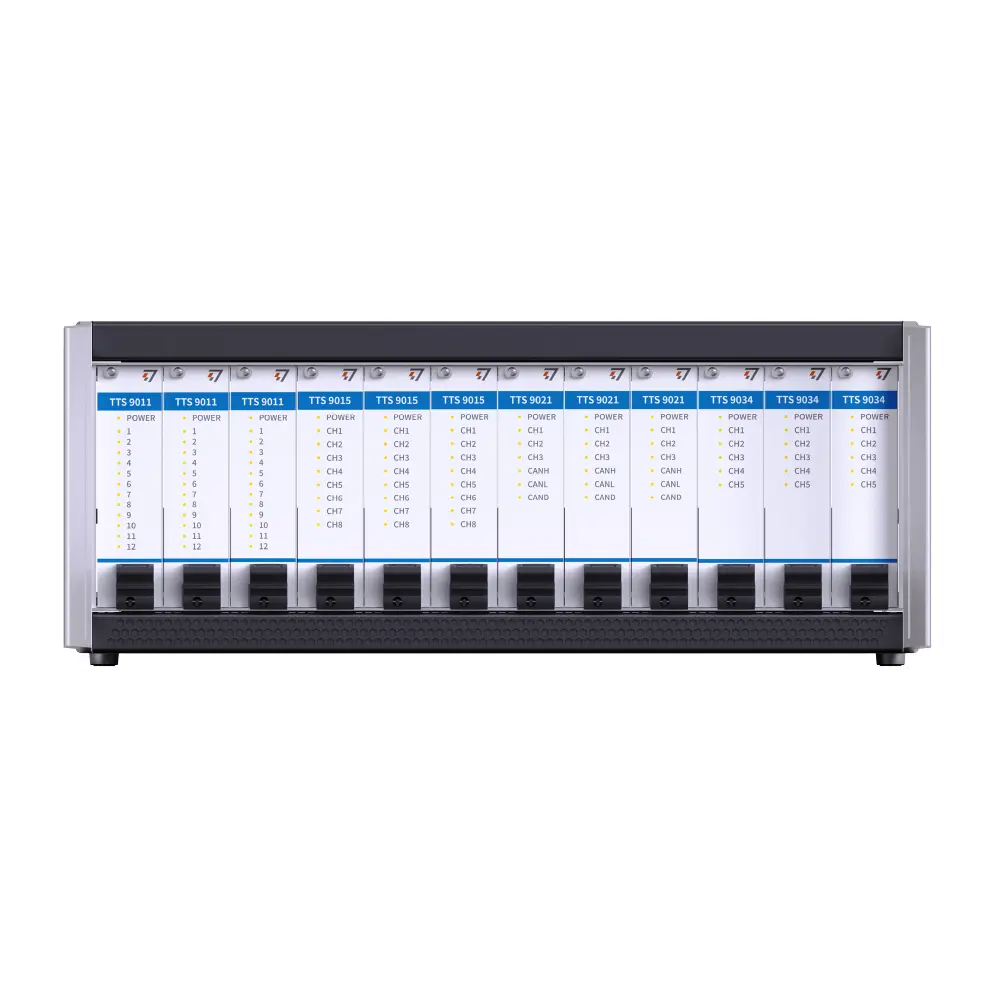

TTS0001 is a rack slot/chassis for mounting the TOSUN TTS9000 series 3U height board card devices, supporting a maximum of 12 board cards to be used simultaneously.
Support:
Related Products
Related products
TTS0001 Functions and parameters
Hardware Interface
- Simplified female header 20 pin interface board card slot
- USB interface:
3 pin phoenix terminal interface CAN communication
2 pin phoenix terminal interface DC power supply
Typical applications
Specification
| Number of slots | 12 |
|---|---|
| On board terminal resistor (bus) | 60 Ω |
| Overcurrent capacity | 10 A |
Caution! Avoid Short Circuits Before using the equipment, carefully review the pin information in the product user manual.
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
Caution! Damage from Electrostatic Discharge (ESD) Beware! Electrostatic discharge (ESD) can potentially damage or destroy components on the card. Take preventive measures to avoid ESD and protect the components.
