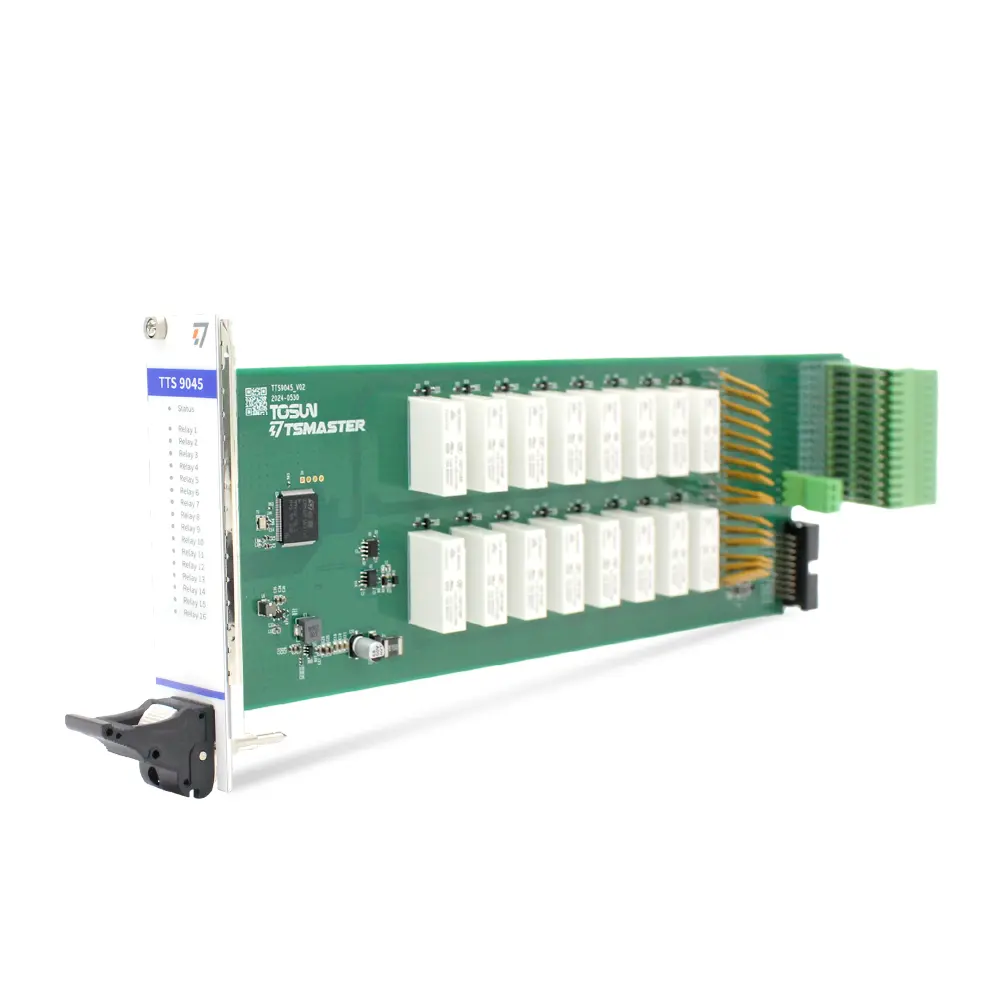

TTS9045 – General Purpose Relay Board
TTS9045 is a general purpose relay board card with 16 channels. Each channel is controlled by one relay, and each relay has three terminals (CH/NO/NC).
Related Products
Related products
TTS9045 Functions and parameters

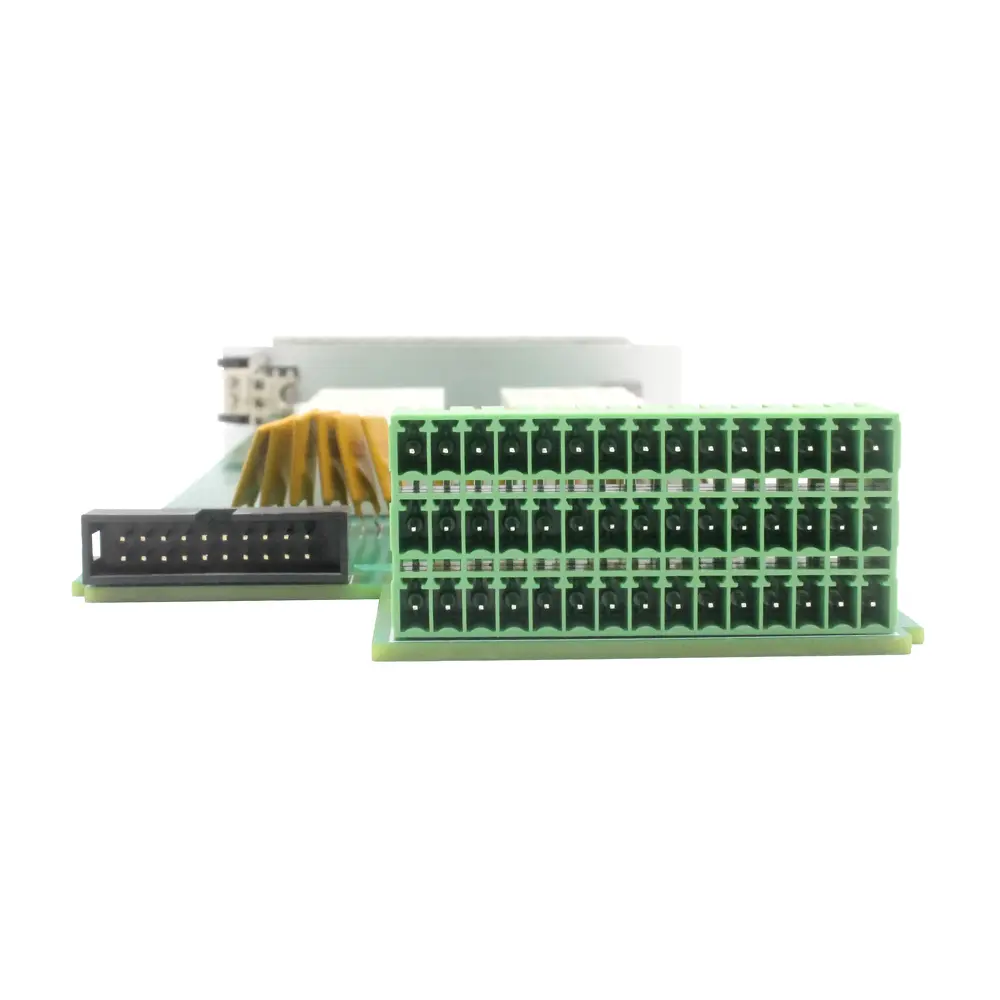

Hardware Interface
| CH 1 | NO 1 | NC 1 |
| CH 2 | NO 2 | NC 2 |
| CH 3 | NO 3 | NC 3 |
| CH 4 | NO 4 | NC 4 |
| CH 5 | NO 5 | NC 5 |
| CH 6 | NO 6 | NC 6 |
| CH 7 | NO 7 | NC 7 |
| CH 8 | NO 8 | NC 8 |
| CH 9 | NO 9 | NC 9 |
| CH 10 | NO 10 | NC 10 |
| CH 11 | NO 11 | NC 11 |
| CH 12 | NO 12 | NC 12 |
| CH 13 | NO 13 | NC 13 |
| CH 14 | NO 14 | NC 14 |
| CH 15 | NO 15 | NC 15 |
| CH 16 | NO 16 | NC 16 |
Typical applications
Specification
| Number of channels: | 16 |
|---|---|
| Operating voltage | 12 V |
| Static power consumption | 0.4 W |
| Communication control | CAN 1 Mbps |
| Relay type | Power relay |
| Board card height | 3 U |
| Mounting method | Chassis slide rail |
Caution! Avoid Short Circuits Before using the equipment, carefully review the pin information in the product user manual.
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
Caution! Damage from Electrostatic Discharge (ESD) Beware! Electrostatic discharge (ESD) can potentially damage or destroy components on the card. Take preventive measures to avoid ESD and protect the components.
