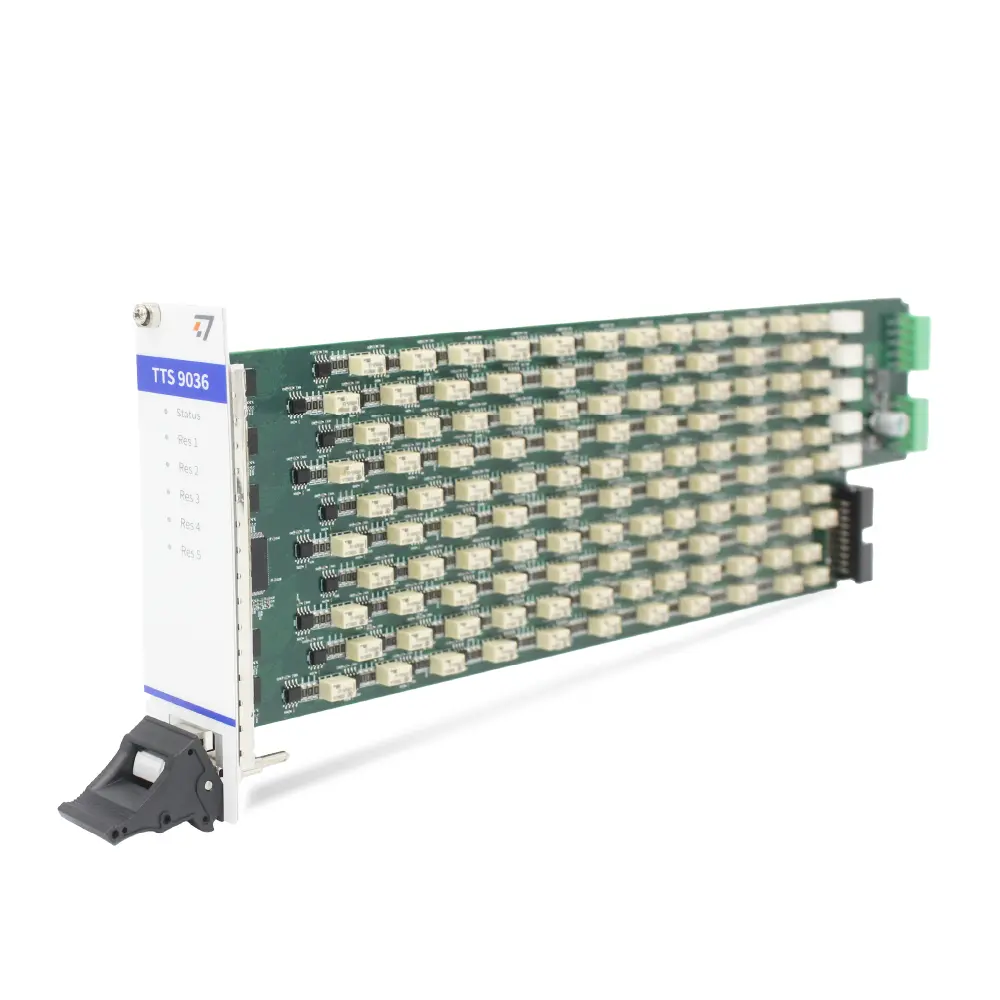

TTS9036 – Resistor Board

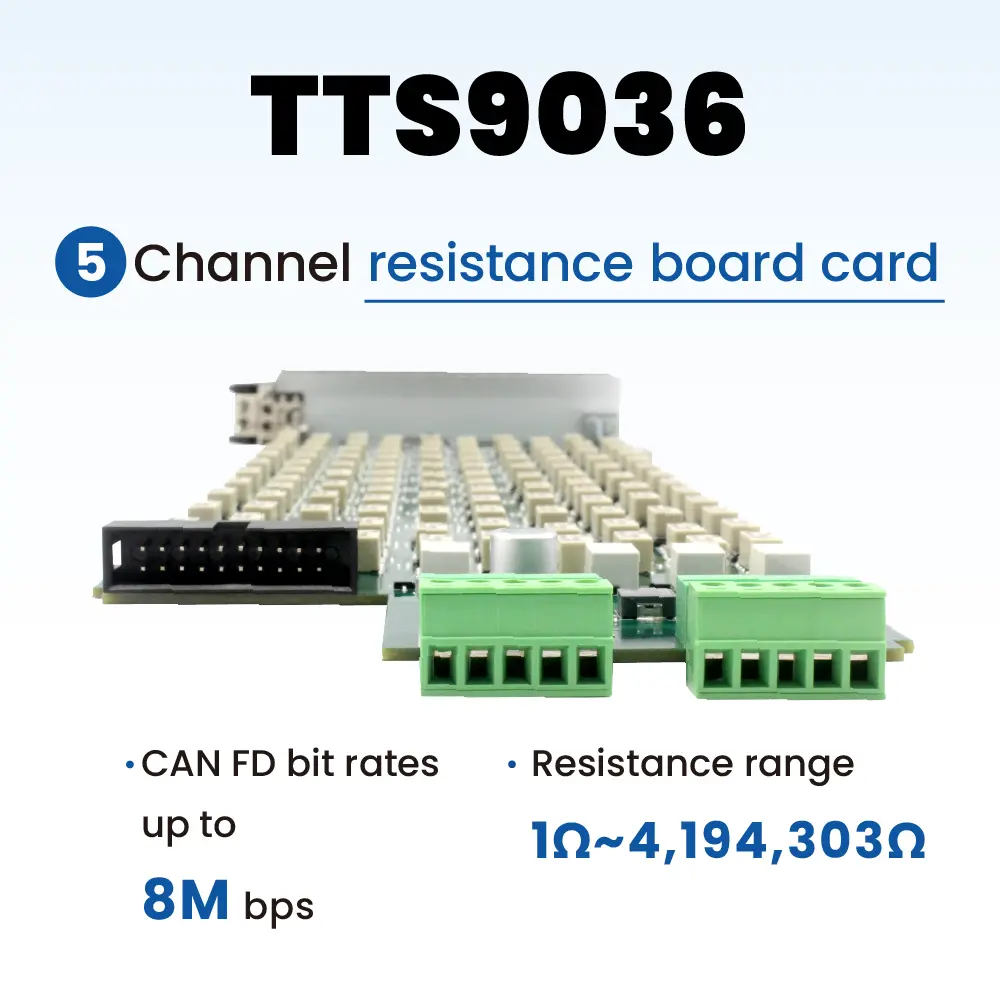

TTS9036 is a resistance board card with a total of 5 independent channels. Each channel can output resistance from 1 to 4194303Ω.
Related Products
Related products
TTS9036 Functions and parameters
In cases where the resolution or range is insufficient, the channels can also be used in parallel or series. This resistance board card can be utilized in various signal systems and can simulate functions such as thermistors or resistive sensors.
Functional Data
| Output Resistance Range | 1 Ω ~ 4194303 Ω |
| Step Value | 1 Ω |
| Resistance Accuracy | 1 Ω ~ 500 Ω, accuracy ±0.5 Ω 500 Ω~4194303 Ω, accuracy±0.1% |
| Resistance Power | 1/4 W |
Hardware Interface
- 5 pin phoenix terminal interface
| CH5 |
| CH4 |
| CH3 |
| CH2 |
| CH1 |
Typical applications
Specification
| Number of channels: | 5 |
|---|---|
| Operating voltage | 12 V |
| Static power consumption | 0.6 W |
| Communication control | CAN 1 Mbps |
| Relay type | Magnetic latching relay |
| Board card height | 3 U |
| Mounting method | Chassis slide rail |
Caution! Avoid Short Circuits Before using the equipment, carefully review the pin information in the product user manual.
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
Caution! Damage from Electrostatic Discharge (ESD) Beware! Electrostatic discharge (ESD) can potentially damage or destroy components on the card. Take preventive measures to avoid ESD and protect the components.
