1 CAN to USB interface – TC1001
SKU : TC1001

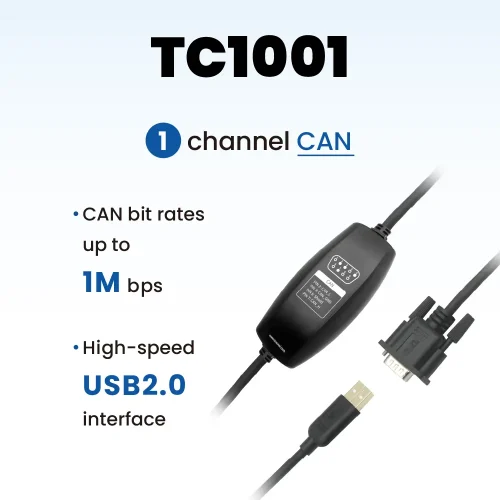

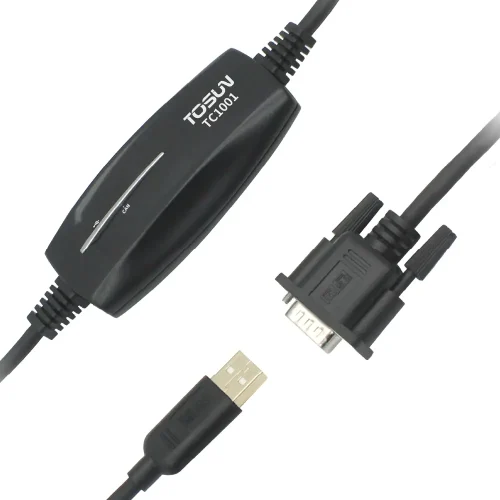

TC1001 is a portable and easy-to-install 1 channel CAN bus to USB interface device launched by TOSUN.With a maximum speed of 1Mbps, the product utilizes a high-speed USB 2.0 interface for PC connectivity and features driverless design for Windows systems, ensuring compatibility.
Datasheet
UserManual
Related Products
Related products
TC1001 Functions and parameters
Complemented by the powerful TSMaster software, it supports loading DBC and ARXML database files. This allows users to conveniently monitor, analyze, and simulate CAN bus data. Additionally, it supports functions such as UDS diagnostics, ECU flashing, CCP/XCP calibration, and more.
Furthermore, it offers secondary development APIs for Windows and Linux, supporting various development environments such as C++, C#, LabView, Python, and more, making it easily integrable into various testing systems, ensuring high efficiency and ease of use.
- Microsecond (μs)-level hardware message timestamping to meet advanced requirements
- Portable design with uniquely designed mounting holes for easy integration into various devices or instrument panels
- High-speed USB 2.0 interface, driverless design for Windows systems, ensuring system compatibility
- CAN channel isolated at DC 2500V
- Automotive-grade design, supporting dbc files, a2l files, blf files, asc files
- Supports data recording in BLF format and offline/online playback
- Supports UDS diagnostics and CCP/XCP calibration
- Supports UDS-based Flash Bootloader
- Offers secondary development interfaces for Windows and Linux systems
- Built-in -ohm termination resistor configurable via software
- Capable of loading all paid licenses of TSMaster
-
PIN2 CAN _ Low
-
PIN3 CAN _ GND
-
PIN5 CAN _ Shield
-
PIN7 CAN_High
Typical applications
- ECU data collection
- Various test benches
- ECU flashing
Specification
| channel | 1 x CAN |
|---|---|
| PC End | High-speed USB 2.0 interface |
| CAN End | DB9 interface |
| Driver | Driver-free design for Windows and Linux systems, ensuring system compatibility |
| Buffer | Each channel supports a transmit buffer of up to 1000 CAN frames |
| CAN | Supports CAN2.0A, B protocols, compliant with ISO11898-1 standard, baud rate 5Kbps—1Mbps |
| Timestamp | 1μs hardware message timestamp |
| Termination Resistor | Built-in 120-ohm termination resistor, software configurable |
| * | Single channel at 1Mbps with a 0-byte data field |
| Isolation | CAN channel isolated at DC 2500V, electrostatic discharge level ±8KV |
| Power Supply | USB-powered |
| Casing Material | Plastic |
| Operating Temperature | -40℃～85℃ |
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Environment | Keep away from corrosive gases |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
