TC1013HV – 2 CAN FD bus interface

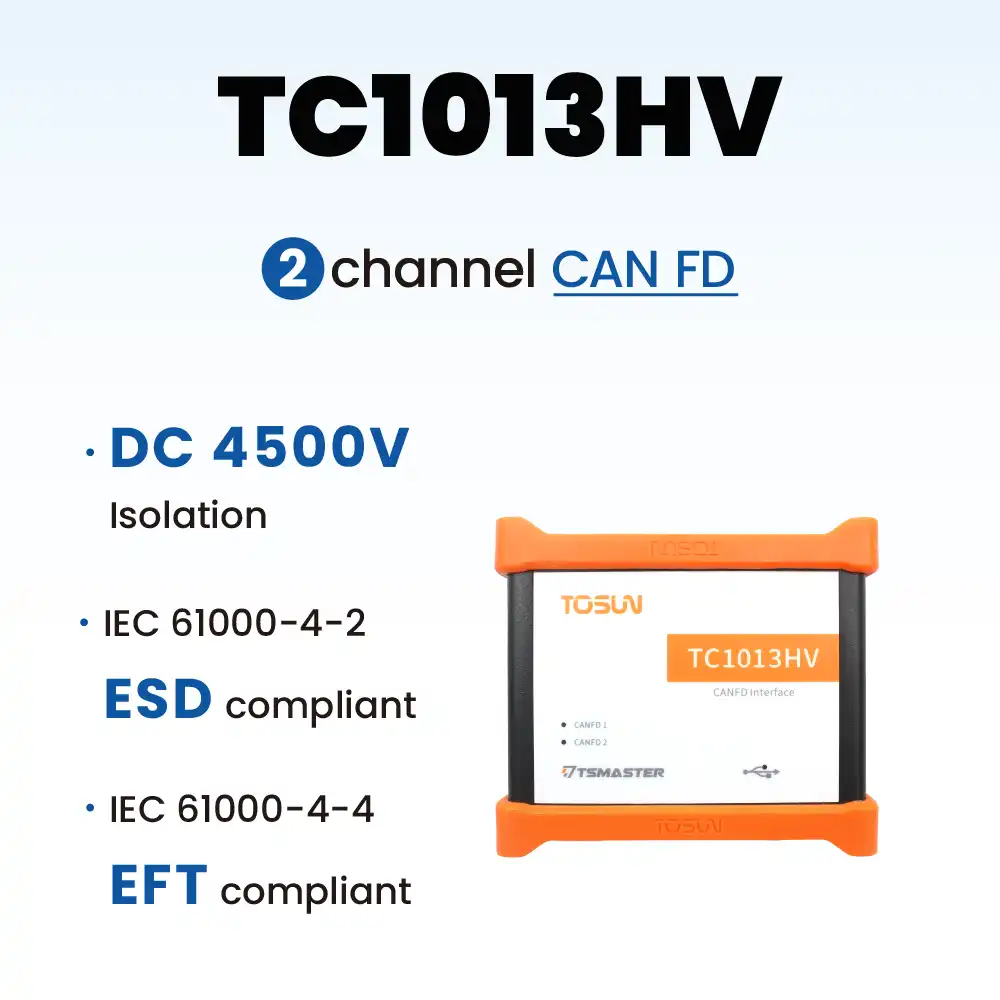

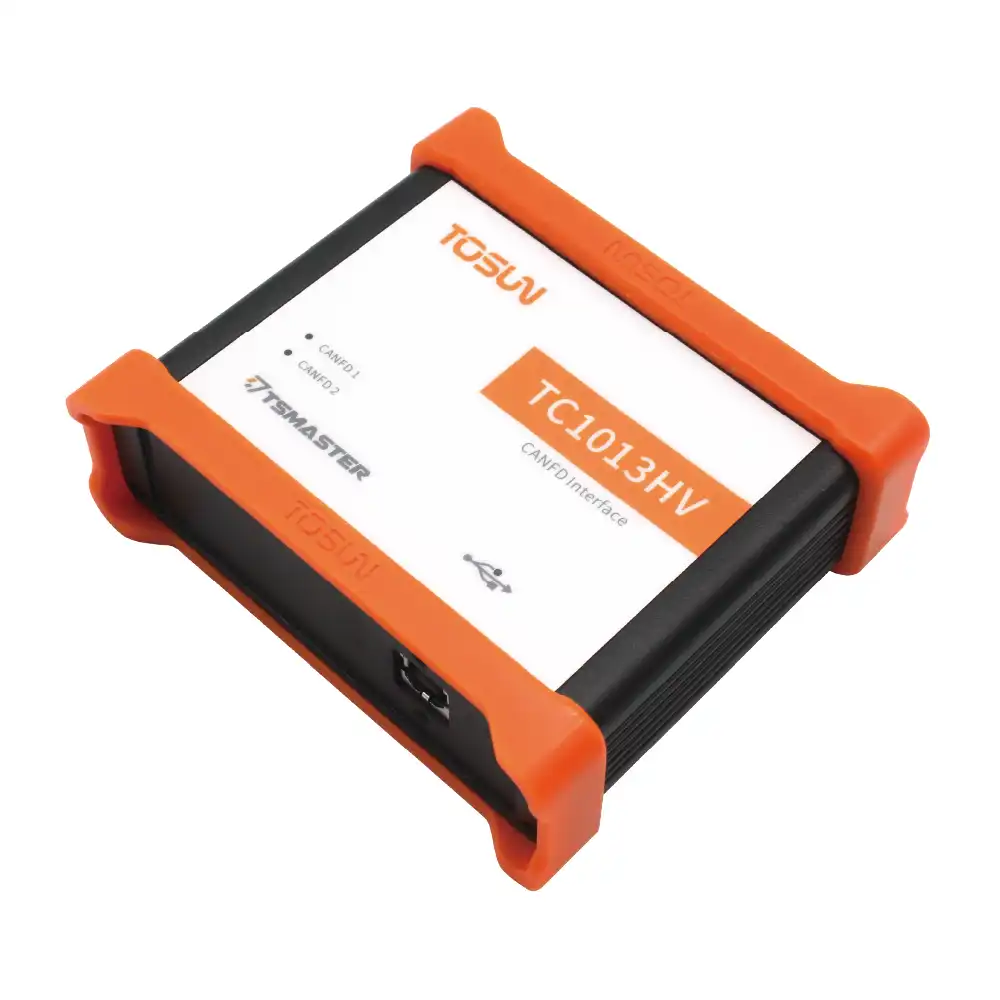

TC1013HV is a dual-channel CAN FD interface device developed by TOSUN. It supports CAN FD bus rates up to 8 Mbps and connects to the PC via a USB 2.0 interface.

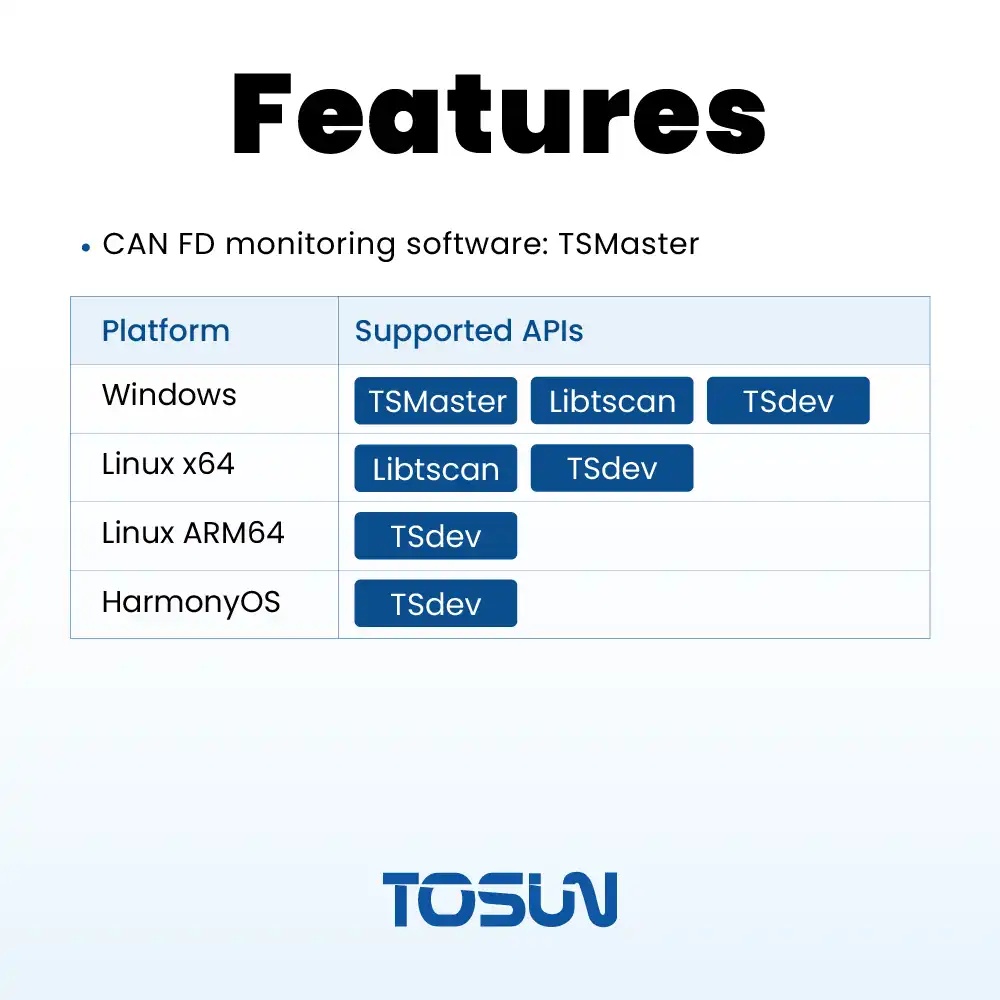

With driver-free support for both Windows and Linux systems, the device offers excellent system compatibility.
- ARM64 Linux: tsdev
- HarmonyOS: tsdev
Related Products
Related products
TC1013HV Functions and parameters
The TC1013HV also features 4.5 kV DC galvanic isolation, enabling reliable operation in demanding EMC test environments. In addition, it meets IEC 61000-4-2 ESD immunity levels (±8 kV contact, ±15 kV air) and IEC 61000-4-4 EFT immunity requirements (±2 kV), ensuring robust performance under harsh electromagnetic conditions.
When used with the powerful TSMaster software, it supports loading DBC and ARXML database files, enabling easy monitoring, analysis, and simulation of CAN FD bus data. It also supports UDS diagnostics, ECU flashing, and CCP/XCP calibration.
- Hardware-level timestamp accuracy in the microsecond range, providing precise timing references for advance simulation and diagnostics.
- USB driver-free design. Fully plug-and-play under Windows and Linux with excellent system compatibility.
- 4500 VDC galvanic isolation per CAN channel. Automotive-grade design ensures stability under harsh conditions.
- Software-configurable 120Ω CAN termination for versatile network topologies.
- Fully compatible with mainstream formats such as DBC, and A2L. Seamless integration with all TSMaster licensed features.
- Supports BLF data logging and playback, UDS diagnostics, CCP/XCP calibration, and Flash Bootloader operations.
- Provides cross-platform APIs for secondary development.
1
- PIN 2 CAN 2_Low
- PIN 3 CAN_GND
- PIN 5 CAN_Shield
- PIN 7 CAN 2_High
- PIN8 CANFD2_High
2
- Pin 2 CAN 1_Low
- Pin 3 CAN_GND
- Pin 5 CAN_Shield
- Pin 7 CAN 1_High
Typical applications
- Synchronized CAN FD data acquisition and analysis
- Domain controller simulation, testing, and diagnostics
- Automated and durability test system development
- Vehicle diagnostics, ECU calibration, and flashing
Specification
| PC Interface | USB 2.0 |
|---|---|
| Timestamp Accuracy | 1μs hardware message timestamp |
| Driver | Cross-platform driver-free design |
| Interface PIN | Standard D-Sub, 9-pin |
| License | Compatible with all TSMaster paid license modules |
| Power Supply | USB power supply |
| Power Consumption | 2.5 W |
| ESD Protection Level | Contact Discharge: 8 kV, Air Discharge: 15 kV |
| Case Material | Plastic |
| Dimension | Approx. 113 x 98 x 38 mm |
| Weight | Approx. 162.5 g |
| Operating Temperature | -40°C ~ 80°C |
| Operating Humidity | 10% to 90% (non-condensing) |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
