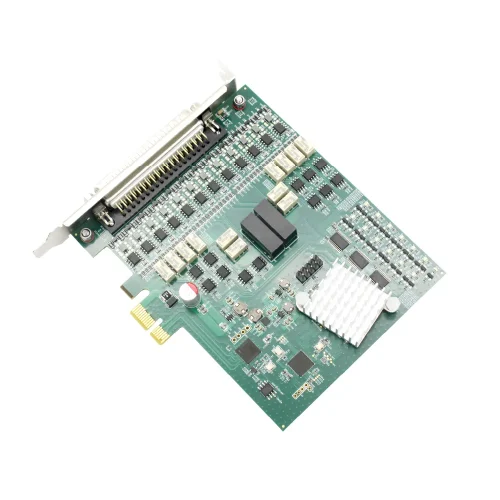

TP1018 – 12 CAN FD to PCIe interface

TP1018 is a device featuring a 12 channel CAN FD bus to PCIe interface; it easily handles tasks such as CAN FD/CAN network development, simulation, and testing.

The TP1018 interface card allows computers with PCIe slots to conveniently connect to CAN/CAN FD bus networks, monitoring multiple bus networks in real-time. It is compact in size and can be easily integrated into onboard industrial control computers, single-board computers (SBCs), portable industrial host machines, and industrial laptops. It’s easy to install and use.

When paired with the powerful TSMaster software, it offers convenient monitoring, analysis, and simulation of CAN FD
bus data. It also supports functionalities like UDS diagnostics, ECU flashing, and CCP/XCP calibration.

Its secondary development API supports various development environments such as C++, C#, LabView, Python, making it convenient to integrate into various testing systems while being efficient and user-friendly.

• Hardware-level message timestamping in microseconds, meeting advanced requirements
• Supports secondary development interfaces for Windows and Linux systems
• Due to system limitations in Linux, it cannot run all channels at full load
• Standard PCIe x1 interface
• Number of channels: 12 channel isolated CAN FD interface, offering standard DB-9 connectors via adapter cables
• CAN channel isolation up to DC 2500V
• Automotive grade design, supporting DBC, A2L, BLF, ASC, and ARXML files
• Supports BLF and ASC format data recording and offline/online playback
• Supports UDS diagnostics and CCP/XCP calibration
• Supports UDS-based Flash Bootloader
• Supplementary secondary development APIs for Windows and Linux systems
• Can load all paid licenses for TSMaster software
