Tlog1002 – 2 CAN FD/LIN bus datalogger

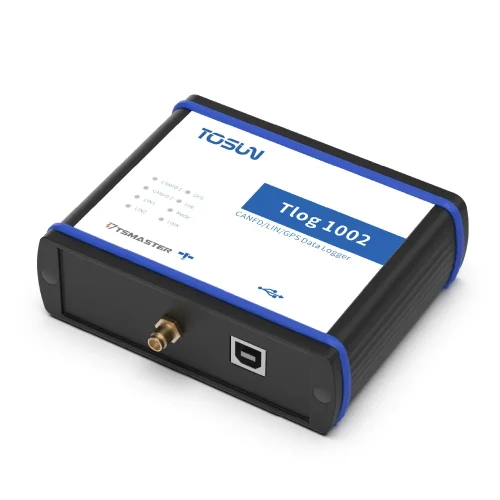

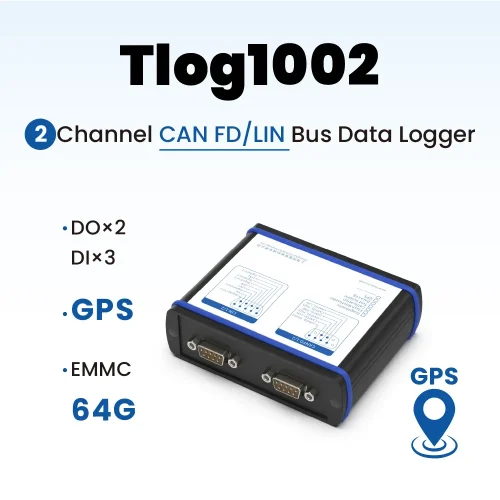

TLog1002 is a multi-channel CAN FD bus, LIN bus interface logger device launched by TOSUN. It supports a maximum CAN FD bus rate of 8 Mbps and a LIN bus rate of 0 to 200k bps.
Datasheet
UserManual
TSCANLogger
Software
TSLogger_new ver.
Software
CE cert.
UL cert.
RoHS cert.
Related Products
Related products
Tlog1002 Functions and parameters
It features multiple built-in digital and analog I/O interfaces, facilitating various signal measurements and system integrations. The product uses a high-speed USB 2.0 interface to connect with a PC and comes with a built-in 64GB storage capacity. Its driver-free design for Windows systems ensures compatibility.
Collaborating with the powerful TSMaster software, it supports loading DBC and ARXML database files, allowing convenient monitoring, analysis, and simulation of CAN bus data. Additionally, it provides support for functionalities such as UDS diagnostics, ECU flashing, CCP/XCP calibration, among others.
It can be used with secondary development APIs for Windows and Linux, supporting various development environments such as C++, C#, LabView, Python, facilitating integration into diverse testing systems, ensuring efficiency and ease of use.
- Hardware message timestamping at microsecond (μs) level, meeting advanced requirements
- High-speed USB 2.0 interface, driver-free design for Windows, ensuring system compatibility
- CAN channel isolation up to DC 2500V
- Automotive-grade design, supporting dbc, a2l, blf, and asc files
- Support for blf and asc format data recording and offline/online replay
- Built-in script editing supporting virtual and emi-physical simulation
- Supports UDS diagnostics and CCP/XCP calibration
- Compatible with Tosunai’s CAN/LIN Flash Bootloader series software
- Secondary development interfaces available for Windows and Linux systems
- Unique LIN message free transmission mode, reducing LIN bus development and debugging thresholds
- Independent usage without PC connectivity
- Support for GPS functionality.
*Resistor Configuration: No internal termination resistors are included. External resistors must be configured by the user based on the specific application.

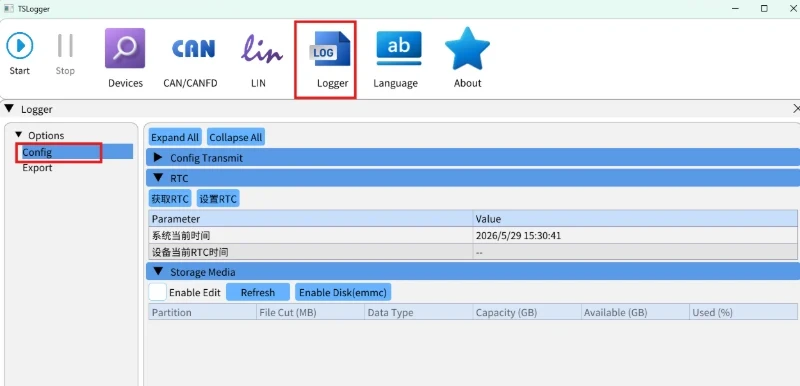

A new and improved version of TSLogger is now available.
Both the new and legacy versions can be downloaded and used.
LIN 1/2 I/O
- PIN 2 CANFD1 _ Low
- PIN 3 CANFD _ GND
- PIN 4 CANFD2 _ Low
- PIN 5 CANFD _ Shield
- PIN 7 CANFD1_High
- PIN 8 CANFD2_High
CAN FD 1/2
- PIN 1 Digital_In1
- PIN 2 Digital_In2
- PIN 3 GND
- PIN 4 Digital_Out1
- PIN 5 Digital_Out2
- PIN 6 LIN1
- PIN 7 Digital_In3
- PIN 8 LIN1
- PIN 9 Vbat
Typical applications
- Road Experiment Data Collection
- High-altitude, High-temperature, High-humidity Tests
- Bench Testing and Calibration
Specification
| channel | 2 x CANFD/2 x LIN |
|---|---|
| PC End | High-speed USB 2.0 interface |
| CAN/LIN End | DB9 interface |
| driver | Driver-free design for Windows and Linux systems, ensuring system compatibility |
| Buffer | Each channel supports a transmit buffer of up to 1000 CAN frames |
| CAN | Supports CAN 2.0A, B protocols, compliant with ISO11898-1 standard, with baud rate 125Kbps-1Mbps |
| CAN FD | Supports CAN FD that complies with both ISO and non-ISO standards, with baud rates from 100Kbps to 8Mbps |
| LIN | Supports LIN 1.3 and 2.x, baud rate 0—20Kbps |
| Timestamp | 1μs hardware message timestamp |
| Isolation | CAN channels isolated up to DC 2500V, with ESD protection of ±8KV (contact discharge) |
| Power supply | USB-powered or external 9-36V power supply |
| Operating Temperature | -40℃ to 80℃ |
| Casing Material | Aluminum |
| * | Single channel at 1 Mbps with a 0-byte data field |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
