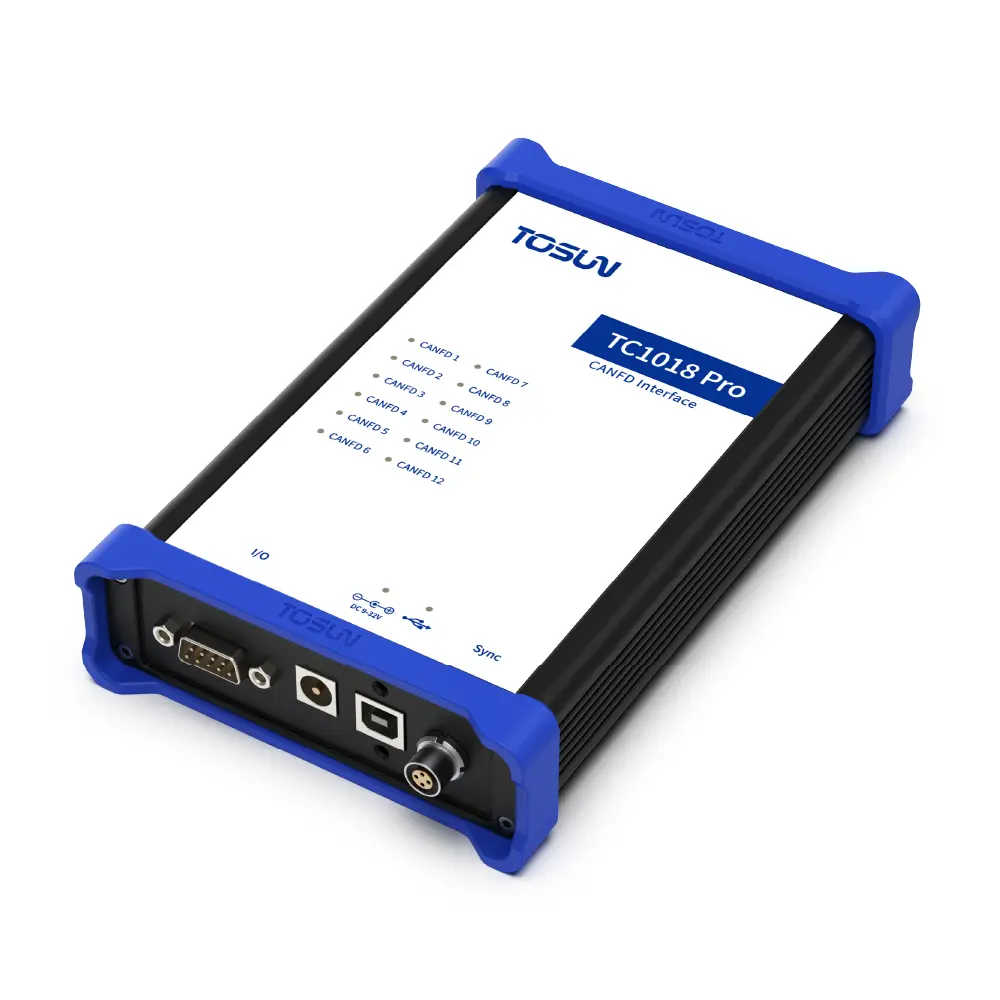

TC1018 Pro – 12 channel CAN FD bus and I/O interfaces

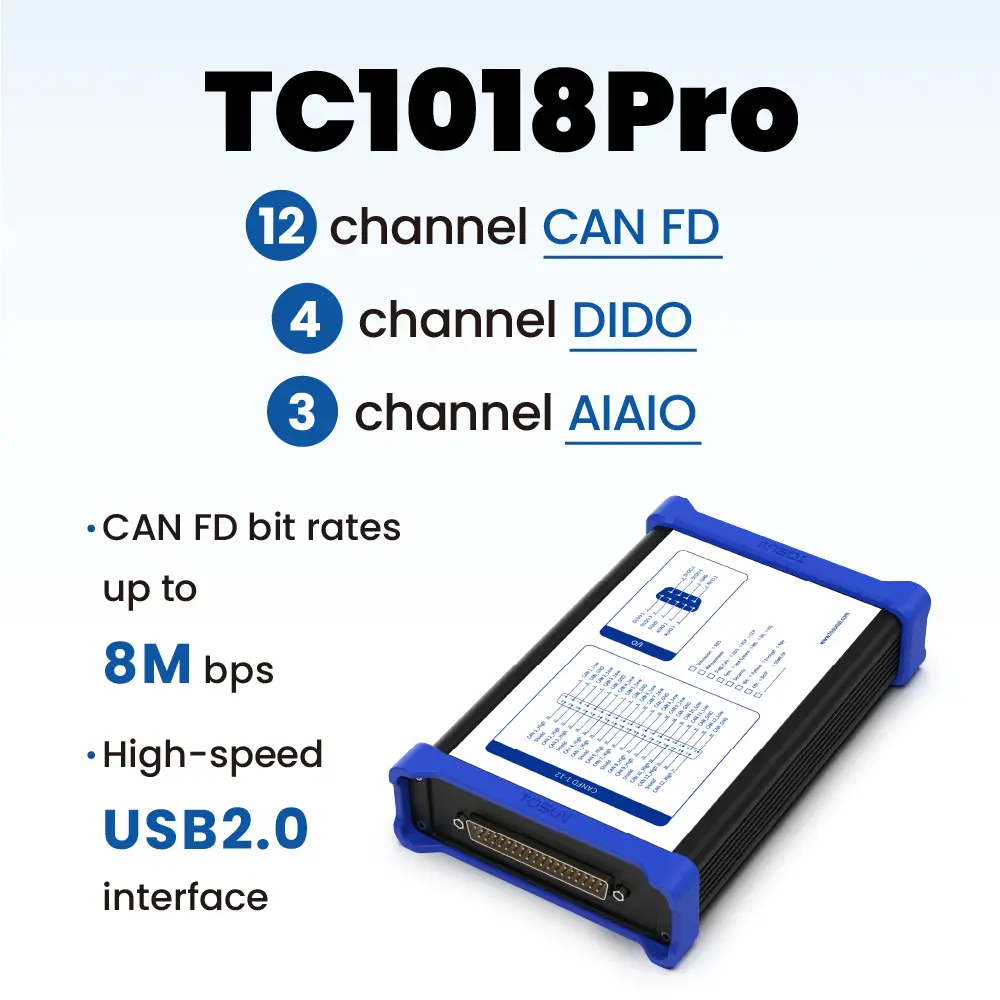

The TC1018 Pro is a 12 channel CAN FD bus and I/O interfaces device launched by TOSUN. It supports adjustable baud rates from 125 Kbps to 1 Mbps under the CAN protocol and up to 8 Mbps under the CAN FD protocol.
- ARM64 Linux: tsdev
- HarmonyOS: tsdev
Related Products
Related products
TC1018Pro Functions and parameters
The product uses a USB 2.0 interface to connect with the PC and features a driverless design for Windows system, ensuring excellent system compatibility.
With the powerful TSMaster software, it supports loading DBC and ARXML database files, making it very convenient to monitor, analyze, and simulate CAN FD bus data, and it also supports functions such as UDS diagnostics, ECU flashing, CCP/XCP calibration, etc.
The secondary development APIs for Windows and Linux can support various development environments such as C++, C#, LabView, Python, etc., making it highly efficient and easy to use, and is convenient to integrate into various testing systems.
- μs (microsecond) level hardware message timestamps to meet advanced requirements
- Driverless design for Windows and Linux systems
- 12 channel CAN/CAN FD
- Supports DIDO x 4 and AIAO x 3
- CAN channel baud rate adjustable from 125 Kbps to 1 Mbps, and CAN FD supports a maximum of 8 Mbps
- Built in 120 ohm terminal resistor for CAN, with the resistance value configurable through software
- CAN supports Self ACK self acknowledgment configuration
- Supports blf and asc format data recording and offline/online playback
- Supports hardware time synchronization across multiple device
- Provides API based sample projects for easy secondary development
DB15 PIN
- PIN 1 CAN FD 1_Low
- PIN 2 CAN FD_GND
- PIN 3 CAN FD 2_Low
- PIN 4 CAN FD 3_Low
- PIN 5 CAN FD_GND
- PIN 6 CAN FD 4_Low
- PIN 7 CAN FD 5_Low
- PIN 8 CAN FD_GND
- PIN 9 CAN FD 6_Low
- PIN 10 CAN FD 7_Low
- PIN 11 CAN FD_GND
- PIN 12 CAN FD 8_Low
- PIN 13 CAN FD 9_Low
- PIN 14 CAN FD_GND
- PIN 15 CAN FD 10_Low
- PIN 16 CAN FD 11_Low
- PIN 17 CAN FD_GND
- PIN 18 CAN FD 12_Low
- PIN 19 CAN FD_GND
- PIN 20 CAN FD 1_High
- PIN 21 CAN FD_Shield
- PIN 22 CAN FD 2_High
- PIN 23 CAN FD 3_High
- PIN 24 CAN FD_Shield
- PIN 25 CAN FD 4_High
- PIN 26 CAN FD 5_High
- PIN 27 CAN FD_Shield
- PIN 28 CAN FD 6_High
- PIN 29 CAN FD 7_High
- PIN 30 CAN FD_Shield
- PIN 31 CAN FD_Shield
- PIN 32 CAN FD 9_High
- PIN 33 CAN FD_Shield
- PIN 34 CAN FD 10_High
- PIN 35 CAN FD 11_High
- PIN 36 CAN FD_Shield
- PIN 37 CAN FD 12_High
Pin definition
- PIN 1 DIDO_1
- PIN 2 DIDO_3
- PIN 3 DGND
- PIN 4 AIAO_1
- PIN 5 AIAO_3
- PIN 6 DIDO_2
- PIN 7 DIDO_4
- PIN 8 AGND
- PIN 9 AIAO_2
Typical applications
- Whole vehicle multi-channel CAN FD/CAN/LIN bus data acquisition
- Domain controller testing
- Various automated testing systems
Specification
| channel | 12 x CAN FD/ 4 x DIDO / 3 x AIAO |
|---|---|
| PC Interface | USB 2.0 |
| CAN Interface | DB9 |
| Driver | Driver-free design for Windows and Linux systems, ensuring system compatibility |
| Buffer | Each channel supports a transmit buffer of up to 700 CAN frames |
| CAN | Supports CAN 2.0A, B protocols, compliant with ISO11898-1 standard, with baud rate 125Kbps-1Mbps |
| CAN FD | Supports CAN FD that complies with both ISO and non-ISO standards, with baud rates from 125Kbps to 8Mbps |
| DIDO | DI: 0 ~ 40 V ; Vref: 0 ~ 3.3 V, Threshold range: VAH=(330+499*Vref)/1098 ; Val=0.455*Vref DO: Low level 0 V, high level 5 V / 12 V (use with load unsupported) |
| AIAO | AI: 0 ~ 39 V, AO: 0 ~ 30 V |
| Timestamp Accuracy | 1μs hardware message timestamp |
| Terminal Resistor | Built in 120 ohm terminal resistor, software configurable |
| * | Single channel at 1 Mbps with a 0-byte data field |
| Isolation | CAN channel DC 2500 V isolation, with an electrostatic discharge level of ±4 KV for contact discharge and ±15 KV for air discharge |
| Power Supply | 9~32 V DC power supply |
| Power Consumption | 6 W / 12 W (DO full channel push pull mode PWM output) |
| Case Material | Metal |
| Dimensions | Approx. 178 x 113 x 38 mm |
| Weight | Approx. 435 g (without packaging)/Approx. 1542 g (with packaging) |
| Operating Temperature | -40℃～80℃ |
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Environment | Keep away from corrosive gases |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
