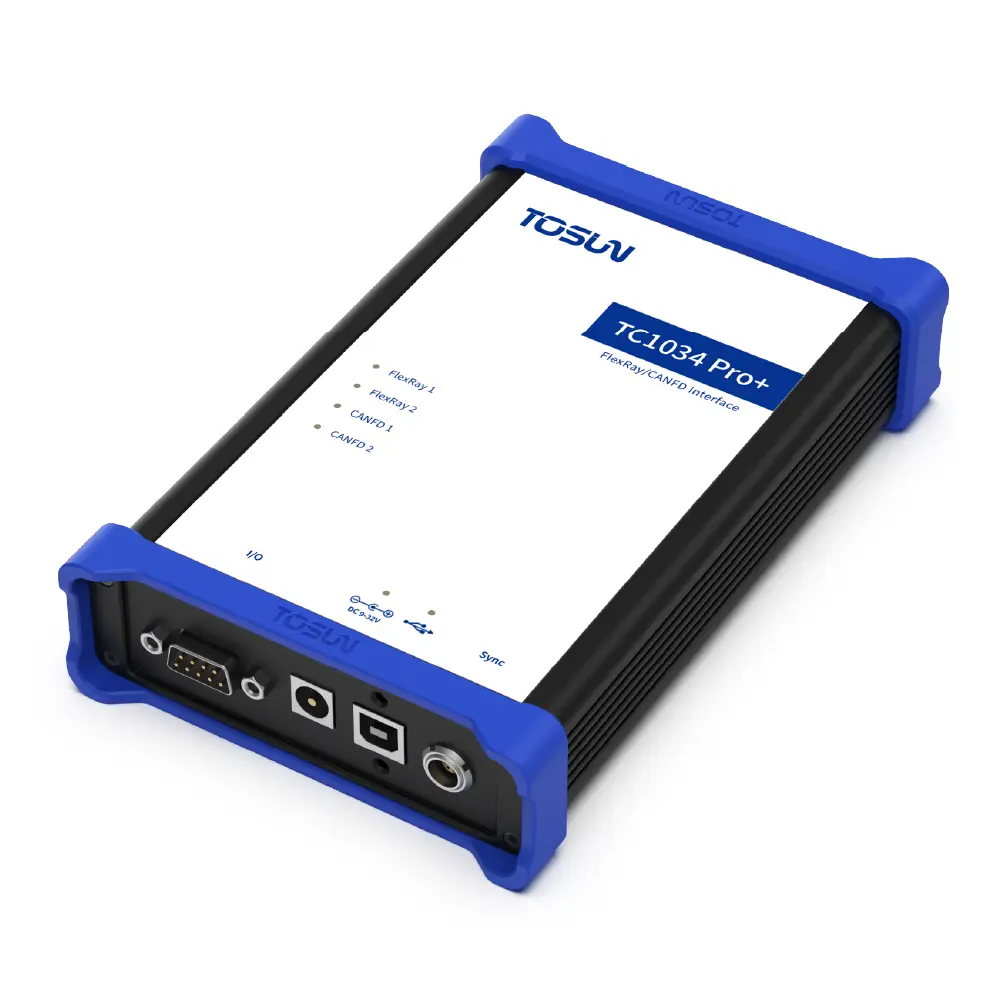

TC1034 Pro+ – 2 CAN FD / FlexRay, Multiple I/O to USB interface
The TC1034 Pro+ is a 2-channel CAN FD, 2-channel FlexRay, and I/O interface device. The CAN FD bus supports a maximum rate of 8 Mbps. The device connects to a PC via USB 2.0 and features a driver-free design for Windows, ensuring outstanding system compatibility.
- ARM64 Linux: tsdev
- HarmonyOS: tsdev
Related Products
Related products
TC1034 Pro+ Functions and parameters
Compatible with TSMaster software for loading DBC and ARXML database files. Supports CAN, CAN FD, LIN, and FlexRay network monitoring, analysis, and simulation. Advanced functions include UDS diagnostics, ECU flashing, and CCP/XCP calibration.
The secondary development APIs for Windows and Linux can support various development environments such as C++, C#, LabView, Python, etc., making it highly efficient and easy to use, and is convenient to integrate into various testing systems.
- μs (microsecond) level hardware message timestamps to meet advanced requirements
- Driverless design for Windows system

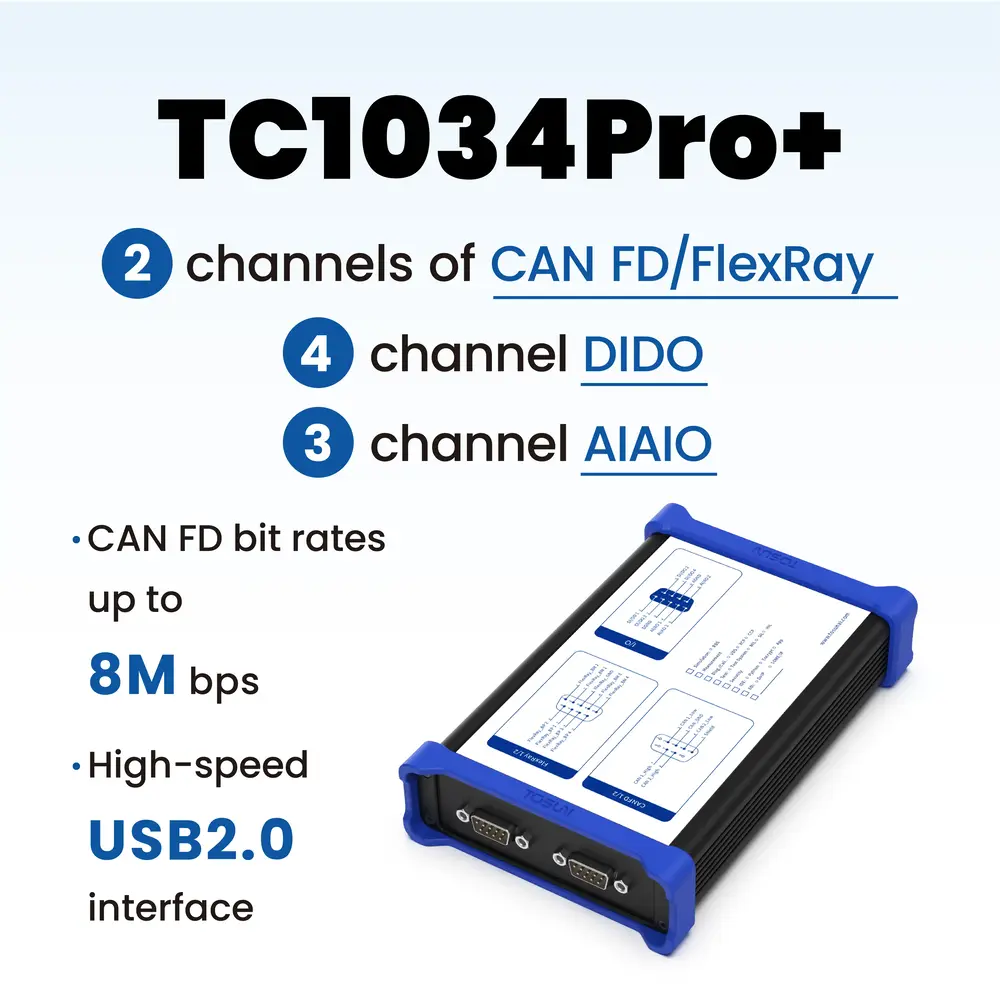

- 2-channel CAN/CAN FD, 2-channel FlexRay
- Supports DIDO *4 and AIAO *3
- CAN channel baud rate adjustable from 125Kbps to 1Mbps, and CAN FD supports a maximum of 8Mbps
- Built-in 120-ohm terminal resistor for CAN, with the resistance value configurable through software
- Built-in 100-ohm terminal resistor for FlexRay, with the resistance value configurable through software
- Auxiliary communication controller, eliminating the need to add extra nodes during cold starts
- CAN supports Self-ACK self-acknowledgment configuration
- Supports blf and asc format data recording and offline/online playback
- Supports hardware time synchronization across multiple device
- Provides API-based sample projects for easy secondary development
Pro Series Device Features:
- Self-ACK
- Active transmission of error frames
- Time synchronization box
- High-precision periodic messages
- “Disable ACK mode” supports reporting ACK errors
CAN FD 1/2
- PIN1 Flexray_BM2
- PIN2 Flexray_BM1
- PIN3 Flexray_GND
- PIN4 Flexray_BM3
- PIN5 Flexray_BM4
- PIN6 Flexray_BP2
- PIN7 Flexray_BP1
- PIN8 Flexray_BP3
- PIN9 Flexray_BP4
FlexRay 1/2
- PIN 2 CAN FD 1_Low
- PIN 3 CAN FD_GND
- PIN 4 CAN FD 2_Low
- PIN 5 CAN FD_Shield
- PIN 7 CAN FD 1_High
- PIN 8 CAN FD 2_High
I/O
- PIN 1 DIDO_1
- PIN 2 DIDO_3
- PIN 3 DGND
- PIN 4 AIAO_1
- PIN 5 AIAO_3
- PIN 6 DIDO_2
- PIN 7 DIDO_4
- PIN 8 AGND
- PIN 9 AIAO_2
Typical applications
- FlexRay Bus Flexible Analysis
- Precise Time Analysis of Bus Communication Data
- ECU Testing Analysis and Gateway Applications
Specification
| Channel | 2 x CAN FD / 2 x FlexRay / 4 x DIDO / 3 x AIAO |
|---|---|
| PC Interface | USB 2.0 interface |
| CAN FD Interface | DB9 interface |
| Driver | Driver-free design for Windows and Linux systems, ensuring system compatibility |
| Cache | Hardware cache, with each channel's transmission buffer supporting upto 1000 CAN frames |
| CAN | Supports CAN 2.0 A and B protocols, compliant with the ISO 11898-1standard, with baud rates from 125Kbps to 1Mbps |
| CAN FD | Supports CAN FD that complies with both ISO and non-ISO standards,with baud rates from 125Kbps to 8Mbps |
| DIDO | DI: 0-40V Vref: 0-3.3V,T hreshold range: VAH=(330+499*Vref)/1098; Val=0.455*Vref DO: Low level 0V, high level 5V/12V (use with load unsupported) |
| AIAO | AI：0-39V AO：0-30V |
| AI Sampling Rate | 1~1000HZ |
| AIAO Accuracy | 1% |
| Timestamp | 1μs, hardware message timestamp, can meet advanced requirements |
| Terminal Resistor | Built-in 120Ω terminal resistor for CAN, and built-in 100 Ω terminalresistor for FlexRay, configurable via software |
| * | Single channel 1Mbps, with a 0-byte data field |
| Galvanic Isolation | CAN channel DC 2500V isolation, with an electrostatic discharge levelof ±2KV for contact discharge and ±15KV for air discharge |
| Power Supply | 9~32V DC power supply |
| Power Consumption | 4W/10W (DO full-channel push-pull mode PWM output) |
| Casing Material | Metal |
| Dimension | Approx. 178*113*38mm |
| Weight | Approx. 433g (without packaging)/ Approx. 922g (with packaging) |
| Operating Temperature | -40℃ to 80℃ |
| Operating Humidity | 10% ～ 90% (non-condensing) |
| Operating Environment | Keep away from corrosive gases |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
