2 CAN/CAN FD to fiber optic tool – TO1013

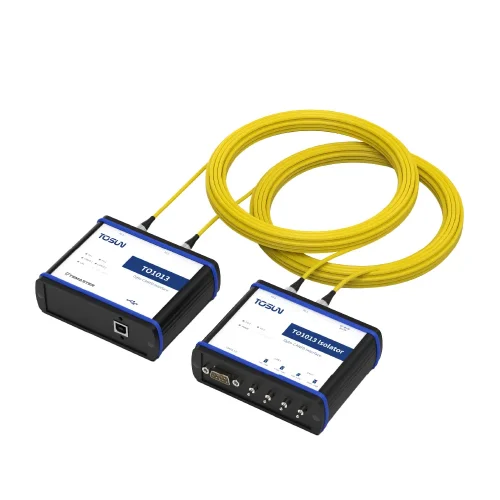

The TO1013, developed by TOSUN, is a dual-channel CAN/CAN FD to fiber optic converter, supporting CAN FD bus rates up to 8 Mbps. Utilizing fiber optic as the transmission medium, it minimizes signal loss and significantly extends transmission distance. Its superior EMI and EMC performance enhances resistance to interference, ensuring reliable communication.
- ARM64 Linux: tsdev
- HarmonyOS: tsdev
Related Products
Related products
TO1013 Functions and parameters
Integrated with TSMaster software, the TO1013 allows for easy loading of DBC and ARXML database files, simplifying CAN bus data monitoring, analysis, and simulation.
It also offers advanced features such as UDS diagnostics, ECU flashing, and CCP/XCP calibration.
The product comes with development APIs for both Windows and Linux, supporting multiple languages like C++, C#, LabView, and Python, making it easy to integrate into various test systems and environments.
- Uses latest CAN FD bus opto-isolator Equipped with built-in ESD and surge protectors
- Automotive-grade design, supporting dbc files, a2l files, blf files, and asc files
- Supports blf and asc format data recording and offline/online playback
- Supports UDS diagnostics and CCP/XCP calibration
- Supports UDS based Bootloader flashing
- Supports secondary development interfaces for
- Windows and Linux systems
- CAN channel capacitance to ground is configurable at 22pF/470pF using a toggle switch
- PIN2 CAN FD1_ Low
- PIN3 CAN FD_GND
- PIN4 CAN FD2_ Low
- PIN5 CAN FD_Shield
- PIN7 CAN FD1_ High
- PIN8 CAN FD2_ High
Typical applications
- Product EMC testing
- CAN bus transmission under other complex electromagnetic environments
Specification
| channel | 2 x CAN FD |
|---|---|
| PC End | USB 2.0 interface |
| CAN End | DB9 interface |
| Driver | Driver-free design for Windows and Linux systems, ensuring system compatibility |
| Buffer | Each channel supports a transmit buffer of up to 1000 CAN frames |
| CAN | Supports CAN 2.0A, B protocols, compliant with ISO11898-1 standard, with baud rate 125Kbps-1Mbps |
| CAN FD | Supports CAN FD that complies with both ISO and non-ISO standards, with baud rates from 125Kbps to 8Mbps |
| Timestamp Accuracy | 1μs, hardware message timestamp |
| Terminal Resistor | Built-in 60/120-ohm terminal resistor, with the resistance value configurable using a toggle switch |
| Capacitance to Ground | CAN channel capacitance to ground is configurable at 22pF/470pF using a toggle switch |
| * | Single channel at 1 Mbps with a 0-byte data field |
| Isolation | Opto-isolation |
| Power Supply | USB power supply + DC power supply (12V) |
| Power Consumption | 2.5W |
| Case Material | Aluminum alloy |
| Dimension | 109 x 97 x 35mm |
| Weight | Approx. 429g (without packaging)/Approx. 1132g (with packaging) |
| Operating Temperature | -40°C to 80°C |
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Environment | Keep away from corrosive gases |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
