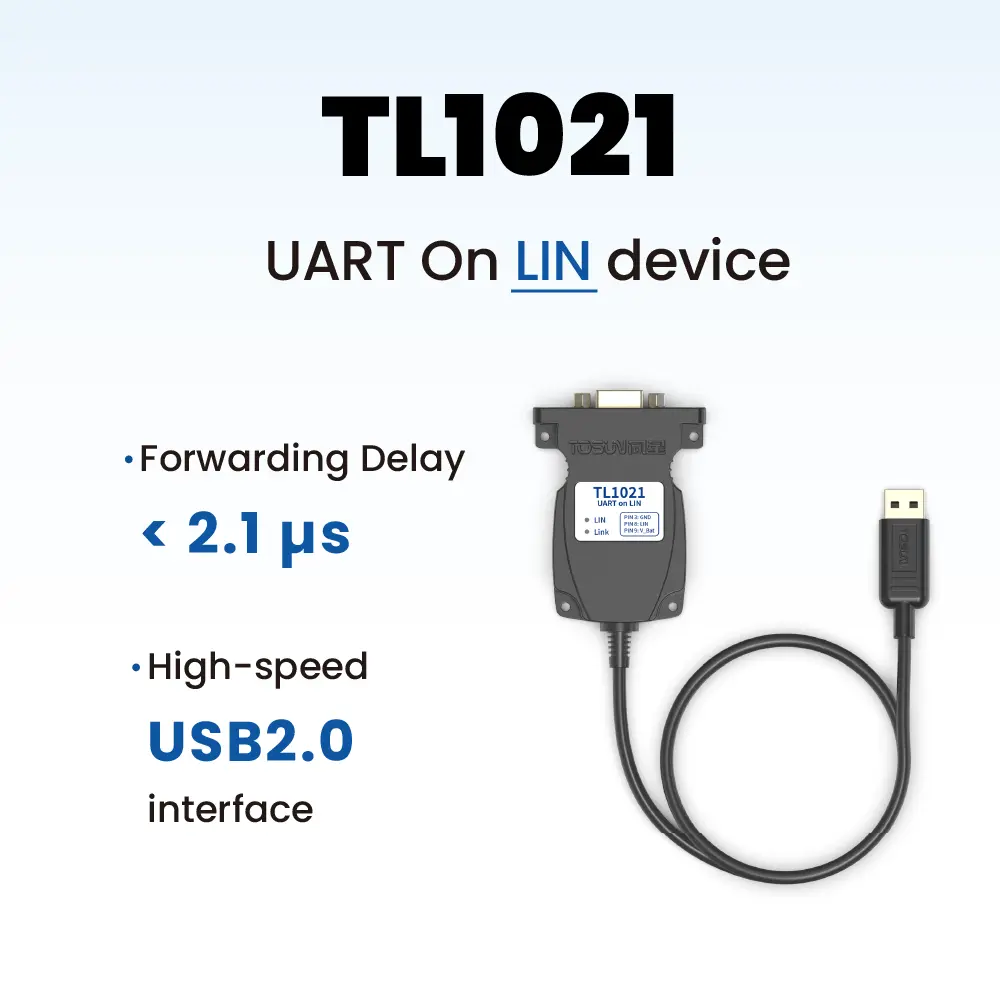

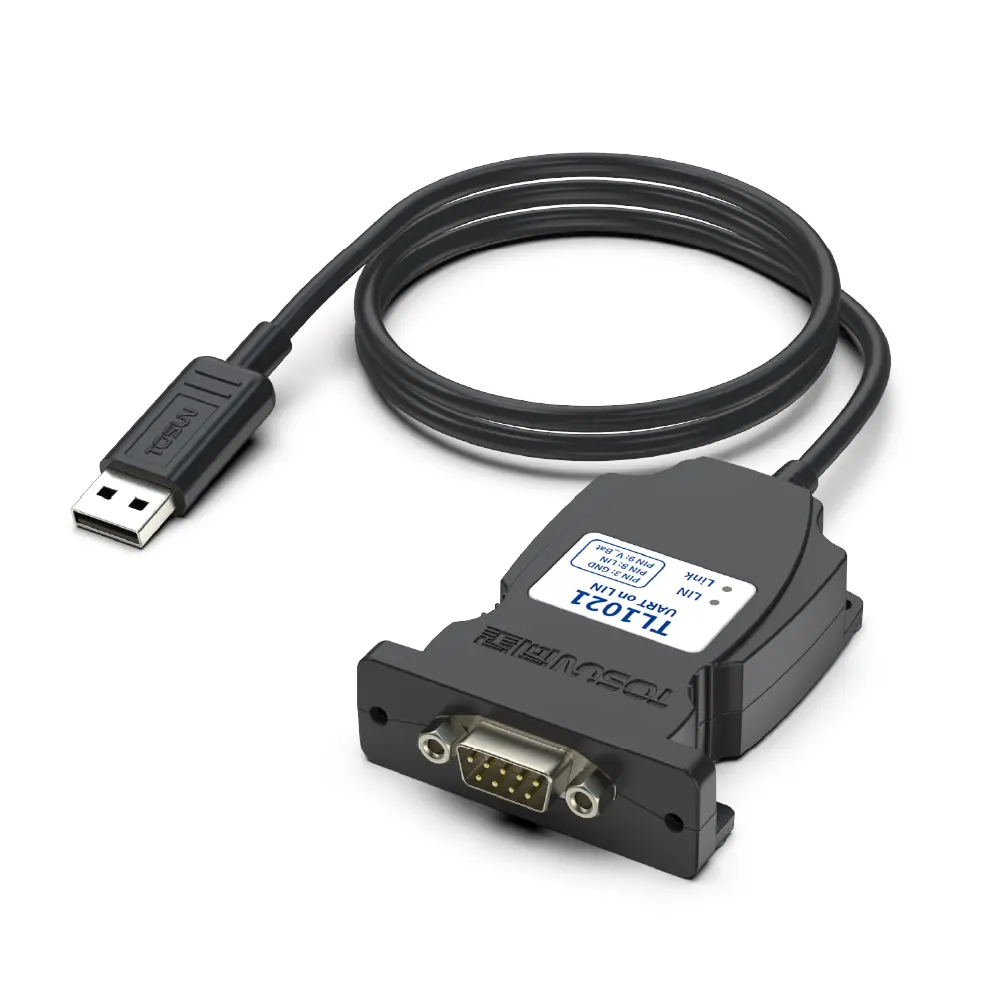

TL1021 – Single Channel UART to LIN Interface
The TL1021 is a UART On LIN device designed to provide a “transparent data transmission” mechanism. This means that the data format and content at the sending and receiving ends remain consistent, with only the transmission medium switching from UART to the LIN bus physical layer.
Related Products
Related products
TL1021 Functions and parameters
- Input Interface: Standard UART, used for data input and output
- Output Interface: Standard LIN bus interface, used for transmitting LIN signals
- Data Processing: Convert the received UART data into LIN physical layer signals and transmit them via the LIN bus.
What Is a UART On LIN Device ?
A UART On LIN device is a device that transmits UART data using the LIN physical layer.
What Can a UART On LIN Device Do ?
- Meet specific industry standards
Typical applications
Specification
| Interface | 1 * UART (USB2.0), 1 * LIN |
|---|---|
| Driver | Driverless design for Windows system, offering excellent system compatibility |
| UART Baud Rate | Maximum 20Kbps |
| Forwarding Delay | < 2.1 μs |
| Power Supply | USB power supply |
| Power Consumption | 1W |
| Casing Material | Plastic |
| Dimension | Approx. 94 x 48 x 24mm |
| Weight | Approx. 77g (without packaging)/Approx. 122g (with packaging) |
| Operating Temperature | -40℃~80℃ |
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Environment | Keep away from corrosive gases |
Caution! Avoid Short Circuits Before using the equipment, carefully review the pin information in the product user manual.
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
Caution! Damage from Electrostatic Discharge (ESD) Beware! Electrostatic discharge (ESD) can potentially damage or destroy components on the card. Take preventive measures to avoid ESD and protect the components.
