TTS1026P – 1/6 channel CAN FD/LIN bus device

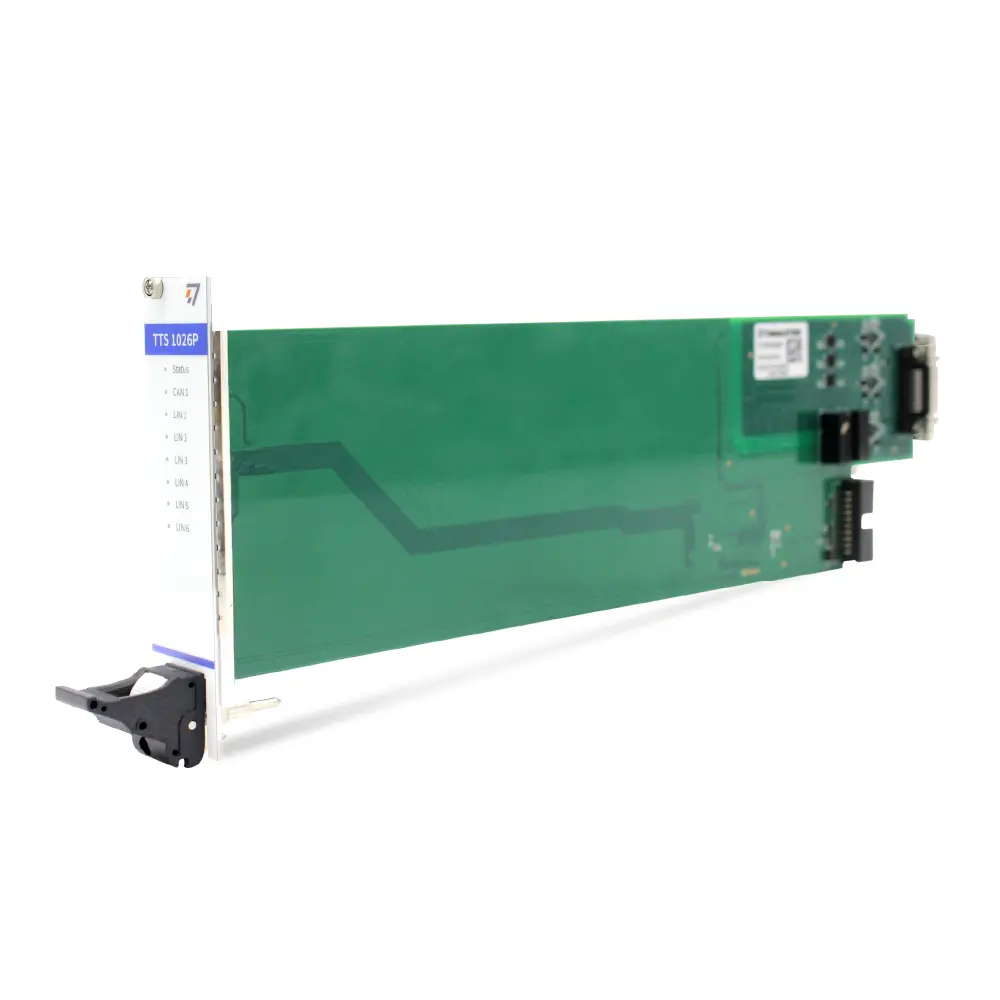

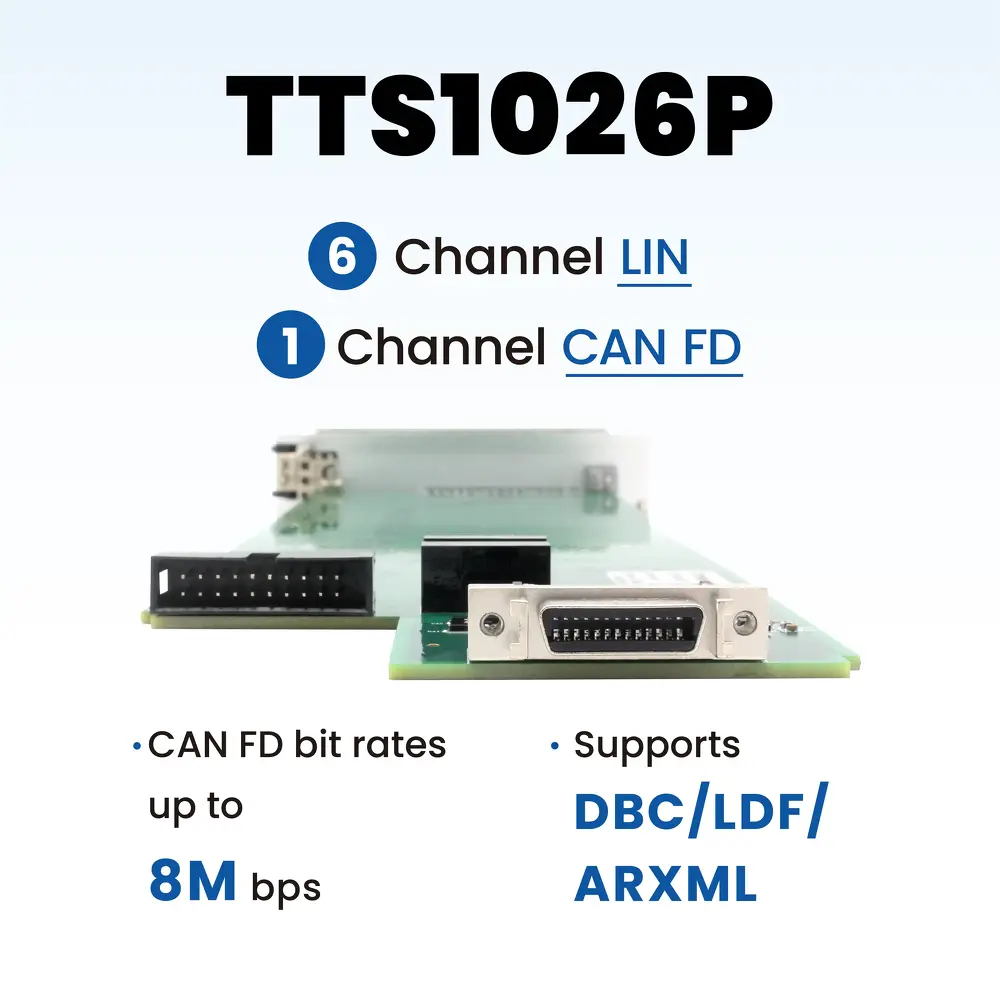

TTS1026P is a 1 channel CAN FD and 6 channel LIN bus device launched by TOSUN. It adopts a chassis slide rail installation method, making it easy to integrate into the TOSUN TTS system.
- ARM64 Linux: tsdev
- HarmonyOS: tsdev
Related Products
Related products
TTS1026P Functions and parameters
The CAN FD1 channel is connected to the board card control bus, allowing direct control of the boards within the same bus network through the CAN FD1 channel. The CAN FD1 terminal resistor uses the resistor mounted on the TTS0001 slide rail slot, which is not software-controlled. Other parameters are the same as the TOSUN TC1026P device.
With the powerful TSMaster software, it supports loading DBC, ARXML, LDF etc. database files, making it very convenient to monitor, analyze, and simulate CAN FD/LIN bus data, and it also supports functions such as UDS diagnostics, ECU flashing, CCP/XCP calibration, etc.
- μs (microsecond) level hardware message timestamps to meet advanced requirements
- CAN channel DC 2500V isolation
- CAN channel baud rate adjustable from 125 Kbps to 1 Mbps, and CAN FD supports a maximum of 8 Mbps
- The LIN bus primary and secondary nodes can be configured via software
- Supports blf and asc format data recording and offline/online playback
- Supports UDS diagnostics and CCP/XCP calibration
- Supports UDS based Bootloader flashing
- Supports LIN bus based UDS diagnostics
- Supports information security testing
- Supports secondary development interfaces for Windows and Linux systems
- Capable of loading all paid licenses for TSMaster
Hardware Interface
- Pin 1 VCC_LIN 1
- Pin 2 CGND
- Pin 3 LIN 1
- Pin 4 VCC_LIN 2
- Pin 5 CGND
- Pin 6 LIN 2
- Pin 7 VCC_LIN 3
- Pin 8 CGND
- Pin 9 LIN 3
- Pin 10 VCC_LIN 4
- Pin 11 CGND
- Pin 12 LIN 4
- Pin 14 VCC_LIN 5
- Pin 15 CGND
- Pin 16 LIN 5
- Pin 17 VCC_LIN 6
- Pin 18 CGND
- Pin 19 LIN 6
Typical applications
Specification
| Channel | 6 x LIN / 1 x CAN FD |
|---|---|
| PC Interface | Converted to USB 2.0 via backplane slot |
| Communication Port Interface | SCSI 26 Pin Interface |
| Driver | Driver-free design for Windows and Linux systems, ensuring system compatibility |
| Buffer | Each channel supports a transmit buffer of up to 1000 CAN frames |
| CAN | Supports CAN 2.0A, B protocols, compliant with ISO11898-1 standard, with baud rate 125 Kbps to 1 Mbps |
| CAN FD | Supports CAN FD that complies with both ISO and non-ISO standards, with baud rates from 125 Kbps to 8 Mbps |
| LIN | Supports LIN 1.3/2.0/2.1/J2602, baud rate 0 to 20 Kbps |
| Schedule Table | Supports LDF files and running schedule tables, and also allows for self configuration of schedule tables |
| Timestamp Accuracy | 1 μs hardware message timestamp |
| Relay Type | Magnetic latching relay |
| * | Single channel at 1 Mbps with a 0 byte data field |
| Isolation | CCAN channel DC 2500 V isolation |
| Power Supply | USB power supply, external power supply is needed for LIN communication |
| Power Consumption | 2 W |
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Environment | keep away from corrosive gases |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
