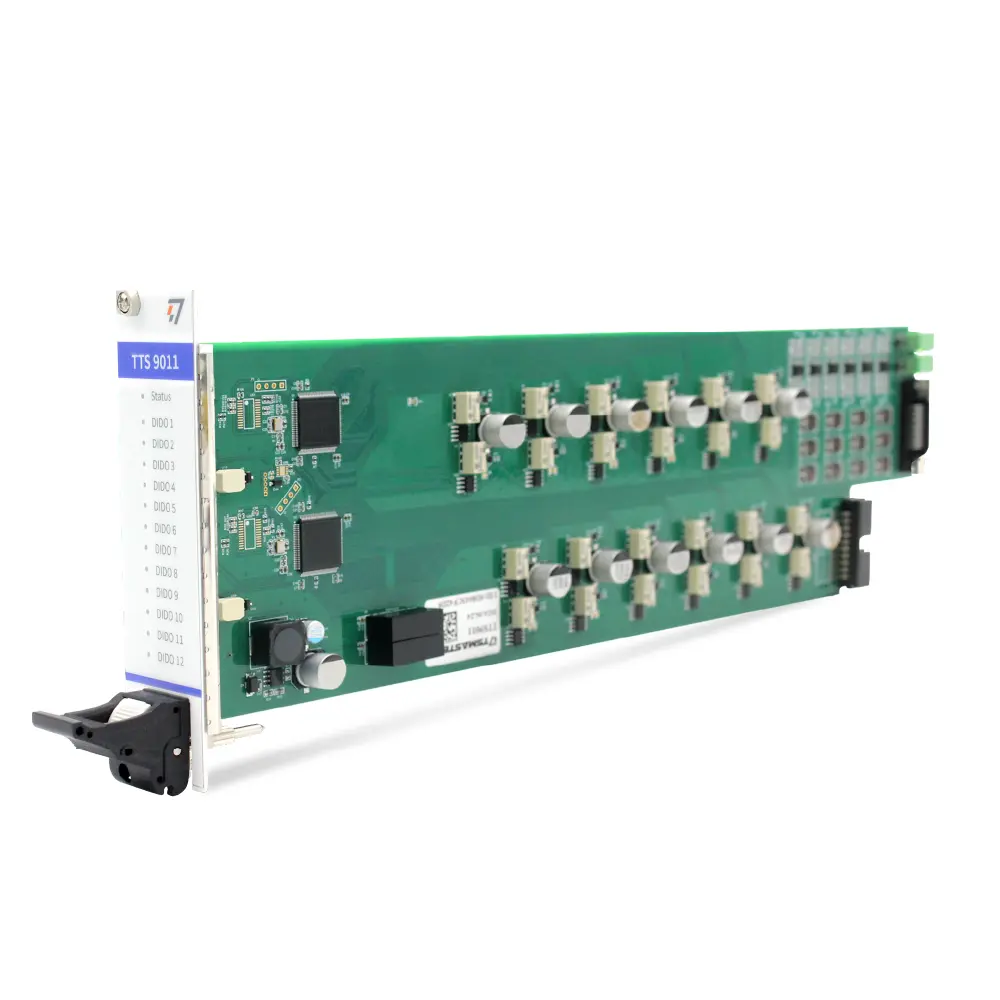

TTS9011 – Digital I/O Board

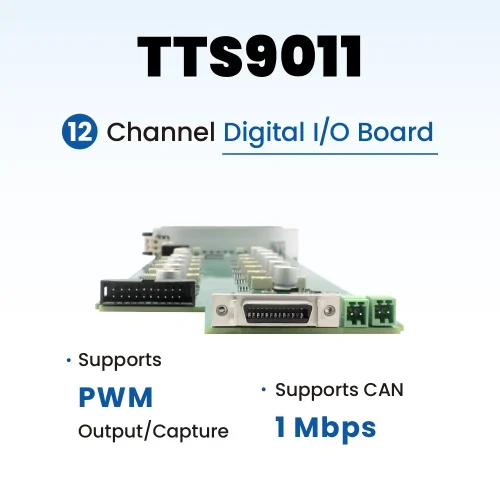

TTS9011 is a digital input/output board card with a total of 12 channels. All channels can operate inde pendently for outputting high and low levels, collecting high and low levels, outputting PWM, and col lecting PWM.
Related Products
Related products
TTS9011 Functions and parameters
Hardware Interface
| Pin 1 | CH 1 | Pin 13 | CGND |
| Pin 2 | CH 2 | Pin 14 | CGND |
| Pin 3 | CH 3 | Pin 15 | CGND |
| Pin 4 | CH 4 | Pin 16 | CGND |
| Pin 5 | CH 5 | Pin 17 | CGND |
| Pin 6 | CH 6 | Pin 18 | CGND |
| Pin 7 | CH 7 | Pin 19 | CGND |
| Pin 8 | CH 8 | Pin 20 | CGND |
| Pin 9 | CH 9 | Pin 21 | CGND |
| Pin 10 | CH 10 | Pin 22 | CGND |
| Pin 11 | CH 11 | Pin 23 | CGND |
| Pin 12 | CH 12 | Pin 24 | CGND |
Typical applications
Specification
| Number of Channels | 12 (shared for input/output) |
|---|---|
| Operating voltage | 12 V |
| Static power consumption | 2 W |
| Communication control | CAN 1 Mbps |
| Relay type | Magnetic latching relay |
| Board card height | 3 U |
| Mounting method | Chassis slide rail |
Caution! Avoid Short Circuits Before using the equipment, carefully review the pin information in the product user manual.
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
Caution! Damage from Electrostatic Discharge (ESD) Beware! Electrostatic discharge (ESD) can potentially damage or destroy components on the card. Take preventive measures to avoid ESD and protect the components.
